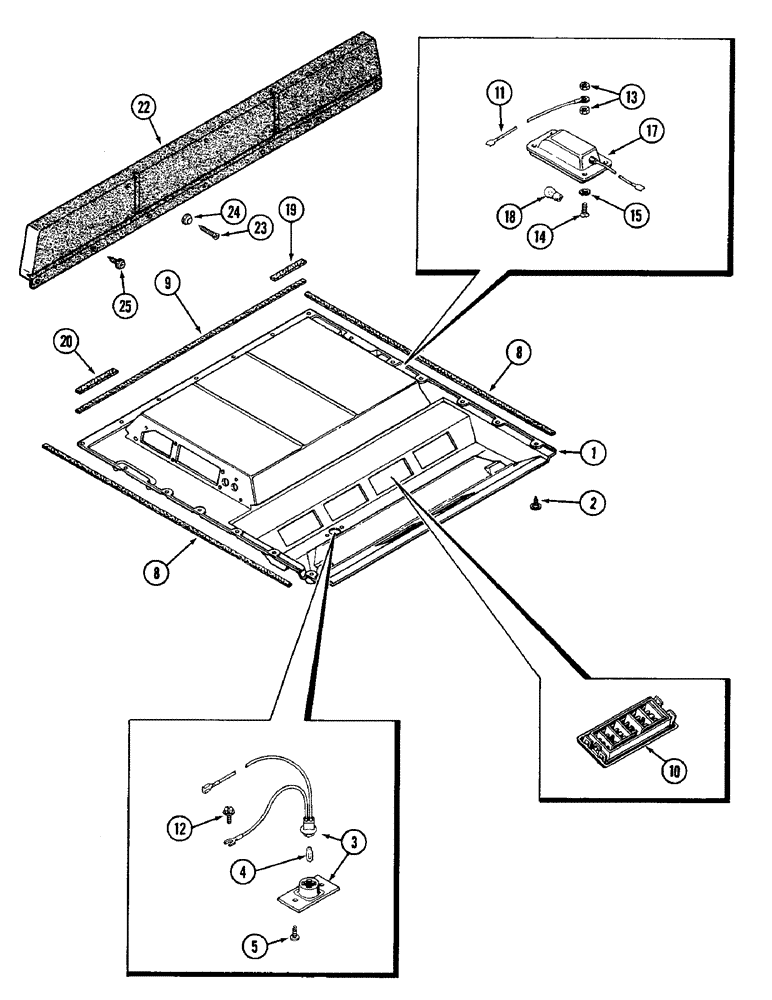

Запчасти Case IH 2096 (9-428) - CAB, HEADLINER AND LOUVERS (09) - CHASSIS/ATTACHMENTS

1

F97369

ROOF

HEADLINER - cab

1шт.

2

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - Phillips special, no. 10-16 x 3/4 inch

12шт.

3

F98279

INTERIOR LIGHT

LAMP ASSEMBLY - courtesy, Includes: Ref. 4

1шт.

4

W10478

LAMP

BULB - lamp, no. 194

1шт.

5

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - Phillips self-tapping, no. 10-24 x 3/4 inch

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - headliner, side (Order F64119) (Reference no. F64735)

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - headliner, rear (Order F64119) (Reference no. A64792)

1шт.

F64119

SEALING STRIP

SEAL - headliner, 100 feet (33 M) (Cut to desired length)

1шт.

10

L109555

GUARD

LOUVER - deflection, air

6шт.

11

F64731

CABLE PULLING GRIP

WIRE - dome light

1шт.

12

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - no. 10-16 x 1/2 inch

1шт.

13

129-16

NUT,#8-32

5шт.

14

171-238

SCREW,Sl Flat Hd, #8 - 32 x 5/8"

- no. 8-32 x 5/8 inch

4шт.

15

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

1шт.

17

F89772

LAMP

ASSEMBLY - dome, Includes: Ref. 18

1шт.

18

B50217

BULB

- lamp, no. 93

1шт.

19

F64854

SEAL - foam, 6 inch (152 MM) (Order D70611)

1шт.

20

F64855

SEAL - foam, 7 inch (178 MM) (Order D70611)

1шт.

A181672

GRILLE KIT - speaker, Includes: Ref. 22 - 25

1шт.

22

A180980

GRILLE

- speaker

1шт.

23

187-1924

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/2"

SCREW - oval head Phillips, no. 10 x 1-1/2 inch

3шт.

24

F64315

WASHER

- trim

3шт.

25

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - retainer

7шт.
