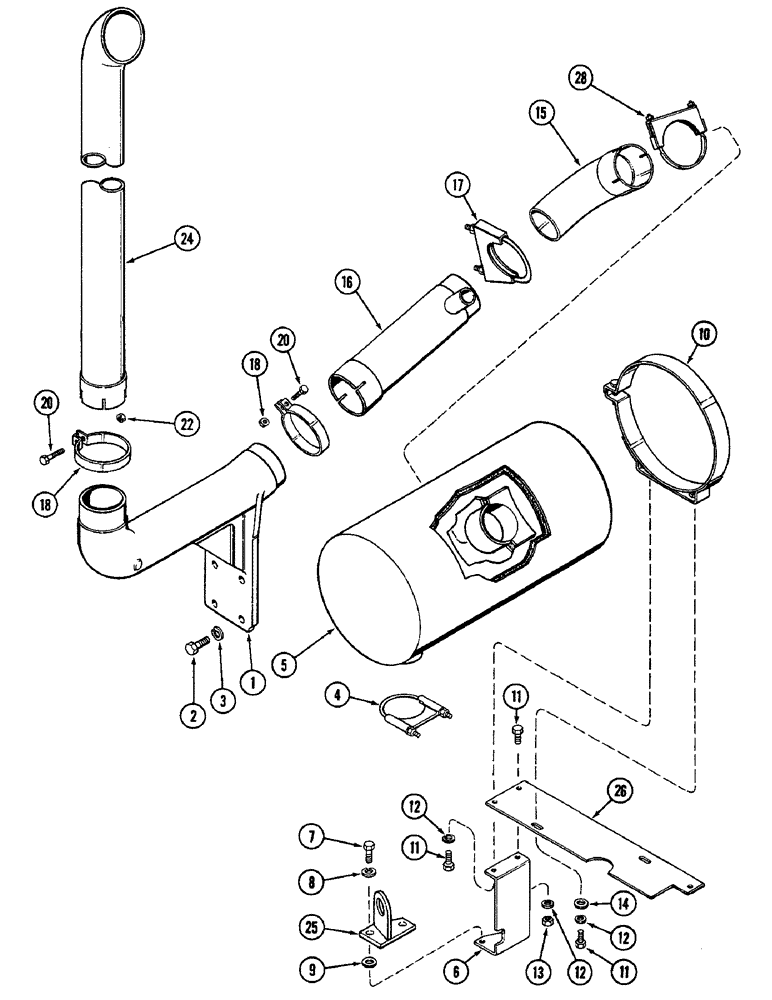

Запчасти Case IH 2096 (2-012) - MUFFLER AND EXHAUST SYSTEM, 6TA-590 DIESEL ENGINE (02) - ENGINE

1

A166542

FITTING

ELBOW - exhaust

1шт.

2

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, M12 x 40 MM

4шт.

3

892-1112

LOCK WASHER,M12

WASHER - lock, M12

4шт.

4

A176450

CLAMP

- pipe

1шт.

5

A173700

MUFFLER

- exhaust (Replaces A171313)

1шт.

6

A181141

BRACKET

- mounting, muffler (Replaces A170489)

1шт.

7

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 MM

1шт.

7

892-1112

LOCK WASHER,M12

BOLT - hex, x 35 MM M12

1шт.

8

892-1112

LOCK WASHER,M12

WASHER - lock, M12

2шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

10

A173223

MOUNTING CLIP

CLAMP - muffler (Replaces A171440)

1шт.

11

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

12

892-1110

LOCK WASHER,M10

WASHER - lock, M10

3шт.

13

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

15

A172789

EXHAUST SYSTEM PIPE

ELBOW - exhaust pipe (Replaces A171480)

1шт.

16

A180967

PIPE

EJECTOR - exhaust pipe (Replaces A171481)

1шт.

17

A145577

CLAMP

- muffler

1шт.

18

A180654

CLAMP

- seal, exhaust (Replaces A166656)

2шт.

20

514-707

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

- hex, M10 x 50 MM

2шт.

22

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

2шт.

24

A180119

PIPE

EXTENSION - exhaust (Replaces A166715)

1шт.

25

J903173

BRACKET

- lifting, rear

1шт.

26

A180931

SUPPORT

- mounting, air cleaner and muffler (Replaces A177379)

1шт.

27

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

28

A177883

CLAMP

- exhaust elbow

1шт.
