Запчасти Case IH 2096 (9-418) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS

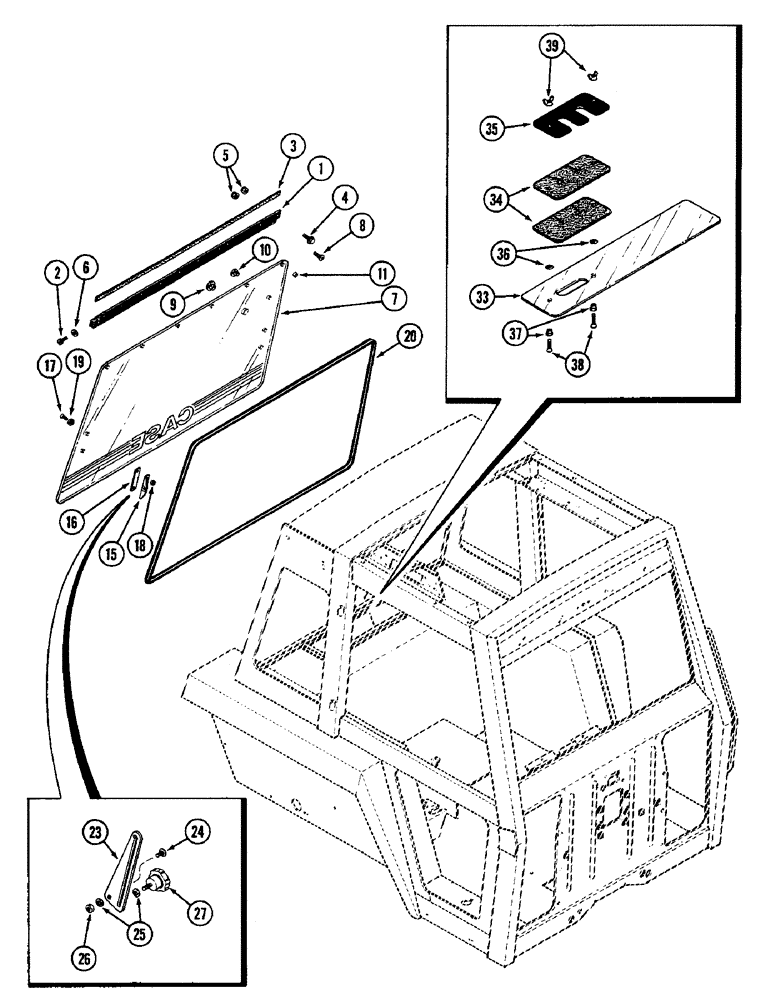

Схема запчастей Case IH 2096 - (9-418) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS
11
37
15
4
23
1
38
36
34
5
7
16
8
25
27
6
20
17
35
18
2
26
24
9
33
10
39
3
19

Артикул

Название

Примечание

Количество

1

F64640

HINGE

ASSEMBLY - cab (Order F66132)

1шт.

2

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - slotted hex, no. 10-32 x 3/4 inch

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - hinge (Order F64119)

1шт.

F64119

SEALING STRIP

SEAL - foam, 100 feet (33 M) (Cut to desired length)

1шт.

4

163-13

SCREW,Hex, #10 - 24 x 3/4"

- hex washer head, no. 10-24

10шт.

5

F45165

SPECIAL NUT,#10-24

NUT - hex special, black, no. 10-24

10шт.

6

195-513

WASHER,#10

- flat, 7/32 x 7/16 x 1/16 inch (6 x 11 x 2 MM)

2шт.

7

REF

INSTRUCTION

GLASS - window, rear (See Figure 9-422)

1шт.

8

182-584

SCREW,Cross Pan Hd, #10-24 x 3/4"

- oval head, no. 10-24 x 3/4 inch

6шт.

9

F66089

PLUG

- window

1шт.

10

F66090

PLUG

- window

1шт.

11

F66023

SPACER

-, Serial Range: hinge-glass

6шт.

15

F64138

BRACKET

- arm, regulator (Replaces F66004)

2шт.

16

F64140

SPACER

- bracket

2шт.

17

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- oval head, no. 10-24 x 3/4 inch

4шт.

18

F45165

SPECIAL NUT,#10-24

NUT - hex special, no. 10-24 hex

4шт.

19

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

4шт.

20

F64677

SEAL

SEAL - window (Order F64677 and, Serial Range: cut-length)

1шт.

IF SEAL IS ON GLASS USE F64499. 23-MAY-96

1шт.

23

F64779

REGULATOR

ARM - regulator, window opening

2шт.

24

111-132

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

25

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)

2шт.

26

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

27

F64253

KNOB

- regulator

2шт.

A163882

WINDOW KIT - lower rear (Machinery item), Includes: Ref. 33 - 39

1шт.

33

A163883

WINDOW

- rear, lower

1шт.

34

A165354

SEAL

- rear window, lower (Order A163882)

2шт.

35

A165352

PLATE

- rear window, lower

1шт.

36

A165523

FASTENER

-, Serial Range: spacer-window

2шт.

37

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- window

2шт.

38

179-159

SCREW,Cross Oval Hd, #10 - 24 x 1"

- Phillips head, no. 10-24 x 1 inch

2шт.

39

129-500

WING NUT,#10-32

NUT - no. 10-24 wing

2шт.

Выбрано товаров: 32
