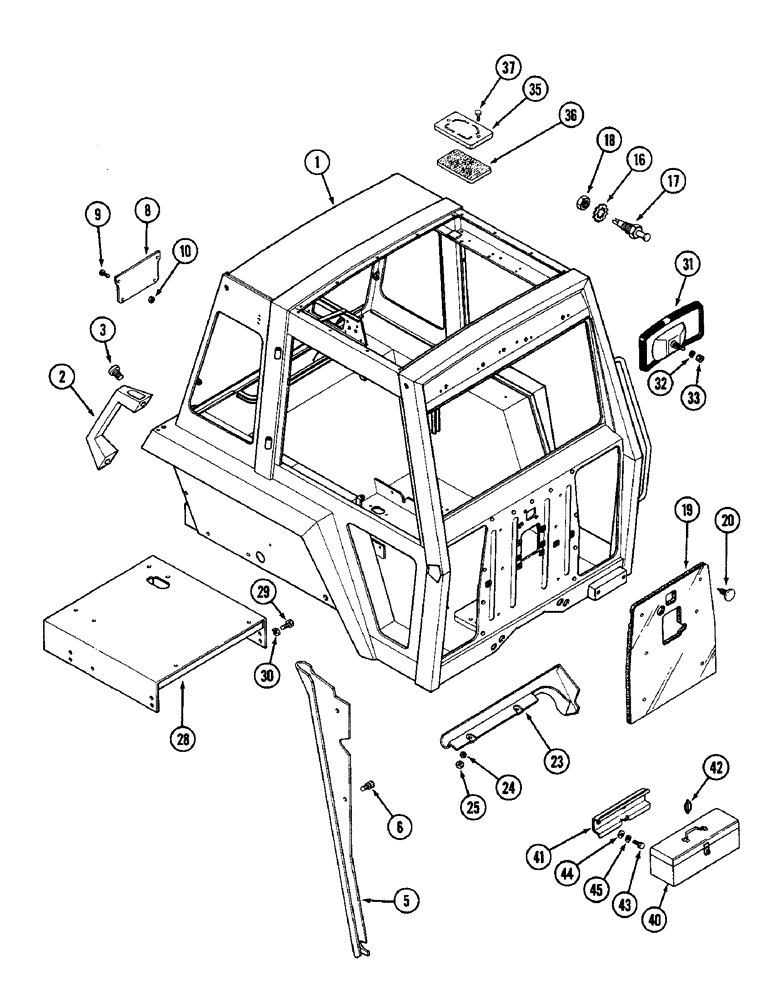

Запчасти Case IH 2096 (9-412) - CAB ASSEMBLY AND ATTACHING PARTS (09) - CHASSIS/ATTACHMENTS

F98348

CAB

- with heater, air conditioning and radio speaker and antenna (Machinery item)

1шт.

F98348 CAB INCLUDES PADDING, WINDOWS A/C & HEATER - DOES NOT INCLUDE SEAT, CONSOLE OR STEERING WHEEL. 23-MAY-96

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

Order glass and moulding from Figure 9-422.

1шт.

2

F64547

HANDLE

- rear

2шт.

3

182-586

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

BOLT - pan head, 1/4 NC x 1-1/2 inch

4шт.

5

F64614

COVER ASSY

COVER - harness

1шт.

6

F64646

PIN

- clinch

2шт.

8

A149306

COVER

- rear, fuel tank water trap opening

1шт.

9

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- slotted pan head, no. 10-24 x 1/2 inch

4шт.

10

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - Keps, no. 10-24

4шт.

16

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER - internal and external lock, 5/16 inch

1шт.

17

F63895

SWITCH

- dome light, door opening

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

A167626

LINING

PAD - noise, firewall

1шт.

20

A166346

FASTENER

- pad, firewall

6шт.

23

F64719

COVER

- harness, wire

1шт.

24

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 MM)

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

28

A176205

CHANNEL

- seat base (Cloth and air/oil seat)

1шт.

29

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

31

A177462

MIRROR

ASSEMBLY - rear view, Includes: Ref. 32 and 33

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

F64989

COVER ASSY

COVER - port, air/oil seat

1шт.

36

F66075

SEAL

- cover

1шт.

37

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

40

A181436

TOOL BOX

BOX, TOOL (Available for cab serial no. 12104308 and after) (Machinery item)

1шт.

41

A181434

SUPPORT

BRACKET - mounting, tool box

1шт.

42

A30338

PIN

- lock, klick

1шт.

43

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

44

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (14 x 27 x 2 mm)

2шт.

45

192-63

LOCK WASHER,1/2"

1/2"

2шт.
