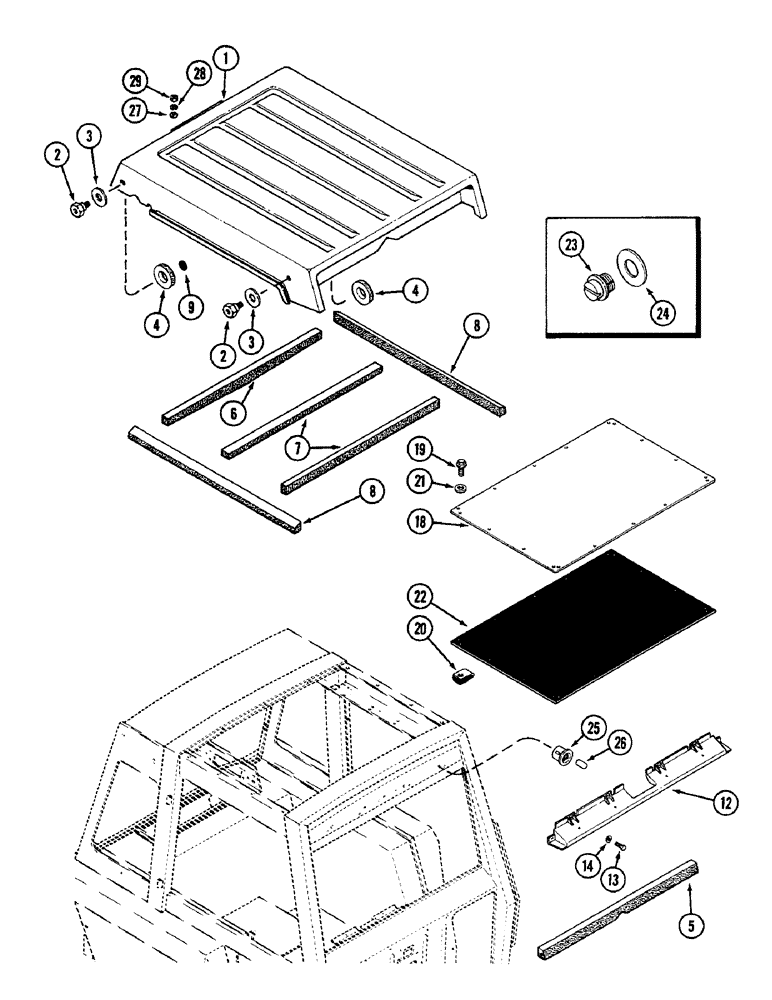

Запчасти Case IH 2096 (9-410) - CAB AND ROPS FRAME, ROOF CAP (09) - CHASSIS/ATTACHMENTS

1

A177245

ROOF

CAP - roof, cab (White)

1шт.

1

A181470

CAP

- roof, cab (Red)

1шт.

2

A163030

BOLT

- cap, cab roof

4шт.

3

A163031

WASHER

- retaining, roof cap

4шт.

4

A166399

WASHER

- retaining, roof cap

4шт.

5

A166496

FOAM

- cap, front

1шт.

6

A166493

FOAM

- cap, rear

1шт.

7

A166494

FOAM

- cap, center (Order D71360, cut to desired length)

2шт.

8

A166495

FOAM

- cap, side

2шт.

9

A177335

WASHER

- retaining, roof cap

2шт.

12

F66024

SUPPORT

CHANNEL - lamp support, front

1шт.

13

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex, 1/4 NC x 1/2 inch

6шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

18

F64316

ROOF

- cab (Cab only)

1шт.

19

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

BOLT - hex washer head, 1/4 NC x 1 inch (Cab only)

18шт.

20

131-825

NUT,Tinn, U, 1/4"-20

- U type speed, 1/4 inch (Cab only)

18шт.

21

F64531

SEALING WASHER

WASHER - sealing (Cab only)

18шт.

22

F64781

SEAL

- roof, foam (Cab only)

1шт.

23

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

24

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- plug

4шт.

25

F64712

BUSHING

- terminal

8шт.

26

F64483

COVER

CAP - terminal

8шт.

27

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
