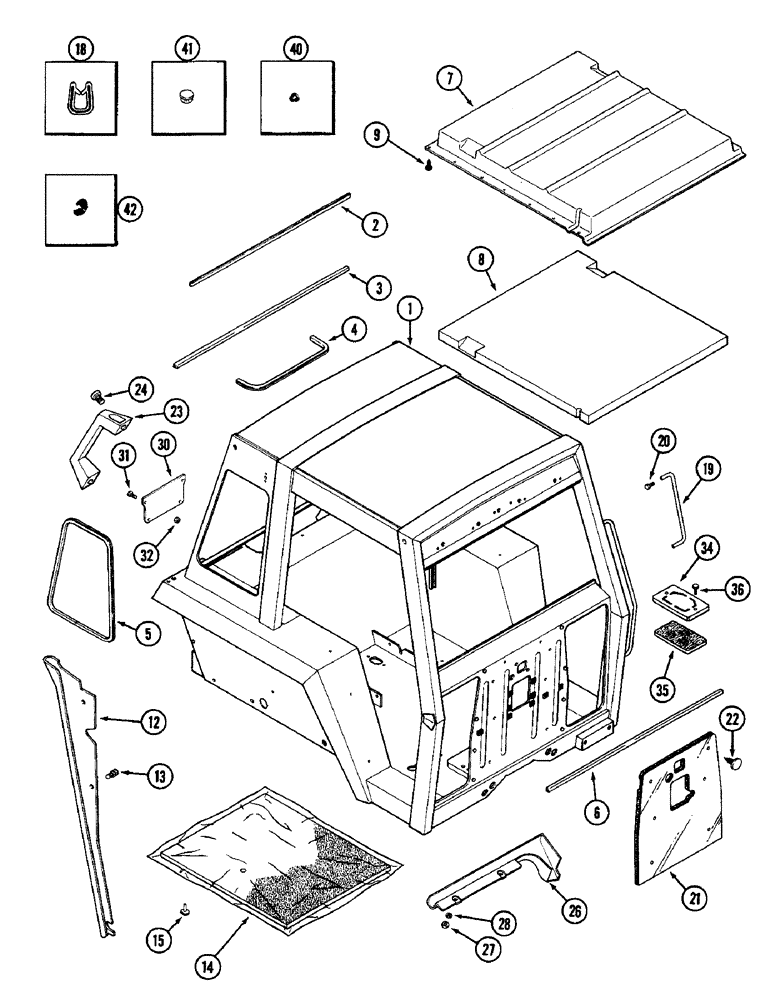

Запчасти Case IH 2096 (9-408) - FOUR POST PROTECTIVE FRAME (09) - CHASSIS/ATTACHMENTS

F98323

FRAME

ASSEMBLY - protective (Machinery item), Includes: Ref. 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - added (Order F98325)

1шт.

2

NSS

NOT SOLD SEPARAT

MOULDING - rear window (Order F64277)

1шт.

3

NSS

NOT SOLD SEPARAT

MOULDING - rear window (Order F64277)

1шт.

4

NSS

NOT SOLD SEPARAT

MOULDING - horizontal window (Order F64277)

1шт.

5

NSS

NOT SOLD SEPARAT

MOULDING - rear side window (Order F64277)

2шт.

6

NSS

NOT SOLD SEPARAT

MOULDING - front window, 49-1/2 inch (1257 MM) (Order F64277)

1шт.

7

F64803

PADDING

HEADLINER - ROPS, Includes: Ref. 8

1шт.

8

F64804

FOAM

- headliner

1шт.

9

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, special

19шт.

12

F64614

COVER ASSY

COVER - harness

1шт.

13

F64646

PIN

- clinch

2шт.

14

F66048

FLOOR MAT

MAT - under floor

1шт.

15

F64518

RETAINER

- mat

11шт.

18

F64277

SEAL

MOULDING - window, 50 feet roll (15 M)

1шт.

19

A143834

HANDLE

- mounting

1шт.

20

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

(Order 1-113-103 bolt and 1-195-521 washer) Hex Flg, 5/16"-18 x 3/4", Serr

2шт.

21

A167626

LINING

PAD - firewall

1шт.

22

A166346

FASTENER

- pad, firewall

6шт.

23

F64547

HANDLE

- fender, rear

2шт.

24

182-586

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

BOLT - pan head, 1/4 NC x 1-1/2 inch

4шт.

26

F64719

COVER

- harness, wire

1шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

28

195-124

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 MM)

7шт.

30

A149306

COVER

- hole, water-trap

1шт.

31

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, 1/4 NC x 1-1/2 inch

4шт.

32

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex Keps, no. 10 NC

4шт.

34

F64989

COVER ASSY

COVER - port, air/oil seat

1шт.

35

F66075

SEAL

- cover

1шт.

36

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

40

353-3

PLUG,Cap, .302" OD

CAP - plug

4шт.

41

353-422

PLUG,Dome, 1.250" hole, Nylon

Heyco Dome, 1.250" hole, Nylon

2шт.

42

353-586

PLUG - heyco snap, 1-1/2 inch

1шт.
