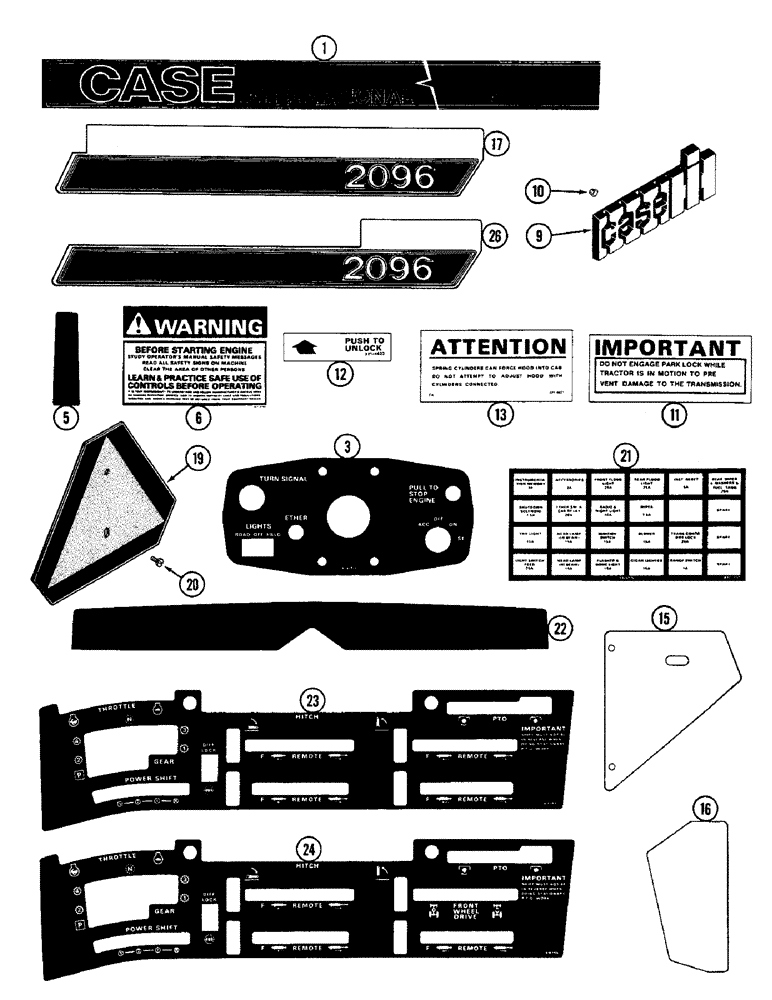

Запчасти Case IH 2096 (9-394) - TRACTOR DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

A67646

DECAL KIT - tractor, Includes: Ref. 1 - 16

1шт.

A67646 DECAL KIT - ORDER COMPONENTS 23 - MAY-96

1шт.

1

A181385

DECAL

- hood stripe, right hand

1шт.

1

A181386

DECAL

- hood stripe, left hand

1шт.

3

A169264

DECAL

- panel, control

1шт.

5

321-4142

DECAL

- sight line (On hood)

1шт.

6

321-3705

DECAL

- starting instructions

1шт.

9

A181437

EMBLEM CASE/IH

MEDALLION - trade mark, Case IH

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - medallion retaining, self-tapping, 1/4 inch

2шт.

11

321-5264

DECAL

- park lock

1шт.

12

321-4622

DECAL

- unlatch, hood

1шт.

13

321-4621

DECAL

- adjust, tilt hood

2шт.

15

A181392

DECAL

- rear fender, RH rear

1шт.

15

A181391

DECAL

- rear fender, LH rear

1шт.

16

A181390

DECAL

- rear fender, RH front

1шт.

16

A181389

DECAL

- rear fender, LH front

1шт.

17

A181394

DECAL

- 2096 model no., right fender

1шт.

REF: #17 A181394 DECAL FOR RIGHT FENDER IS A187163 W/O 2096. 23-MAY-96

1шт.

17

A181393

DECAL

- 2096 model no., left fender

1шт.

REF: #17 A181393 DECAL FOR LEFT FENDER IS A187164 W/O 2096. 23-MAY-96

1шт.

19

A163604

DECAL

EMBLEM - SMV (Order D123347)

1шт.

20

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- Phillips pan head, 1/4 NC x 3/8 inch

2шт.

21

A177790

DECAL

- fuse location

1шт.

22

321-6446

DECAL

- roof, cab

1шт.

23

A167977

DECAL

- console, 12 speed

1шт.

24

A167978

DECAL

- console, 12 speed (MFD tractor)

1шт.

26

A181528

DECAL

- 2096 model no. right fender (2 post ROPS)

1шт.

26

A181527

DECAL

- 2096 model no. left fender (2 post ROPS)

1шт.

A46520

DECAL

KIT - decal, French language, Includes: Ref. 4, 6, 11, 12 and 13 listed below and the decals following Ref. 13 listed below

1шт.

Kit also includes parts listed in Figure 9-396.

1шт.

4

321-5793

DECAL

- fuel, diesel, French language

1шт.

6

321-6646

DECAL

- starting instructions, French language

1шт.

11

321-5789

DECAL - engagement, park lock, French language

1шт.

12

321-5625

DECAL

- unlatch, hood, French language

1шт.

13

321-5624

DECAL - adjusting, tilt hood, French language

2шт.

321-6206

DECAL - console, steering (Not used this application), French language

1шт.

321-5792

DECAL - 12 speed chart (Not used this application), French language

1шт.

321-5792 12 SPEED CHART, IN ENGLISH 321-5653. 5/14/97 CNS

1шт.

321-5627

DECAL - 12 speed chart (Not used this application), French language

1шт.

321-5626

DECAL - 8 speed chart (Not used this application), French language

1шт.

321-5861

DECAL - fuse location (On firewall), French language

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover) (See Figure 4-056), French language

1шт.
