Артикул
Название
Примечание
Количество

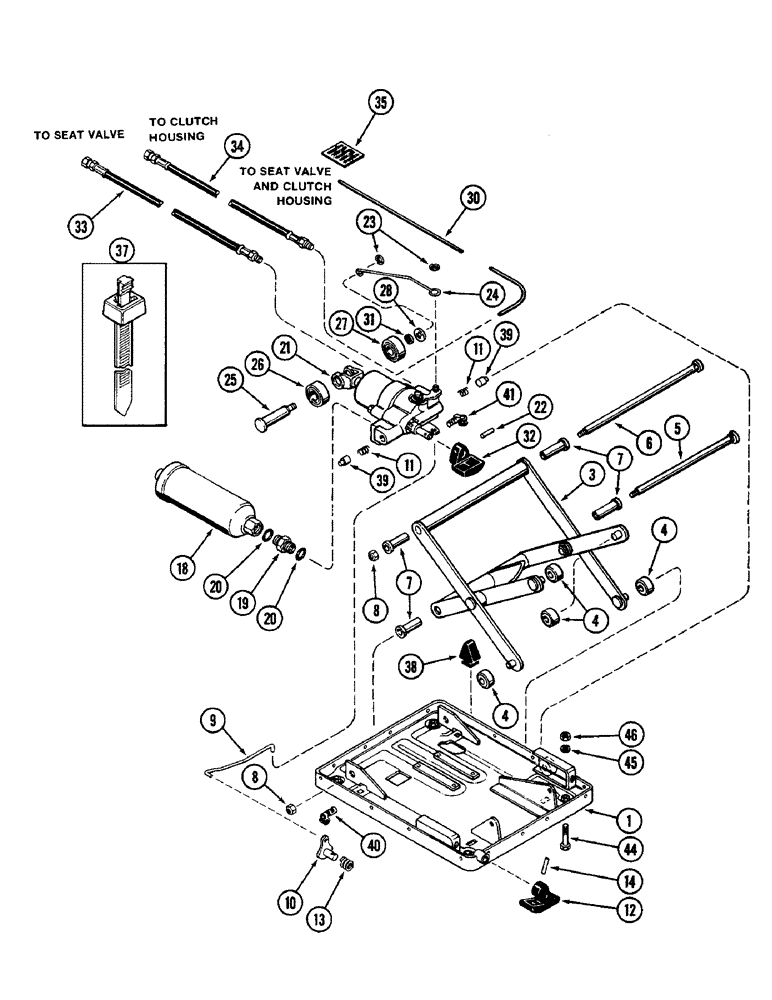

A176375
SEAT
ASSEMBLY - air/oil suspension, Includes: Ref. 1 - 41 in this figure and parts in Figures 9-370 - 9-374 (Order A181028)
1шт.
1
A49524
HOUSING
ASSEMBLY - suspension, lower
1шт.
3
A49526
ARM
ASSEMBLY - suspension
1шт.
4
A49527
ROLLER
- suspension
4шт.
5
A49528
SHAFT
- torque tube
1шт.
6
A49529
SHAFT
- bearing tube
1шт.
7
N6873
TUBE,0.501" ID x 0.63" OD x 2" L
- bearing (Order A47760)
4шт.
8
131-179
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
2шт.
9
A49532
CABLE
CONTROL WIRE - suspension
1шт.
10
A49535
LEVER
CONTROL ASSEMBLY - height adjust
1шт.
11
A49537
SPRING
- control
2шт.
12
A49536
HANDLE
- height adjust
1шт.
13
A49538
SPRING
- control
1шт.
14
138-77
LOCK PIN,5/32" x 1", Slotted
PIN, 5/32" x 1", Slotted
1шт.
A49611
GASKET
MODULE ASSEMBLY - hydraulic, final, Includes: Ref. 18 - 35
1шт.
18
A49617
ACCUMULATOR
- module
1шт.
19
A49620
FITTING
CONNECTOR ASSEMBLY - straight, Includes: Ref. 20
1шт.
21
REF
INSTRUCTION
CYLINDER ASSEMBLY - module (See Figure 9-378)
1шт.
23
A49623
RING, SNAP
RING - retaining
2шт.
24
A49615
ROD
- linkage, valve
1шт.
25
A49613
SHAFT
- roller, cam
1шт.
26
A49614
ROLLER BEARING,17 mm ID x 44.48 mm OD x 12 mm
BEARING - roller
2шт.
27
A49616
NEEDLE BEARING,16.99mm ID x 40mm OD x 20mm W
BEARING - follower, cam
1шт.
28
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, Push, 1/2"
1шт.
30
A49609
HOSE,0.38" ID x 39.00"
- Drain (See page 8-264) (Order A167912 and Cut to Length)
1шт.
31
195-2028
WASHER,.391" x 5/8" x .065"
- flat, 25/64 x 5/8 x 1/16 inch (10 x 16 x 2 MM)
1шт.
32
A49550
KNOB
- damper, valve
1шт.
33
A176631
HOSE ASSY.,6.35 mm ID x 63.00 mm, SAE100R1
6.35 mm ID x 63.00 mm, SAE 100R1 - Pressure, Seat (See page 8-264)
1шт.
34
A176632
HOSE ASSY.
HOSE - return, seat (See page 8-264)
1шт.
35
A49621
DECAL
LABEL - supply, pressure
1шт.
37
R38237
STRAP
- retaining, hose (Order L18337)
1шт.
38
A49530
INSULATOR BLOCK
BUMPER - suspension
2шт.
39
A49531
PIN
- trunnion
2шт.
40
A49533
HOSE
CLIP - retaining, left hand
1шт.
41
A49534
CLIP
- retaining, right hand
1шт.
44
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
4шт.
45
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
46
131-205
LOCK NUT,5/16"-18
NUT - hex lock, 5/16 inch NC
4шт.
20
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)
2шт.
Выбрано товаров: 40
