Запчасти Case IH 2096 (9-372) - OPERATOR SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

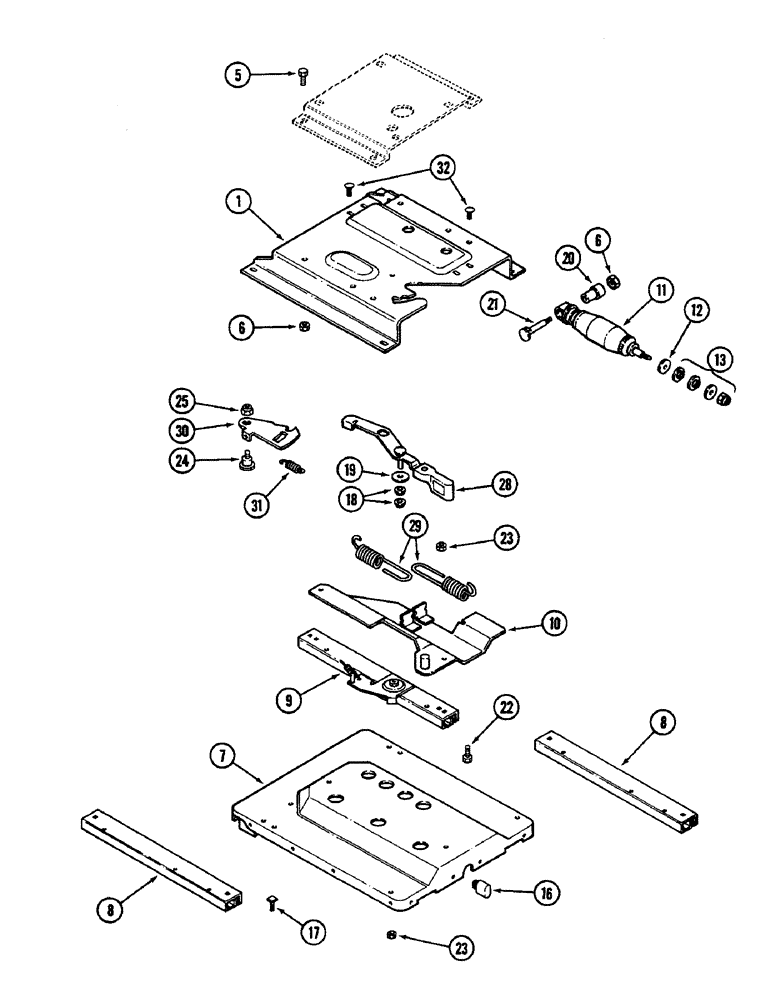

Схема запчастей Case IH 2096 - (9-372) - OPERATOR SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS
8
5
22
30
6
28
31
7
32
6
19
11
1
12
8
24
17
21
23
10
13
20
9
16
18
23
25

Артикул

Название

Примечание

Количество

A176375

SEAT

ASSEMBLY - air/oil suspension, Includes: Ref. 1 - 32 in this figure and parts in Figures 9-370, 9-374 and 9-376

1шт.

A49525

SEAT

ISOLATOR ASSEMBLY - seat, Includes: Ref. 1 - 32 in this figure and parts in Figure 9-374

1шт.

1

A49544

PLATE

- top

1шт.

5

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

6

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

7

A49539

CLIP

HOUSING - isolator, upper

1шт.

8

A49540

SLIDE

ASSEMBLY - isolator

2шт.

9

A49541

RAIL

SLIDE ASSEMBLY - isolator, with latch

1шт.

10

NLS

NO LONGER SERVICED

- mounting, shock absorber

1шт.

11

A49543

SHOCK ABSORBER

- isolator

1шт.

12

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

1шт.

13

A49619

KIT

MOUNTING KIT - shock absorber

1шт.

16

A49549

INSULATOR BLOCK

BUMPER - isolator

2шт.

17

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

6шт.

18

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

NUT - push, 1/4 x 17/32 inch

2шт.

19

195-2014

WASHER,.281" x 1 1/8" x .065"

- flat, 9/32 x 1-1/8 x 1/16 inch (7 x 29 x 2 MM)

1шт.

20

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

21

A45056

STEP BOLT

BOLT - shock

1шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

6шт.

23

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

12шт.

24

A49546

BOLT

- shoulder

1шт.

25

131-179

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

28

A49545

LEVER

ASSEMBLY - isolator

1шт.

29

A48356

SPRING

- shock absorber

2шт.

30

A49547

LATCH

- isolator

1шт.

31

A49548

SPRING

- latch

1шт.

32

A49622

CLIP

- retaining

2шт.

Выбрано товаров: 27
