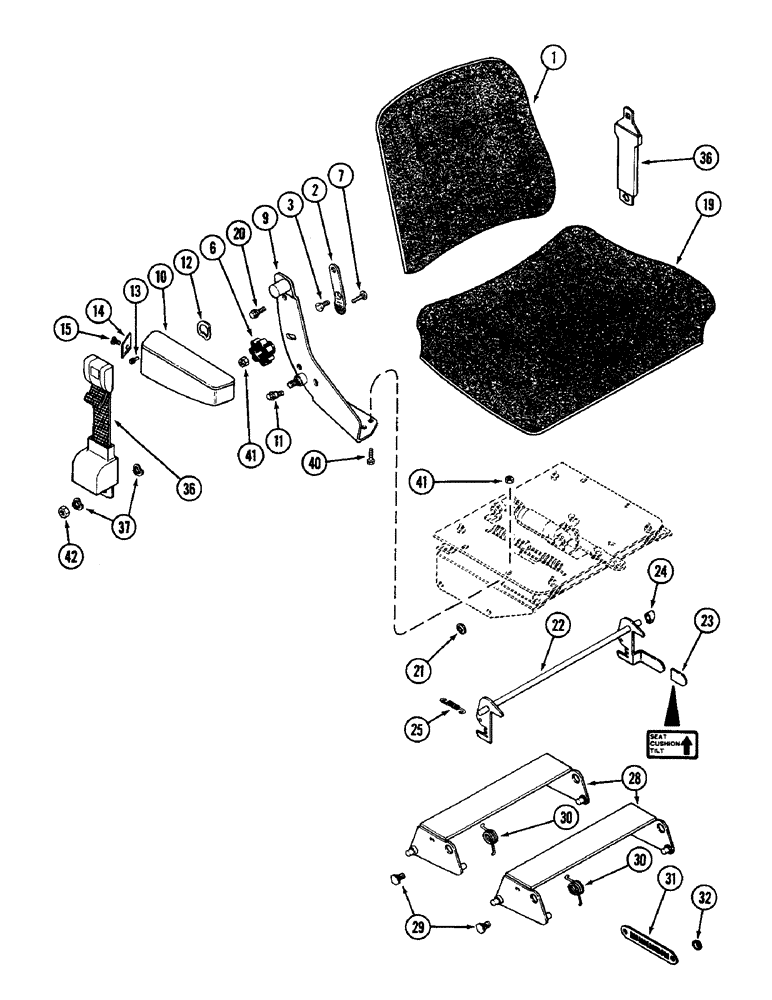

Запчасти Case IH 2096 (9-360) - CLOTH SEAT, WITH ISOLATOR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A177452
SEAT
AND SUSPENSION ASSEMBLY - operator, Includes: Ref. 1 - 42 and parts in Figures 9-362 and 9-364
1шт.
A46998
CUSHION
BACKREST ASSEMBLY - seat, Includes: Ref. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
CUSHION - backrest (Order A46998)
1шт.
2
A48343
LINK
- tilt, backrest
2шт.
3
187-1270
SELF-TAP SCREW,Flat, 3/8" - 18 x 1"
SCREW - flat head, 3/8 x 1 inch NC
2шт.
6
A45487
BUTTON
KNOB - tilt, backrest
2шт.
7
A45527
CARRIAGE BOLT
- round head square neck, 3/8 NC x 1-1/2 inch
2шт.
9
A46909
BRACKET
- armrest, right (Shown)
1шт.
9
A46910
BRACKET
- armrest, left
1шт.
10
A45489
ARMREST
- seat, right (Shown)
1шт.
10
A45488
ARMREST
- seat, left
1шт.
11
A48347
BOLT
- hex special
2шт.
12
A47352
WASHER
- wave
2шт.
13
61-3256
HEX SOC SCREW,1/4"-20 x 3/8"
SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"
2шт.
14
A45584
COVER
PLATE - armrest, right (Shown)
1шт.
14
A45583
PLATE
COVER PLATE - armrest, left
1шт.
15
187-130
SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"
SCREW - pan head self-tapping, no. 10 x 5/8 inch
2шт.
19
A46990
CUSHION
- seat
1шт.
20
A48346
BOLT
- hex special
2шт.
21
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, Push, 1/2"
4шт.
22
A47346
LEVER
- seat assembly tilt
1шт.
23
D82870
KNOB
CAP - lever, tilt (Order A47347)
1шт.
24
A45482
BUSHING
SPACER - tilt lever shaft
2шт.
25
A45471
- tension, tilt lever shaft
2шт.
28
A47379
LINK
- cross, seat mounting
2шт.
29
A45473
STEP BOLT
BOLT - hex shoulder, 1/2 NC x 3/4 inch
4шт.
30
D82863
SPRING
- torsion
2шт.
31
D82860
LINK
- connecting (Order A47383)
2шт.
32
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, Push, 1/2"
4шт.
36
A46982
SAFETY BELT
SAFETY BELT
1шт.
37
A46987
WASHER
- wave
4шт.
41
131-179
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
6шт.
42
131-1182
LOCK NUT,1/2"-13, GA
NUT - hex lock, 1/2 inch
2шт.
Выбрано товаров: 34
