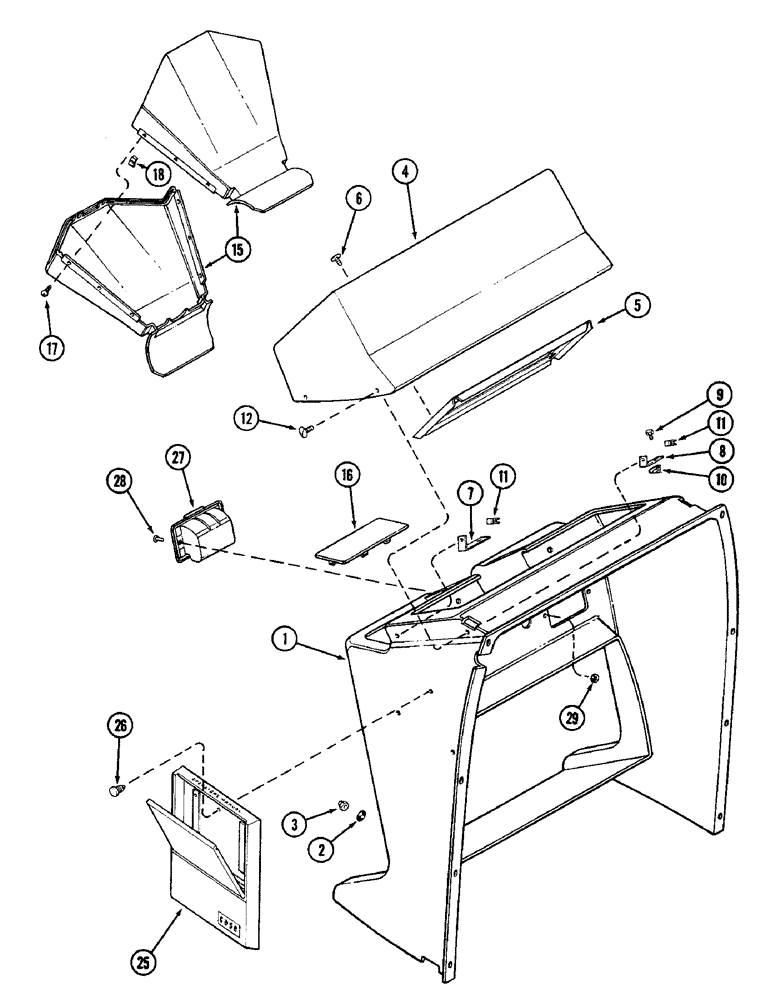

Запчасти Case IH 2096 (9-356) - INSTRUMENT PANEL SHROUD (09) - CHASSIS/ATTACHMENTS

1

A169013

GUARD

SHROUD - instrument panel, lower

1шт.

2

A160525

WASHER

- shroud

8шт.

3

129-501

NUT,Crown, 1/4"-20

- hex crown, 1/4 inch NC

8шт.

4

A169014

GUARD

SHROUD - instrument panel, upper

1шт.

5

A161073

SUPPORT

- instrument cluster

1шт.

6

187-1081

SELF-TAP SCREW,Pan, 0.19"-16 x 1/2"

SCREW - pan head Phillips, no. 10 x 1/2 inch

2шт.

7

A139109

BRACKET

- shroud support, lower

2шт.

8

A139110

BRACKET

- shroud support, upper

2шт.

9

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

10

131-627

NUT,Tinn, U, 1/4"-20

- U-type Tinnerman, 1/4 inch NC

6шт.

11

131-644

NUT,Tinn, #14

- J-type Tinnerman

6шт.

12

187-1901

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1"

SCREW - truss head self-tapping, no. 14 x 1 inch

6шт.

15

A169015

GUARD

SHROUD - steering column

2шт.

16

A169002

COVER

- fuse panel

1шт.

17

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head, no. 10 x 3/4 inch

10шт.

18

131-606

SPRING NUT,Tinn, U, #10

- Tinnerman, no. 10

10шт.

25

A177376

BOX

- operators manual

1шт.

26

A162364

FASTENER

- speed cinch nylon

3шт.

27

A165449

ASH TRAY

TRAY - ash

1шт.

28

151-548

RIVET,Pop, 1/8" x .462"

- mounting, ashtray

2шт.

29

195-507

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch (4 x 10 x 1 MM)

2шт.
