Запчасти Case IH 2096 (9-352) - LOWER GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

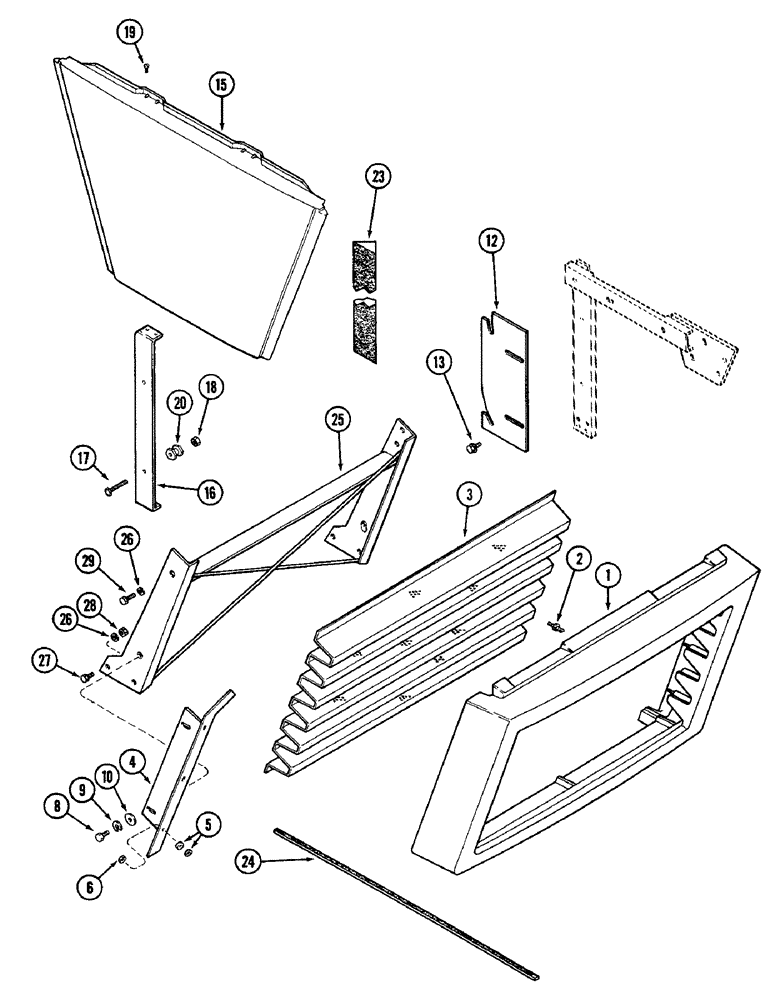

Схема запчастей Case IH 2096 - (9-352) - LOWER GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS
4
13
18
17
15
23
6
8
3
5
2
27
1
16
18
9
29
26
26
28
25
20
12
24
10

Артикул

Название

Примечание

Количество

1

A145888

GRILLE

ASSEMBLY - lower (White), Includes: Ref. 2

1шт.

1

A181469

GRILLE

ASSEMBLY - lower (Red) (Includes ref 2)

1шт.

2

A160247

STUD

- mounting, 1/4 inch NC

6шт.

3

A162558

SCREEN

- grille

1шт.

4

A147028

BRACKET

ANGLE - grille support, right (Shown)

1шт.

4

A147029

BRACKET

ANGLE - grille support, left

1шт.

5

A147030

SPACER

- grille screen

12шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

195-2174

WASHER,13/32" x 2" x .109"

- flat, 13/32 x 1-3/8 x 3/16 inch (10 x 35 x 5 MM)

4шт.

12

A147283

BRACKET

- support, lower side panel

2шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

15

A181465

PANEL

- lower side (Red)

2шт.

15

A145788

PANEL

- lower side (White)

2шт.

16

A149069

STRAP

- side panel

2шт.

17

A160078

BOLT

- adjuster, panel support

4шт.

18

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

19

187-1146

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW - slotted pan head self-tapping, 1/4 x 1/2 inch

8шт.

20

A147282

SPOOL

- lock, lower side panel

4шт.

23

A149132

SEAL

- panel

2шт.

24

A162382

SEAL

SEAL - lower grille (Order A162397 and cut to required length)

1шт.

A162397

SEAL

- adhesive sided, 50 feet (15 M)

1шт.

25

A145934

SUPPORT

- front, hood and grille

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

Выбрано товаров: 28
