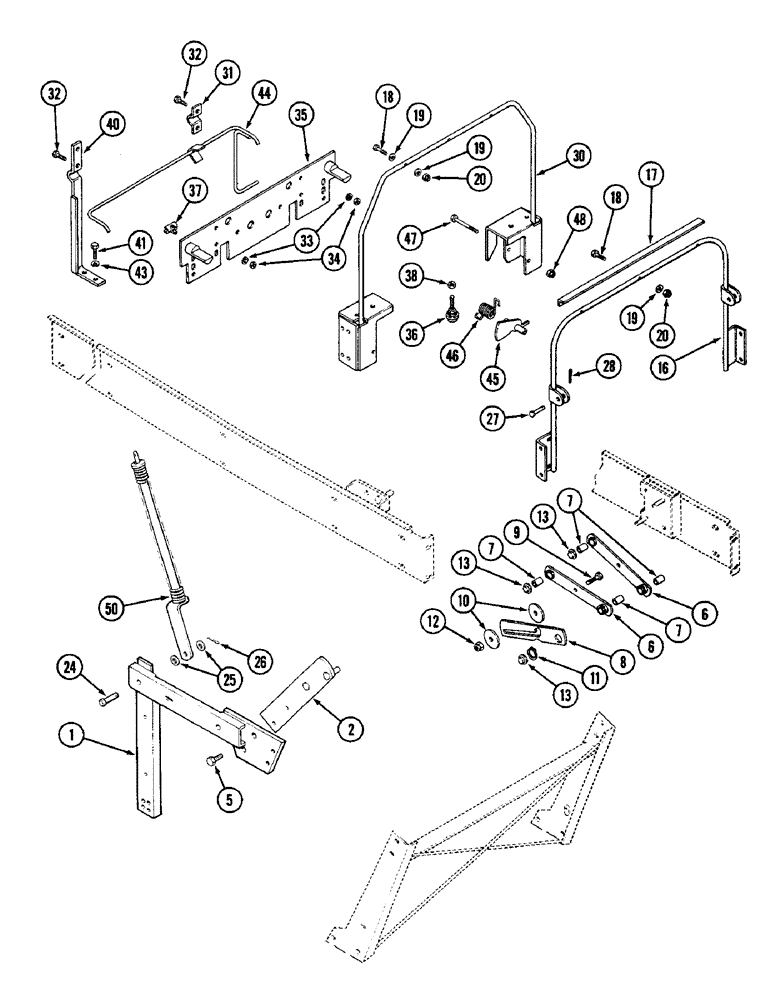

Запчасти Case IH 2096 (9-348) - HOOD SUPPORTS, HINGE AND LATCH (09) - CHASSIS/ATTACHMENTS

1

A169188

BRACKET

CHANNEL - hood, left

1шт.

1

A169187

BRACKET

CHANNEL - hood, right (Shown)

1шт.

2

NLS

NO LONGER SERVICED

- hinge support, right (Shown)

1шт.

2

A147613

BRACKET

- hinge support, left

1шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

6

A162510

LINK

ASSEMBLY - hood tilt, Includes: Ref. 7 and 8

4шт.

7

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- pivot

2шт.

8

A147632

LEVER

- lock, hood

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

10

195-2174

WASHER,13/32" x 2" x .109"

- flat, 3/8 x 2 x 1/8 inch (10 x 51 x 3 MM)

2шт.

11

B18208

SNAP RING,#100, Ext

hood lock #100, Ext

1шт.

12

131-206

NUT,3/8"-16

NUT - elastic lock, 3/8 inch NC

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

8шт.

16

A166989

BRACE

- hood and cylinder

1шт.

17

A149068

BRACKET

ANGLE - brace, center

1шт.

18

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

6шт.

19

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

9шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

24

141-63

CLEVIS PIN,1/2" x 1 11/16'"

PIN - cylinder to support, 1/2 inch

2шт.

25

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 MM)

4шт.

26

132-335

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER) 1/8" x 1 1/4"

2шт.

27

141-62

CLEVIS PIN,1/4" x 1.219"

PIN - upper, 1/4 inch

2шт.

28

132-17

COTTER PIN,1/16" x 2"

PIN - cotter, 1/16 x 1 inch

2шт.

30

A169845

BRACKET

BRACE - hood support, rear

1шт.

31

A166658

CLAMP

- bushing

2шт.

32

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

8шт.

33

892-1110

LOCK WASHER,M10

WASHER - lock, M10

8шт.

34

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

8шт.

35

A167531

SUPPORT

- rear, hood

1шт.

36

A145178

WAD

BUMPER - stop, hood

2шт.

37

A169954

BUSHING

- release, hood

4шт.

38

9635082

NUT,5/16" - 18, Gr 5

2шт.

40

A166665

BRACKET

BRACE - release, hood

2шт.

41

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, M12 x 35 MM

4шт.

43

892-1112

LOCK WASHER,M12

WASHER - lock, M12

4шт.

44

A176012

HANDLE

- release, hood

1шт.

45

A147728

TRIGGER

- release, hood

2шт.

46

A147730

SPRING

- release, trigger

2шт.

47

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

48

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

50

REF

INSTRUCTION

CYLINDER ASSEMBLY - hood lift (See Figure 9-350)

2шт.
