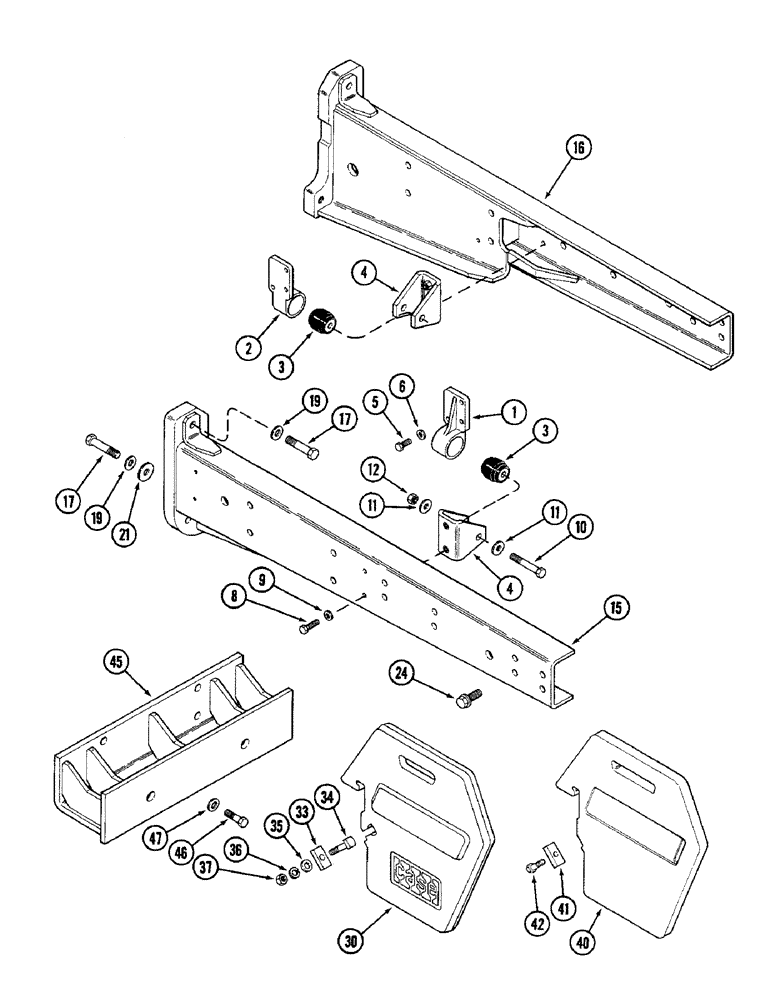

Запчасти Case IH 2096 (9-346) - ENGINE MOUNTS AND SIDE RAILS (09) - CHASSIS/ATTACHMENTS

1

A181071

MOUNTING PARTS

MOUNT ASSEMBLY - engine, RH (Includes ref 3) (Replaces A177591)

1шт.

2

A181072

MOUNTING PARTS

MOUNT ASSEMBLY - engine, LH (Replaces A177592), Includes: Ref. 3

1шт.

3

A167825

MOUNTING PARTS

MOUNT - rubber, engine

2шт.

4

A176503

BRACKET

- engine mount

2шт.

5

826-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, M12 x 35 MM

6шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

6шт.

8

813-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, M12 x 40 MM

4шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

10

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

2шт.

11

196-30

WASHER,11/16" x 1 1/2" x .134", HDN

- flat hardened, 11/16 x 1-1/2 x 1/8 inch (17 x 38 x 3 MM)

4шт.

12

825-1116

NUT,M16, Cl 8

2шт.

15

A177612

RAIL

- side, RH

1шт.

16

A177613

RAIL

- side, LH

1шт.

17

826-20085

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

- hex, M20 x 85 MM

8шт.

19

A177650

WASHER

- flat, hardened

8шт.

21

195-2086

WASHER,13/16" x 1 7/8" x .148", HDN

- flat, 13/16 x 2 x 1/4 inch (21 x 51 x 6 MM)

4шт.

24

A169100

BOLT

- flanged hex, M16 x 66 MM

16шт.

30

A169111

WEIGHT

- front end, 100 lbs (45 kg) (Maximum of 18 used) (Machinery item), front end weights and support

1шт.

A177102

KIT

HARDWARE KIT - attaching, weight (Machinery item), front end weights and support, Includes: Ref. 33 - 37

1шт.

33

A145919

CLAMP

- weight bar, front end weights and support

1шт.

34

A169139

SQUARE BOLT

- weight clamp, front end weights and support

1шт.

35

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch (14 x 27 x 2 mm), front end weights and support

1шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Front end weights and support 1/2"

1шт.

37

129-105

NUT,Hex, 1/2" - 13, Gr 5

Front end weights and support 1/2"-13, G5

1шт.

A67373

WEIGHT

ATTACHMENT - counter, front end (Machinery item), front end weights and support, Includes: Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

WEIGHT - counter, 75 lbs (35 kg) (Maximum of 25 used), front end weights and support

1шт.

41

A145919

CLAMP

- weight bar, front end weights and support

1шт.

42

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Front end weights and support Hex, 1/2"-13 x 2", G5

1шт.

A165959

WEIGHT

FRAME ATTACHMENT - support (Machinery item), front end weights and support, Includes: Ref. 45 - 47

1шт.

45

A177026

FRAME

- support, weight, front end

1шт.

46

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

- hex, M20 x 55 MM, front end weights and support

4шт.

47

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, front end weights and support

4шт.
