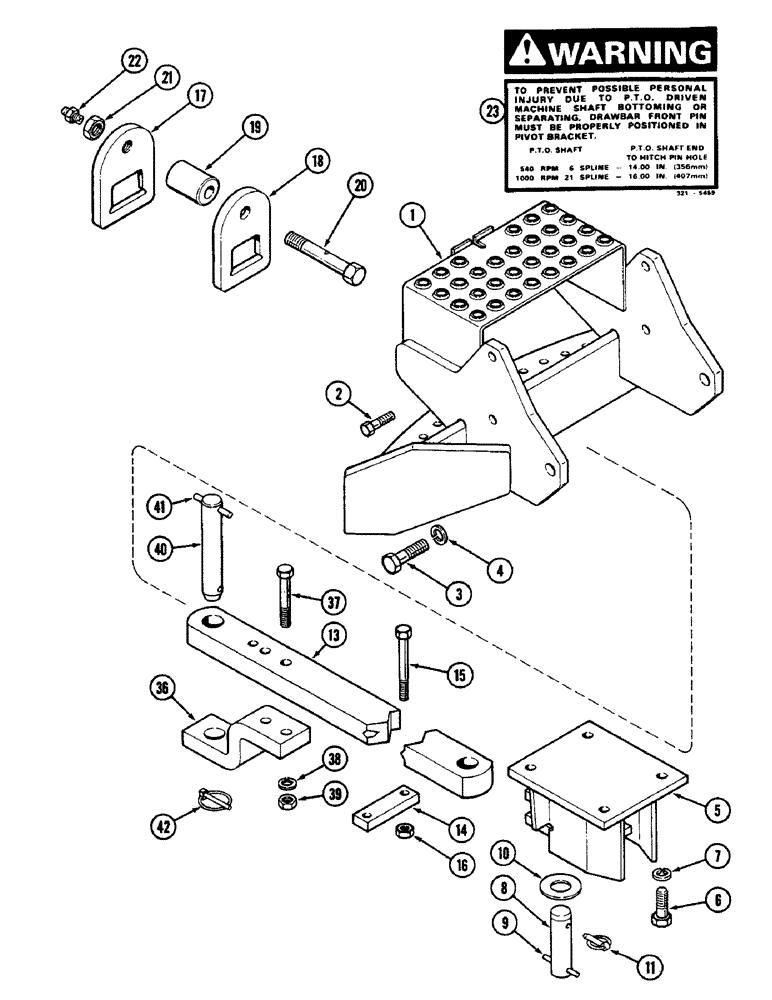

Запчасти Case IH 2096 (9-342) - DRAWBAR, SPECIAL WIDE SWING, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A176395

BRACKET

- support, drawbar swing

1шт.

2

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

3

113-925

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex, 1 NC x 3 inch

2шт.

4

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

5

A160820

BRACKET

- support and pivot, front

1шт.

6

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

A160831

PIN

ASSEMBLY - pivot, Includes: Ref. 9

1шт.

9

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

10

A160830

WASHER

- pivot pin

1шт.

11

D33805

PIN

- klik

1шт.

13

A160824

DRAWBAR, SWINGING

DRAWBAR - tractor

1шт.

14

A63600

STRAP

- drawbar clamp

1шт.

15

113-653

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- hex, 5/8 NC x 5-3/4 inch

2шт.

16

129-107

NUT,5/8"-11, G5

2шт.

17

A135433

PLATE

BRACKET - threaded, drawbar hanger

1шт.

18

A65754

PLATE

BRACKET - hanger, drawbar

1шт.

19

A135435

ROLLER

- drawbar

1шт.

20

A135434

BOLT

- roller

1шт.

21

129-110

NUT,1"-8, G5

1шт.

22

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8 inch PT

1шт.

23

321-5459

DECAL

- drawbar pin

1шт.

A61836

KIT

YOKE ATTACHMENT - drawbar, wideswing (Machinery item), Includes: Ref. 36 - 42

1шт.

36

A61557

DRAWBAR CLAMP

STRAP - hammer

1шт.

37

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

38

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

39

129-108

NUT,3/4"-10, G5

2шт.

40

A65760

PIN

ASSEMBLY - drawbar, Includes: Ref. 41 and 42

1шт.

41

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

42

A61560

LOCK PIN

PIN - klik

1шт.
