Запчасти Case IH 2096 (9-338) - QUICK HITCH COUPLER, CATEGORY II AND III, WITH OFFSET FRAME (09) - CHASSIS/ATTACHMENTS

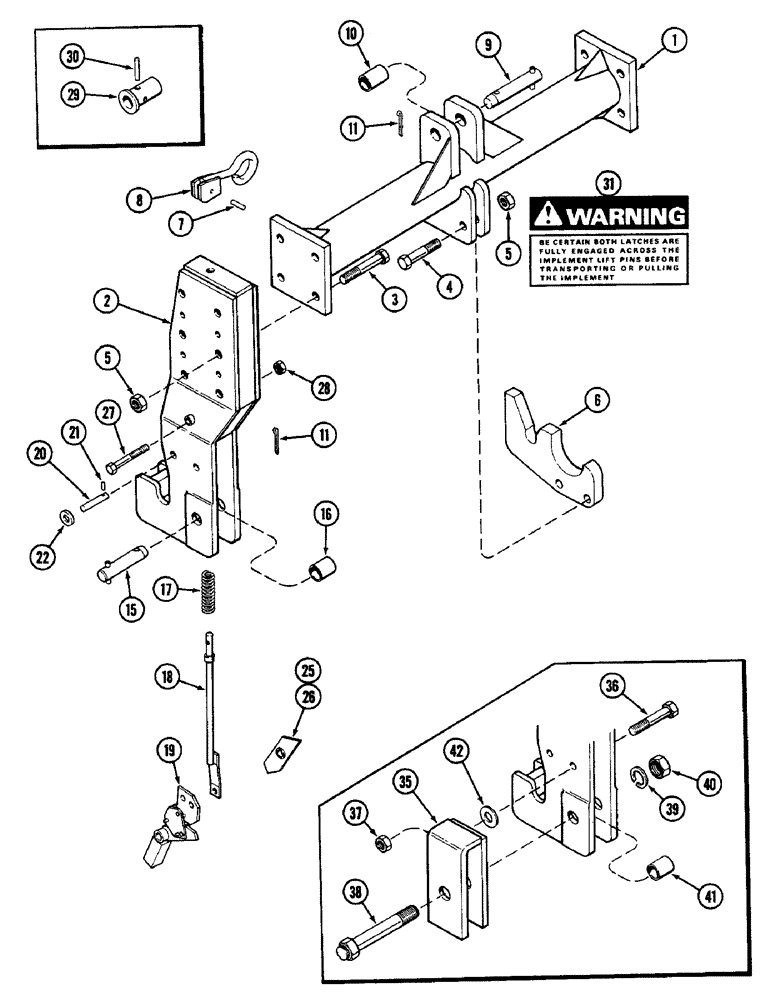

Схема запчастей Case IH 2096 - (9-338) - QUICK HITCH COUPLER, CATEGORY II AND III, WITH OFFSET FRAME (09) - CHASSIS/ATTACHMENTS
18
41
40
10
28
1
30
8
3
11
39
11
42
2
4
25
19
20
5
21
36
29
15
26
5
6
27
7
22
38
9
35
31
17
37
16

Артикул

Название

Примечание

Количество

A66281

NO LONGER SERVICED

ATTACHMENT - coupler (Machinery item), Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - tube, upper arm

1шт.

2

A44594

HITCH ASSY

HITCH - arm bracket, lower right

1шт.

2

A44595

HITCH ASSY

HITCH - arm bracket, lower left (Order A66281) (Right shown)

1шт.

3

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

8шт.

4

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

5

129-108

NUT,3/4"-10, G5

10шт.

6

A44600

PLATE

LUG - hitch, upper arm

1шт.

7

138-2067

PIN,3/16" x 1", Coiled

2шт.

8

A44472

HANDLE

- release, hitch

2шт.

9

A45463

PIN

- hitch, upper

1шт.

10

A44474

SLEEVE

- pin, upper draft arm

1шт.

11

A50113

GASKET

PIN - clinch, hitch pin

3шт.

15

A45462

PIN

- coupler arm, lower

2шт.

16

A43542

SLEEVE

- arm, coupler (For Category II tractors)

2шт.

17

A45461

SPRING

- release rod

2шт.

18

A44598

ROD

- handle, tripping devices (Used with handle, Serial Range: facing-rear)

2шт.

18

A45086

ROD

- handle, tripping devices (Used with handle facing each other)

2шт.

19

A45020

LEVER

- lock, right

1шт.

19

A45019

LEVER

- lock, left (Right shown)

1шт.

20

A45459

PIN

- trip, ratchet lever

2шт.

21

138-2055

PIN,3/16" x 1 1/2", Coiled

2шт.

22

195-41

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 1/8 inch (17 x 33 x 3 mm)

2шт.

25

A44470

LEVER

- trip ratchet, lower right

1шт.

26

A44471

LEVER

- trip ratchet, lower left

1шт.

27

113-4314

BOLT - hex, 1/2 NC x 4 inch

2шт.

28

131-165

NUT,1/2"-13, GA

NUT - Gripco crown lock, 1/2 inch NC

2шт.

29

T32995

ADAPTER

- hitch coupler

2шт.

30

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

31

321-3339

DECAL

- warning, implement pin

2шт.

31

321-5790

DECAL

- warning, implement pin (French language)

1шт.

A66283

KIT

- hitch adapter (Machinery item) (Use with A66281 hitch coupler), Includes: Ref. 35 - 42

1шт.

35

A66284

BRACKET

- adapter

2шт.

36

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

2шт.

37

131-385

LOCK NUT,3/4"-10, GA

NUT - Gripco Toplock, 3/8 inch NC

2шт.

38

A66285

BOLT

- attaching, adapter

2шт.

39

192-33

LOCK WASHER,1 1/8"

1 1/8"

2шт.

40

129-131

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

41

A43542

SLEEVE

- arm, coupler (Used with A66281 hitch to prevent coupler arm collapse)

2шт.

42

195-109

WASHER,3/4"

- flat, 13/16 x 2 x 1/8 inch (21 x 51 x 3 MM)

2шт.
