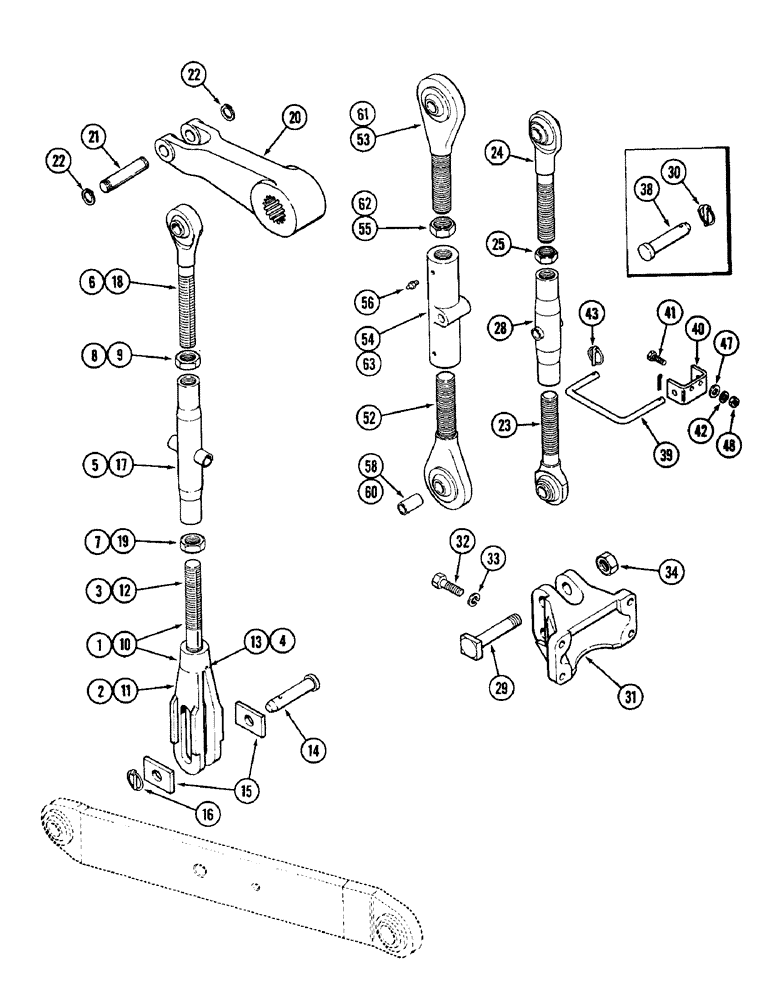

Запчасти Case IH 2096 (9-334) - HITCH LEFT LINKS (09) - CHASSIS/ATTACHMENTS

1

A137947

YOKE

ASSEMBLY - draft arm, Includes: Ref. 2 - 4, Serial Range: -9939634

2шт.

2

A137078

YOKE

- draft arm

1шт.

3

A137948

SCREW,Yoke, 1 1/4" - 12 x 6"

- yoke, draft arm

1шт.

4

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

5

A137080

TURNBUCKLE

- adjusting, lift link, Serial Range: -9939634

2шт.

6

A137949

LIFT LINK END ASSY

ASSEMBLY - upper link, Serial Range: -9939634

2шт.

7

129-172

NUT,Jam, 1 1/4"-12, G5

- hex jam, 1-1/4 inch NF (Use with ref 3) RH thread

2шт.

8

129-372

NUT,Jam, 1 1/4"-12, G5, LH

- hex jam, 1-1/4 inch NF (Use with ref 6) LH thread

2шт.

9

129-352

NUT,Jam, 1 1/4"-7, G5, LH

- hex jam, 1-1/4 inch NC, LH thread (Use with ref 18)

2шт.

10

A166365

CLEVIS

YOKE ASSEMBLY - draft arm, lift link, Includes: Ref. 11 - 13, Start Serial: 9939634

2шт.

11

A137078

YOKE

- draft arm

1шт.

12

A166366

SCREW,Stud, 1 1/4" - 12 x 9.85"

- yoke, draft arm

1шт.

13

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

14

A67342

PIN

- yoke, draft arm

2шт.

15

A67343

PLATE

- stop, yoke pin

4шт.

16

A64204

PIN

- klik

2шт.

17

A166372

TURNBUCKLE

- adjusting, lift link, Start Serial: 9939634

2шт.

18

A166367

END

SCREW ASSEMBLY - upper link, Start Serial: 9939634

2шт.

19

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex jam, 1-1/4 inch NC RH thread (Use with ref 12)

2шт.

20

A177253

LIFT ARM

ARM - lift, rockshaft

2шт.

21

A177258

PIN

- link to lift arm

2шт.

22

A34428

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

4шт.

23

A166871

END ASSY.

SCREW ASSEMBLY - lower, turnbuckle (Standard)

1шт.

24

A166454

END ASSY.

SCREW ASSEMBLY - upper, turnbuckle (Standard)

1шт.

25

129-112

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC (Use with ref 23 and 24)

1шт.

28

A166872

TURNBUCKLE

- adjusting (Standard)

1шт.

29

A164279

BOLT,1" - 8 x 5", Gr 8

- square head, 1 NC x 5 inch

1шт.

30

A64204

PIN

- klik

1шт.

31

A165800

BRACKET

- mounting, turnbuckle

1шт.

32

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

33

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

34

131-1184

LOCK NUT,1"-8, GA

NUT - hex, lock, 1 inch NC

1шт.

38

A33432

PIN

- implement

1шт.

39

A163822

HOOK

- storage, turnbuckle link

1шт.

40

A163821

BRACKET

- link, turnbuckle

1шт.

41

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

BOLT - hex, 3/8 NC x 1 inch

2шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

A33497

LINCH PIN,4.76mm OD Pin

PIN - klik

1шт.

45

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

47

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

2шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

52

A169844

ROD

SCREW ASSEMBLY - turnbuckle, lefthand, Start Serial: 9939634

1шт.

53

A166863

ROD

SCREW ASSEMBLY - turnbuckle, right hand, Start Serial: 9939634

1шт.

54

A165965

TURNBUCKLE

- link, upper (Heavy duty), Start Serial: 9939634

1шт.

55

129-154

NUT,Jam, 1 1/2"-6, G5

- hex, 1-1/2 inch NC (Use with ref 52 and 53)

1шт.

56

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8 inch

2шт.

58

A33499

ADAPTER

- upper hitch pin (Category II to Category I)

1шт.

60

A162914

ROD

SCREW ASSEMBLY - lower, turn buckle, Serial Range: -9939634

1шт.

61

A162915

ROD

SCREW ASSEMBLY - upper, turn buckle, Serial Range: -9939634

1шт.

62

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

NUT - hex, 1-1/2 inch NF (Use with ref 60 and 61)

1шт.

63

A160905

TURNBUCKLE

- adjusting, Serial Range: -9939634

1шт.
