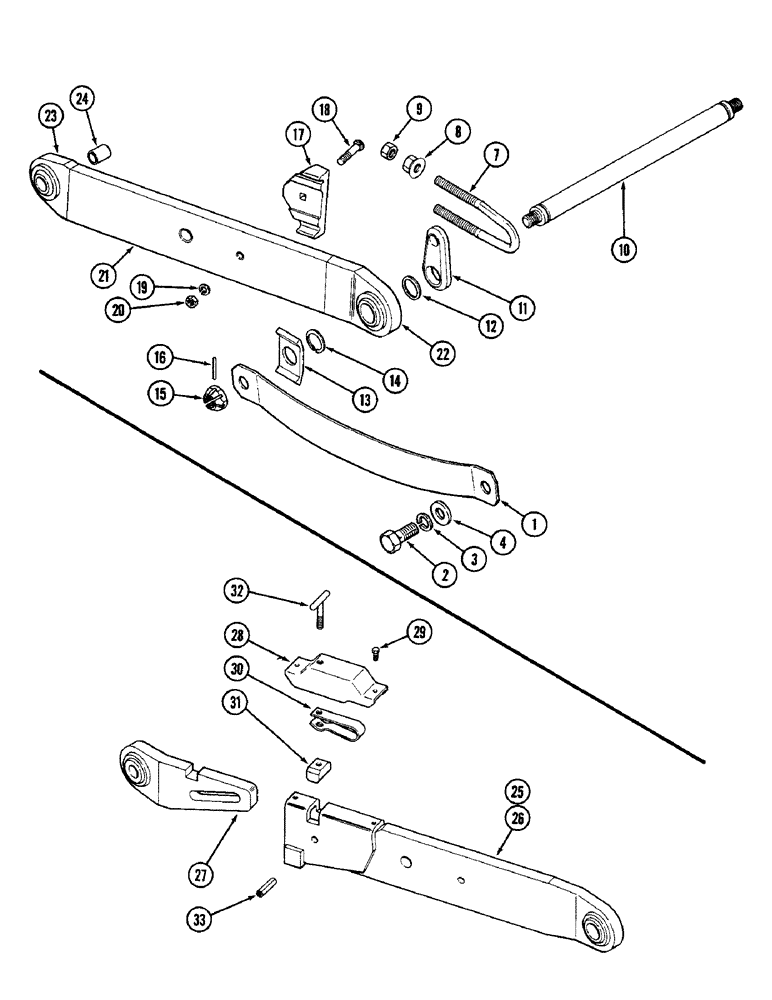

Запчасти Case IH 2096 (9-332) - HITCH SPRINGS, DRAFT ARMS AND SHAFT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A145753
SPRING
- sensing
2шт.
2
113-924
BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd
2шт.
3
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
4
195-2100
WASHER,1 1/32" x 2" x .238"
- flat, 1-1/32 x 2 x 1/4 inch (26 x 51 x 6 MM)
2шт.
7
A162689
BOLT
U-BOLT - 3/4 inch NC
2шт.
8
131-935
FLANGE NUT,Flg, 3/4"-10, G8
- hex flange, 3/4 inch NC
4шт.
9
131-1338
LOCK NUT,3/4"-10, GA
NUT - hex lock, 3/4 inch NC
4шт.
10
A176923
BEAM
SHAFT - cross, draft arm and sending spring
1шт.
11
A167660
LINK
- support, shaft
2шт.
12
A167661
WASHER
- spacer, draft arm
2шт.
13
A167662
PLATE
SPACER - spring
2шт.
14
A167663
RING
- snap
2шт.
15
A33404
NUT
- cross shaft
2шт.
16
138-2014
PIN,3/16" x 1 7/8", Coiled
2шт.
17
A162756
BLOCK
- sway, draft arm
2шт.
18
111-504
CARRIAGE BOLT,Short NK, 1/2"-13 x 2 1/2", G5
BOLT - round head square neck, 1/2 NC x 2-1/2 inch
2шт.
19
92-8
LOCK WASHER,1/2"
2шт.
20
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
21
A167794
ARM
- draft, hitch, Includes: Ref. 22 and 23
2шт.
22
A167796
TRUNNION
SOCKET ASSEMBLY - ball, arm
1шт.
23
A61922
ARM
SOCKET ASSEMBLY - ball, arm
1шт.
24
A33498
ADAPTER
- lower hitch pin (Category II to Category I)
2шт.
25
A164991
ARM
ASSEMBLY - hitch draft, left (Includes ref 27 through 33), telescoping
1шт.
26
A164990
ARM
ASSEMBLY - hitch draft, right, telescoping, Includes: Ref. 27 - 33
1шт.
27
A48913
ARM
END - draft arm, left, hitch draft arms telescoping
1шт.
27
A48914
ARM
END - draft arm, right, hitch draft arms telescoping
1шт.
28
A48915
COVER
- latch, draft arm, hitch telescoping
1шт.
29
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
Hitch draft arms telescoping Hex, 1/4"-20 x 1/2", G5, Full Thd
2шт.
30
A48917
SPRING
- latch, hitch draft arms telescoping
1шт.
31
A48918
LATCH
- block, hitch draft arms telescoping
1шт.
32
A48916
HANDLE
- latch, hitch draft arms telescoping
1шт.
Выбрано товаров: 32
