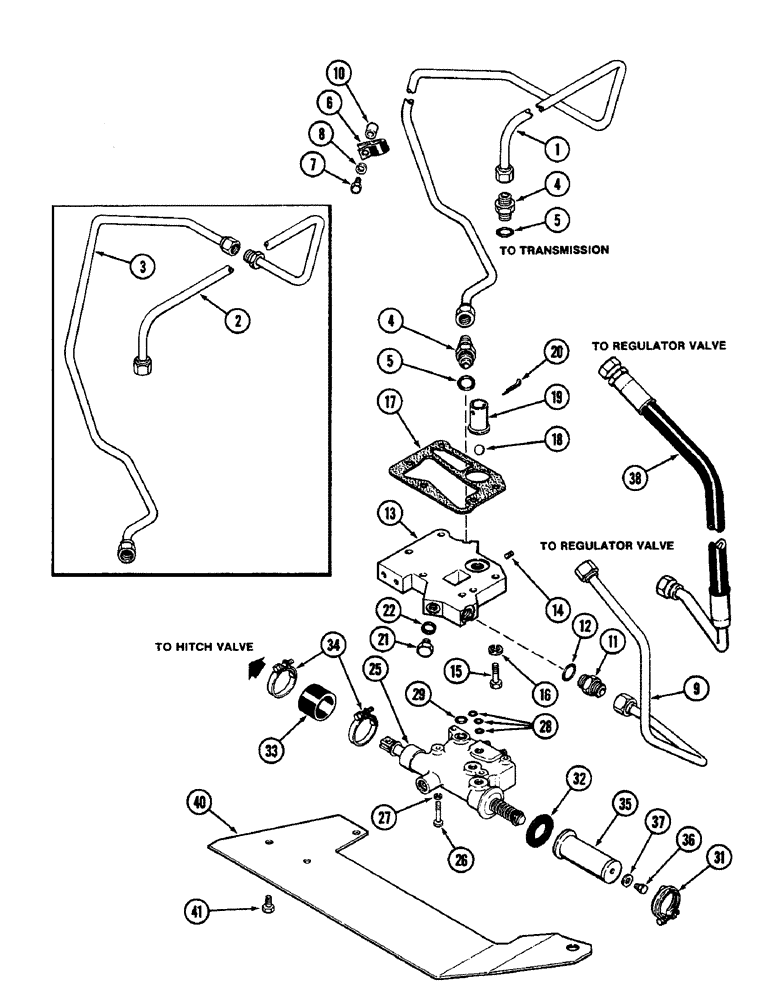

Запчасти Case IH 2096 (8-328) - HITCH CONTROL VALVE, MANIFOLD AND TUBES (08) - HYDRAULICS

1

REF

INSTRUCTION

TUBE - manifold, lift cylinder (J I Case installed) (Order ref 2 and 3)

1шт.

2

A177608

TUBE

- manifold, lift cylinder (Upper half) (Service only)

1шт.

3

A177609

TUBE

- manifold, lift cylinder (Lower half) (Service only)

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 inch (19 x 24 x 2 MM)

1шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- lower, tube

1шт.

7

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9

A162500

TUBE

- regulator valve to manifold (J I Case installed) (Order ref 38)

1шт.

10

G16006

BUSHING

SPACER - clamp

1шт.

11

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 7/8-14 inch thread, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 inch (19 x 24 x 2 MM)

1шт.

13

A161770

BODY

MANIFOLD - control, oil

1шт.

14

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

5шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

17

A64014

GASKET

- manifold, transmission case

1шт.

18

211-19

BALL,7/8" Dia

- 7/9 inch diameter (22 MM)

1шт.

19

A63458

TUBE

- return, oil

1шт.

21

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 22 Hex Soc, 3/4"-16 ORB

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - hitch control (See Figure 8-330)

1шт.

26

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

28

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- valve port, 1/2 inch (13 MM) ID

3шт.

29

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- valve port, 5/8 inch (16 MM) ID

1шт.

31

A63475

CLAMP,50.29mm ID

- cover

1шт.

32

A65542

GASKET

- cover

1шт.

33

A63472

HOSE

- valve, linkage housing

1шт.

34

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

A167785

COVER

- spool, valve

1шт.

20

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

36

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

37

195-1013

SEALING WASHER,0.26" ID x 0.56" OD x 0.04" Thk

- brass, 1/4 x 9/16 inch

1шт.

38

A181031

TUBE

HOSE ASSEMBLY -, Serial Range: regulator-manifold

1шт.

A67514

GUARD KIT - valve, draft control, Includes: Ref. 40 and 41

1шт.

40

A162528

GUARD

- valve

1шт.

41

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.
