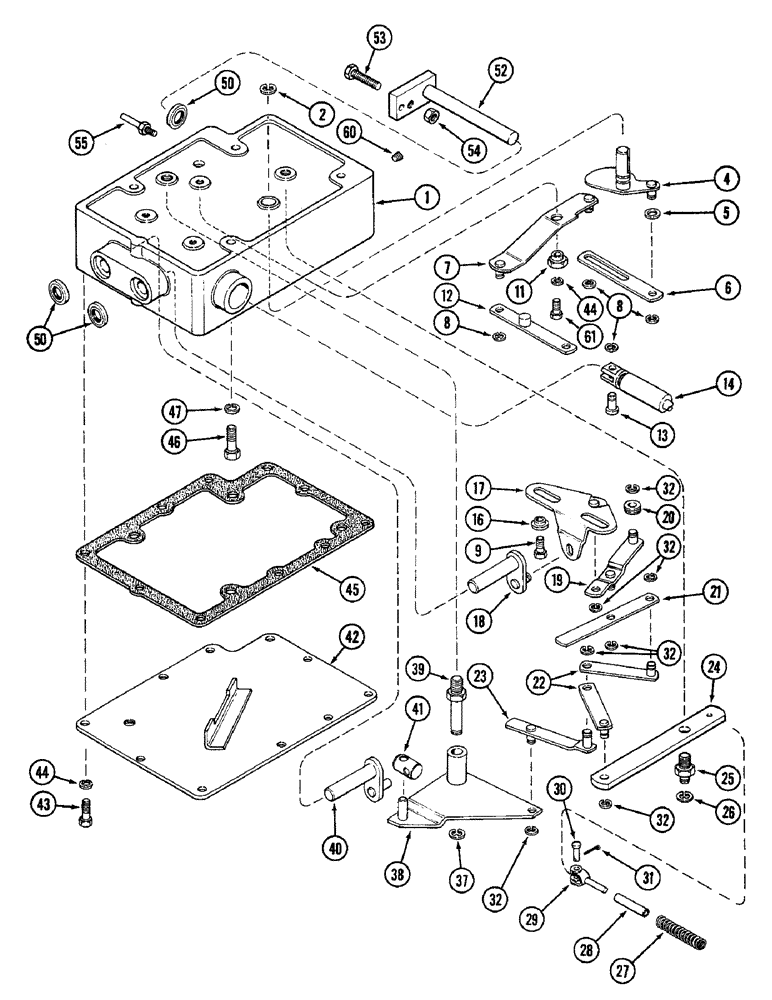

Запчасти Case IH 2096 (8-326) - DRAFT CONTROL SENSING LINKAGE HOUSING (08) - HYDRAULICS

1

A147792

HOUSING

- linkage

1шт.

2

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , follow-up camshaft #62, .480" Dia, E-Type

1шт.

4

A63403

CAM

- follow-up

1шт.

5

195-2038

WASHER,13/32" x 7/8" x .035"

- flat, 13/32 x 7/8 x 3/64 inch (10 x 22 x 1 MM)

2шт.

6

A63424

LINK

- J, valve lockout

1шт.

7

A65087

ARM

- H, valve lockout

1шт.

8

A164905

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

4шт.

9

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

11

A63423

TRUNNION

- eccentric

1шт.

12

A137498

LINK

- G, valve spool

1шт.

13

A63428

PIN

- valve spool

1шт.

14

REF

INSTRUCTION

SPOOL - valve (See Figure 8-330)

1шт.

16

A164738

SLIDE

- trunnion

2шт.

17

A63413

SLIDE

- signal, manual

1шт.

18

A63407

SHAFT

- signal, manual

1шт.

19

A63416

LINK

- F, draft control

1шт.

20

A63418

ROLLER

- cam follower

1шт.

21

A63419

LINK

- E, draft control

1шт.

22

A63429

LINK

- D, draft control

2шт.

23

A63433

LINK

- B, draft control

1шт.

24

A160867

LEVER

LINK - C, draft control

1шт.

25

A63432

STUD

- link pivot, C (In housing)

1шт.

26

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , C link to stud #50, .392" Dia, E-Type

1шт.

27

A160868

SPRING

- link, control

1шт.

28

A160869

GUIDE

- spring

1шт.

29

A162295

CLEVIS

YOKE - link, spring

1шт.

30

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

31

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

32

A164905

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

7шт.

37

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , pivot stud #50, .392" Dia, E-Type

1шт.

38

A63436

LINK

- A, draft control

1шт.

39

A63439

STUD

- pivot, A link

1шт.

40

A63411

SHAFT

- adjustment, sensitivity

1шт.

41

A139420

BLOCK

- pivot, sliding

1шт.

42

A161547

COVER

- housing, linkage

1шт.

43

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

10шт.

44

92-5

LOCK WASHER,5/16"

11шт.

45

A137621

GASKET

- cover, housing

1шт.

46

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

47

92-6

LOCK WASHER,3/8"

4шт.

50

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

- oil, Serial Range: shaft-housing

3шт.

52

A160493

SHAFT

- signal, draft control

1шт.

53

113-2262

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch full thread

1шт.

54

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

55

A176262

GUIDE

- arm, signal

1шт.

60

221-849

PLUG,Hex Soc, 1/8"-27

- square socket, 1/8 inch PT

1шт.

61

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.
