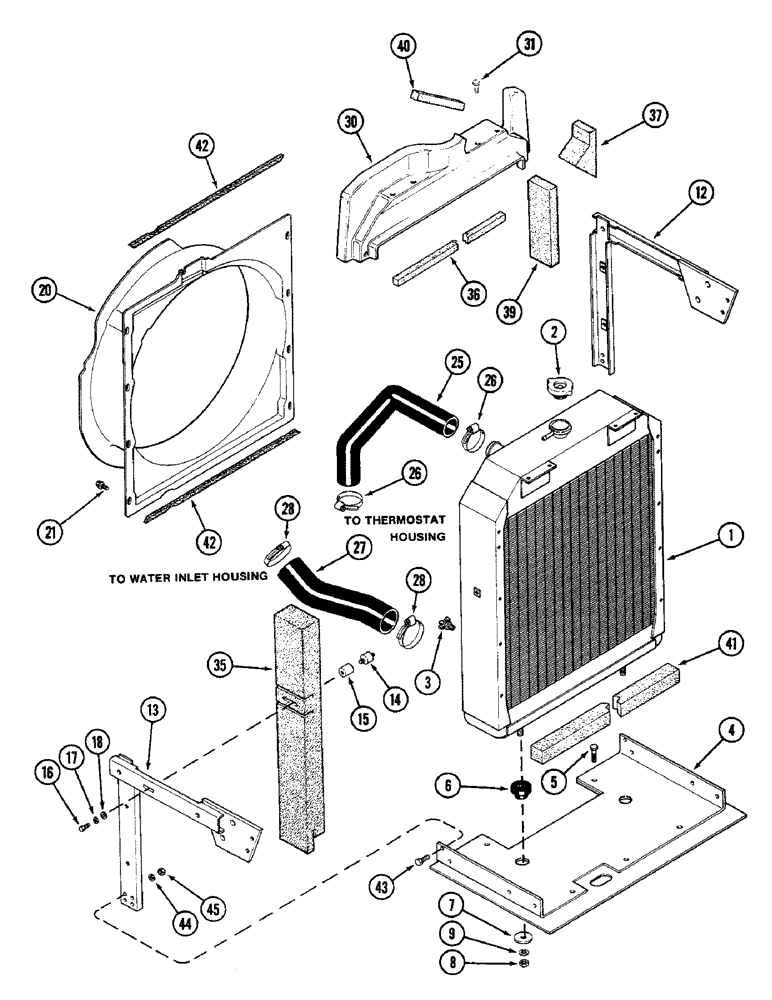

Запчасти Case IH 2096 (2-002) - RADIATOR AND ATTACHING PARTS, 6TA-590 DIESEL ENGINE (02) - ENGINE

1

A171653

RADIATOR

- cooling system

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 PSI (103 kPa)

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain, 1/4 inch PT

1шт.

4

A167000

SUPPORT

- radiator, lower

1шт.

5

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

5шт.

6

L46821

SHOCK ABSORBER

MOUNT - rubber

2шт.

7

NLS

NO LONGER SERVICED

- mounting

2шт.

8

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

A169188

BRACKET

SUPPORT - left side, radiator

1шт.

13

A169187

BRACKET

SUPPORT - right side, radiator

1шт.

14

A145743

MOUNTING PARTS

MOUNT - rubber, radiator side

2шт.

15

A161631

SPACER

- side mount

2шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

20

A173247

GUARD

SHROUD - fan (Replaces A171735)

1шт.

21

A169545

BOLT

- hex washer head, 1/4 NC x 5/8 inch (Order 1 each of 113-113, 192-20 and 195-103)

7шт.

25

A170501

RADIATOR HOSE,45.00 mm ID x 366.00 mm, SAE 20R4 CLASS C PER SAE J20 OR SAE 20R4 CLASS D1 OR D2

45.00 mm ID x 340.00 mm, SAE 20R4 per SAE J20, Upper

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

upper #36, 1.81/2.75 Type F Worm

2шт.

27

A169930

HOSE,58.00 mm ID x 303.00 mm, SAE 20R4 CLASS C PER SAE J20 OR SAE 20R4 CLASS D1 OR D2

- lower

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - lower hose, 2-5/16 to 3-1/4 inch

2шт.

30

A145975

BAFFLE

- upper, radiator

1шт.

31

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Whizlock Hex Flg, 5/16"-18 x 1/2", Serr

4шт.

35

A164591

SEAL

- side panel, radiator

2шт.

36

A149296

SEAL

- upper, radiator

1шт.

37

A149643

SEAL

- baffle opening (Left of air intake)

1шт.

39

A149642

SEAL

- baffle opening (Right of air intake)

1шт.

40

A149644

SEAL

- cooler, Serial Range: tubes-baffle

1шт.

41

A149962

SEAL

- lower, radiator

1шт.

42

A172921

SEAL

- radiator shroud (Replaces A171316)

2шт.

43

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
