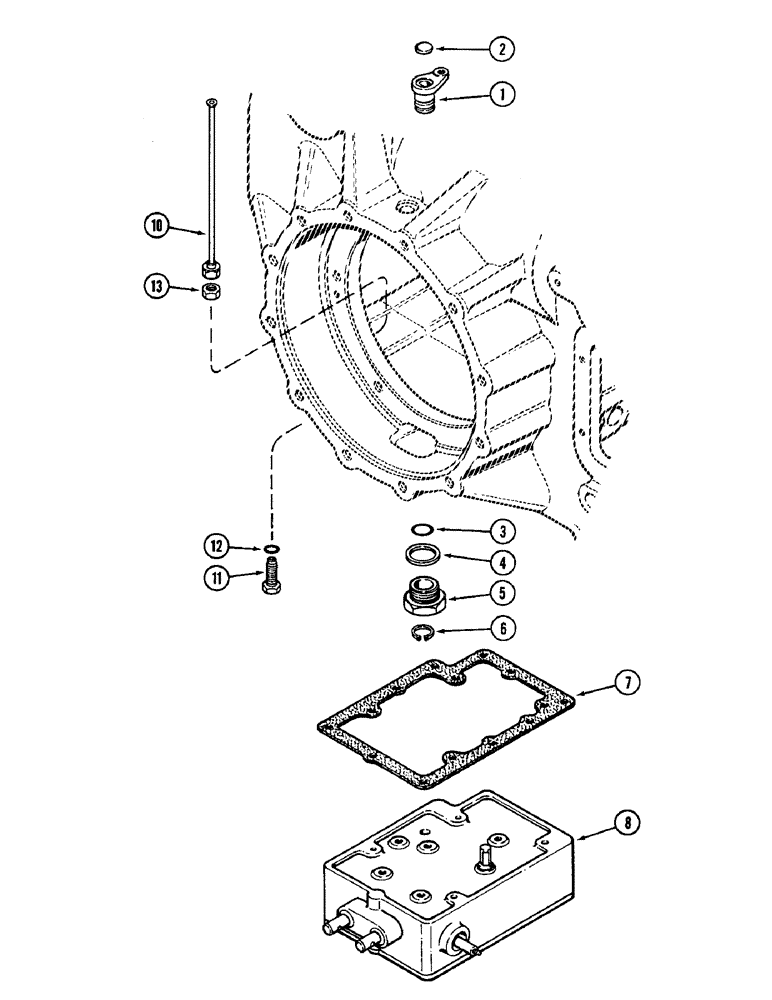

Запчасти Case IH 2096 (8-324) - DRAFT CONTROL SENSING LINKAGE (08) - HYDRAULICS

1

A162080

LEVER

- follow-up, draft sensing

1шт.

2

41-12

PLUG,Exp, 3/4"

- expansion, 3/4 inch

1шт.

3

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- plug

1шт.

4

A63447

GASKET

- bushing

1шт.

5

A64429

BUSHING

- lever, follow-up (In transmission case)

1шт.

6

B18208

SNAP RING,#100, Ext

lever #100, Ext

1шт.

7

A137621

GASKET

- housing, linkage

1шт.

8

REF

INSTRUCTION

HOUSING ASSEMBLY - linkage, draft control (See Figure 8-326)

1шт.

10

A141014

TUBE

- breather

1шт.

11

A141002

FITTING

- tube, transmission case

1шт.

13

218-1276

LOCK NUT,Blkhd, 1/2"-20

NUT - hex, 1/2 inch NF

1шт.

12

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk (10 x 14 x 2 mm)

1шт.
