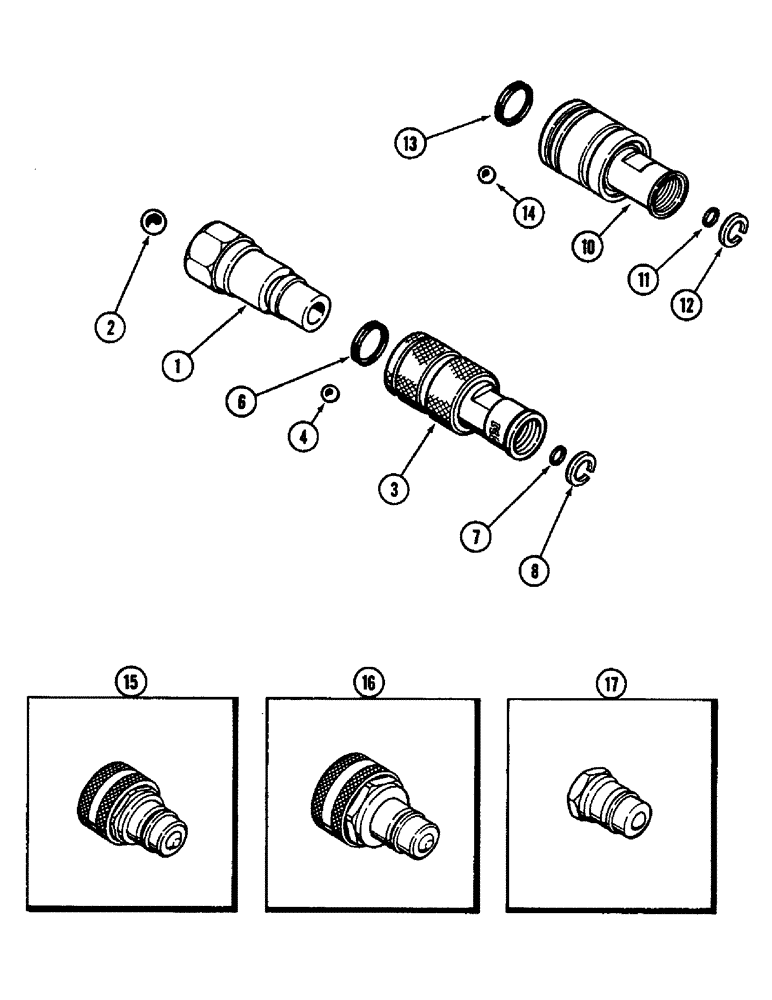

Запчасти Case IH 2096 (8-314) - REMOTE HYDRAULICS, QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick disconnect, male half, Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- 17/32 inch diameter (13 MM)

1шт.

3

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick disconnect, female half (Order A177478), Includes: Ref. 4 - 8

1шт.

4

211-5

BALL,3/16" Dia

- 3/16 inch diameter (5 MM)

10шт.

A47220

GASKET KIT

REPAIR KIT - coupling, Includes: Ref. 6 - 8

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

7

A47222

SEAL

- poppet

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock (Order A47220)

1шт.

10

A177478

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - female breakaway, Includes: Ref. 11 - 14

1шт.

11

A47222

SEAL

- valve

1шт.

12

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

13

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

14

221-355

BALL

- steel, 3/16 inch (5 MM) Diameter

10шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John Deere male half to J I Case A147888 female half), hydraulic coupling adapters

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half), hydraulic coupling adapters

1шт.

17

A160937

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except it has 1/2-14 inch internal thread), hydraulic coupling adapters

1шт.
