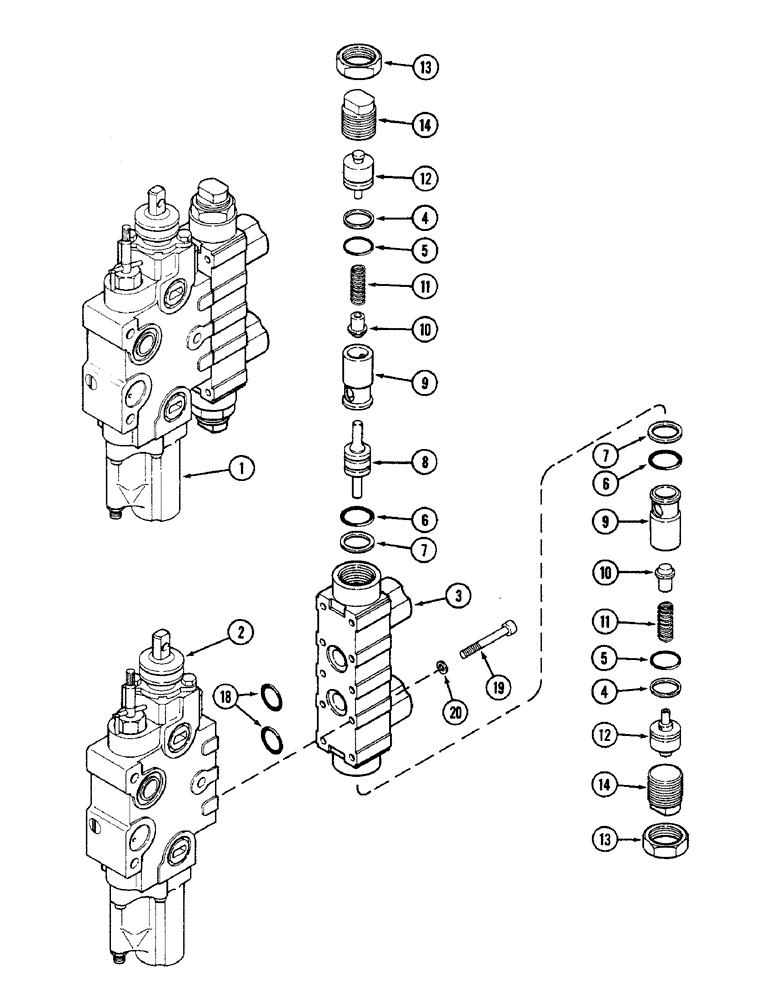

Запчасти Case IH 2096 (8-306) - REMOTE CONTROL VALVE, ADD ON FOR SECOND OR THIRD CIRCUIT WITH LOAD CHECK (08) - HYDRAULICS

1

A169456

VALVE

ASSEMBLY - remote control, Includes: Ref. 2 - 20 in this figure and parts in Figures 8-308 and 8-310

1шт.

2

REF

INSTRUCTION

BODY ASSEMBLY - remote valve

1шт.

A48946

VALVE

LOAD CHECK ASSEMBLY - valve, Includes: Ref. 3 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - load check valve (Order A48946)

1шт.

A48943

KIT

SEAL KIT - load check, Includes: Ref. 4 - 7

1шт.

4

N7509

RING

- backup

2шт.

5

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- retainer

2шт.

6

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- retainer

2шт.

7

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

RING - backup

2шт.

8

A46915

SPOOL

- load check

1шт.

9

A46916

SEAT

- load check

2шт.

10

A46917

SPOOL

POPPET - load check

2шт.

11

A46918

SPRING

- poppet

2шт.

12

A46919

RETAINER

- spring

2шт.

13

A46920

NUT

- lock, 1-1/16 inch

2шт.

14

A46921

PLUG

- load check

2шт.

A48944

KIT

SEAL KIT - load check cover, Includes: Ref. 18

1шт.

18

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- load check body

2шт.

19

61-432

HEX SOC SCREW,1/4"-20 x 2"

SCREW, Hex Soc Hd, 1/4"-20 x 2"

6шт.

20

192-402

LOCK WASHER

WASHER - lock, 1/4 inch

6шт.
