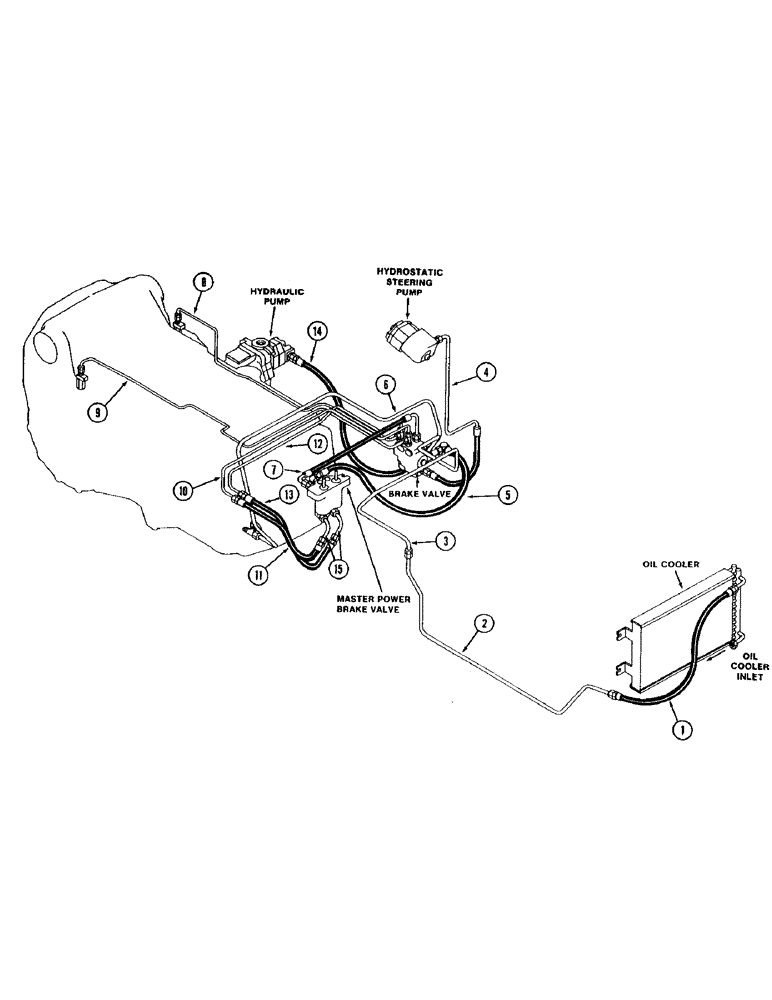

Запчасти Case IH 2096 (1-020) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX

1

Oil cooler outlet hose, Page 5-106

1шт.

2

Oil cooler outlet center tube, Page 5-106

1шт.

3

Oil cooler outlet to brake valve tube, Page 5-106

1шт.

4

Steering pump to brake valve hose, Page 5-104

1шт.

5

Master power brake valve inlet hose, Page 7-234

1шт.

6

Oil cooler return tube, Page 7-234

1шт.

7

Master power brake valve drain hose, Page 7-234

1шт.

8

Left rear brake tube, Page 7-234

1шт.

9

Right rear brake tube, Page 7-234

1шт.

10

Right front brake tube, Page 7-234

1шт.

11

Right front brake hose, Page 7-234

1шт.

12

Left front brake tube, Page 7-234

1шт.

13

Left front brake hose, Page 7-234

1шт.

14

Hydraulic pump to brake valve hose, Page 7-234

1шт.

15

Front brake hose to master brake valve tube, Page 7-234

1шт.
