Артикул
Название
Примечание
Количество
1
A169029
VALVE

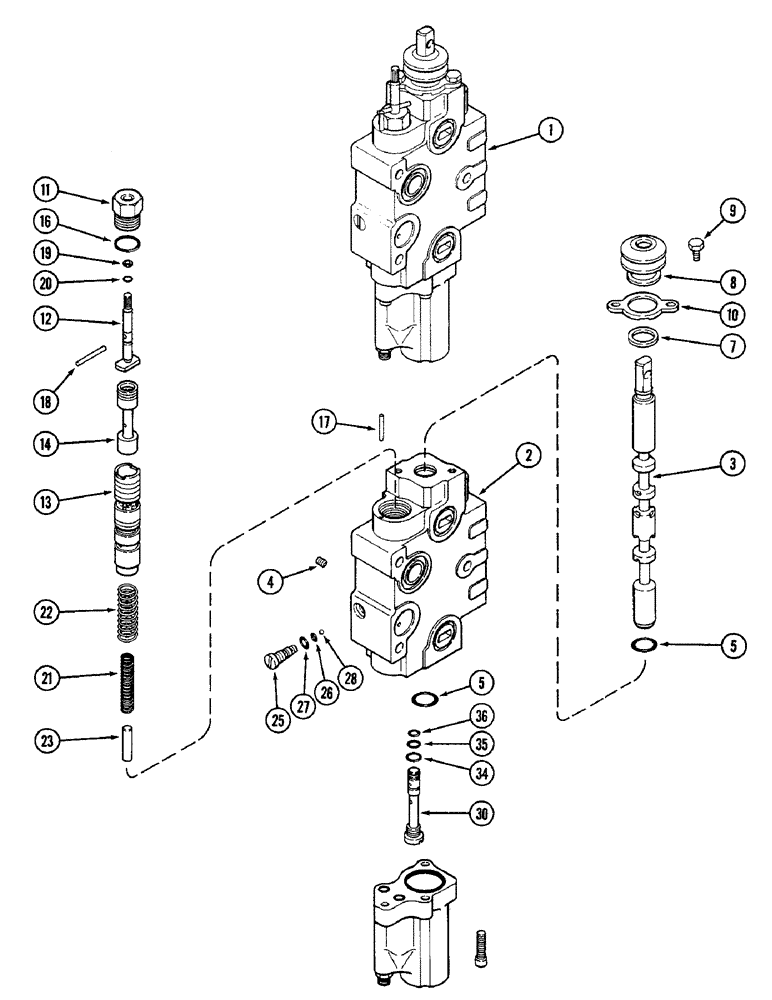

BODY ASSEMBLY - remote valve, Includes: Ref. 2 - 36 in this figure and parts in Figure 8-304
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - valve (Order A169029)
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - valve (Order A169029)
1шт.
4
A47105
PLUG
- expansion
1шт.
5
A27365
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
- body, 3/4 inch (19 MM) ID
2шт.
A48938
KIT
FILTER KIT - body and spool, Includes: Ref. 7 - 10
1шт.
7
A47205
SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk
FILTER - spool
1шт.
8
A47188
COVER
- dust
1шт.
9
86019274
SCREW,Hex, 1/4"-20 x 1/2", G5
- retainer
3шт.
10
A47196
RETAINER
- filter
1шт.
11
A48925
PLUG
HOUSING - flow control
1шт.
12
A48929
SHAFT
- adjusting
1шт.
13
A48956
TUBE
- flow control
1шт.
14
A48957
SPOOL
- flow control
1шт.
A48941
SEAL
KIT - flow control, Includes: Ref. 16 - 36
1шт.
16
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- housing, 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)
1шт.
17
138-61
LOCK PIN,1/8" x 1", Slotted
PIN, 1/8" x 1", Slotted
1шт.
18
138-63
LOCK PIN,1/8" x 1 1/4", Slotted
PIN, 1/8" x 1 1/4", Slotted
1шт.
19
D71056
RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk
- back up
1шт.
20
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- shaft
1шт.
21
A48960
SPRING
- inner
1шт.
22
A48959
SPRING
- outer
1шт.
23
A48937
PIN
- guide, spring
1шт.
A47210
PLUG
ASSEMBLY - shuttle, secondary, Includes: Ref. 25 - 27
1шт.
25
A47204
PLUG
- shuttle
1шт.
A48939
KIT
SEAL KIT - shuttle, Includes: Ref. 26 and 27
1шт.
26
A47101
O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro
-008, 90 Duro, .176" ID x .070" Thk, shuttle
1шт.
27
218-5002
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, shuttle
1шт.
28
211-255
BALL,3/16 Dia
(5 mm), chrome steel 3/16 Dia
1шт.
30
A47209
SPOOL
SHUTTLE ASSEMBLY - primary, Includes: Ref. 34 - 36
1шт.
N6632
SEAL KIT
SEAL KIT - shuttle, Includes: Ref. 34 - 36
1шт.
34
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- shuttle, 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 MM)
1шт.
35
D31411
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
-010, 90 Duro, .239" ID x .070" Thk (6 mm ID), shuttle
1шт.
36
A47223
O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro
- shuttle, 7/32 inch (6 MM) ID
1шт.
Выбрано товаров: 34
