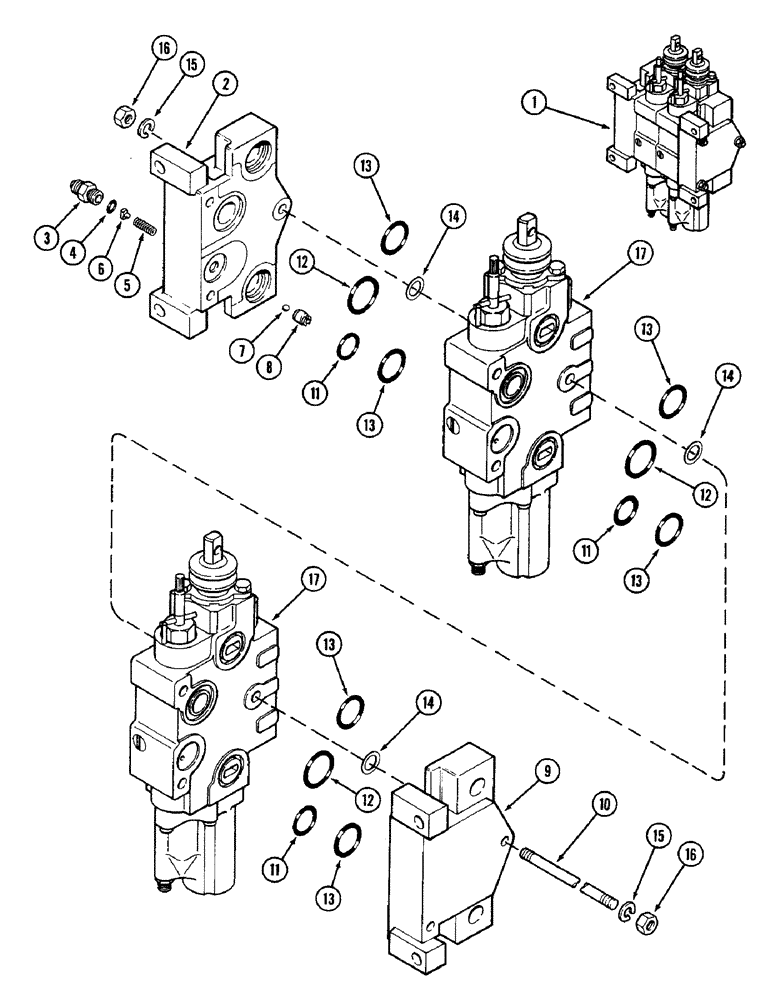

Запчасти Case IH 2096 (8-298) - REMOTE HYDRAULICS, CONTROL VALVE ASSEMBLY, TWO SECTION WITHOUT LOAD CHECK (08) - HYDRAULICS

1

A167473

LOCK VALVE

VALVE ASSEMBLY - remote, 2 spool, Includes: Ref. 2 - 17

1шт.

2

A47169

COVER

ASSEMBLY - inlet, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 10 x 2 mm)

1шт.

5

A47176

SPRING

- valve, 11/16 inch (18 MM) Free length

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-257

BALL,1/4" Dia

(6 mm) 1/4" Dia

1шт.

8

A47202

SEAT

- valve

1шт.

9

A47113

COVER

- front

1шт.

A48919

SEAL

KIT - valve seal and stud (Order components), Includes: Ref. 10 - 15

1шт.

10

A147506

STUD

- 3/8 NC x 8 inch

3шт.

11

G34846

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

- 3/4 x 1 x 1/8 inch (19 x 25 x 3 MM)

3шт.

12

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8 inch (25 x 32 x 3 MM)

3шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32 inch (24 x 28 x 2 MM)

6шт.

14

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (13 x 19 x 0.08 mm) .0030" Thk

9шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

17

REF

INSTRUCTION

BODY ASSEMBLY - valve spool (See Figure 8-302)

2шт.
