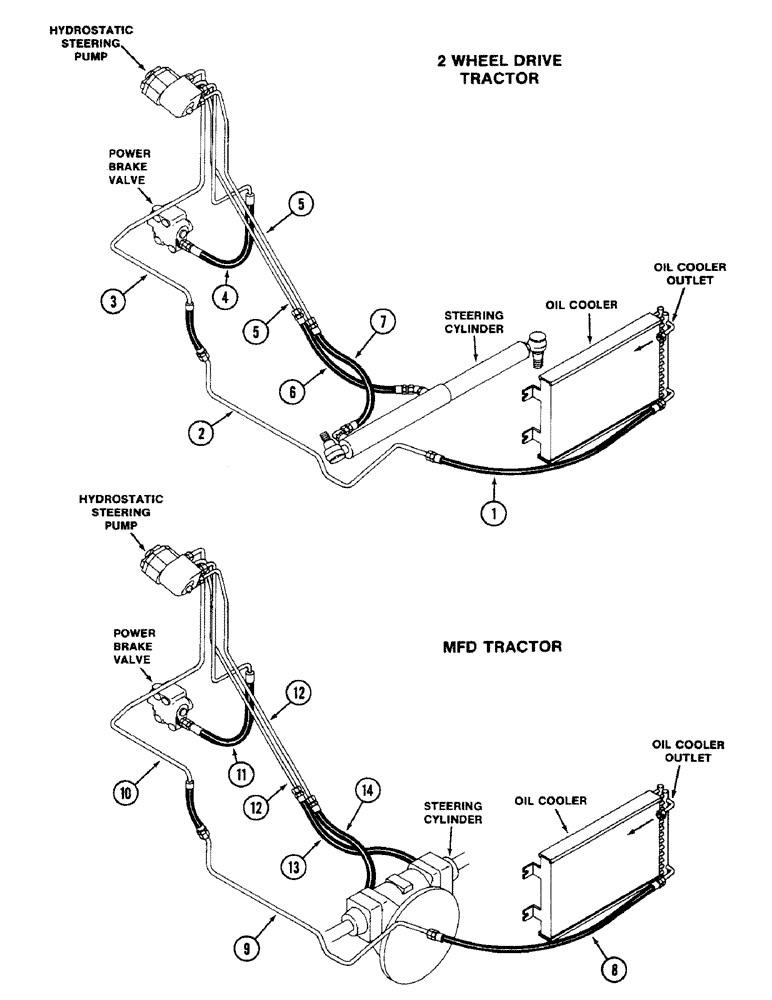

Запчасти Case IH 2096 (1-018) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE (00) - PICTORIAL INDEX

1

Oil cooler inlet hose, Page 5-106

1шт.

2

Oil cooler to steering pump tube, Page 5-106

1шт.

3

Steering pump to cooler tube, Page 5-106

1шт.

4

Steering pump to brake valve hose, Page 5-106

1шт.

5

Steering pump to cylinder hose, Page 5-104

1шт.

6

Left steering cylinder hose, Page 5-104

1шт.

7

Right steering cylinder hose, Page 5-104

1шт.

8

Oil cooler inlet hose, Page 5-106, mechanical front drive (MFD)

1шт.

9

Oil cooler to steering pump tube, Page 5-106, mechanical front drive (MFD)

1шт.

10

Steering pump to cooler tube, Page 5-106, mechanical front drive (MFD)

1шт.

11

Steering pump to brake valve hose, Page 5-106, mechanical front drive (MFD)

1шт.

12

Steering pump to cylinder hose, Page 5-104, mechanical front drive (MFD)

1шт.

13

Left steering cylinder hose, Page 5-104, mechanical front drive (MFD)

1шт.

14

Right steering cylinder hose, Page 5-104, mechanical front drive (MFD)

1шт.
