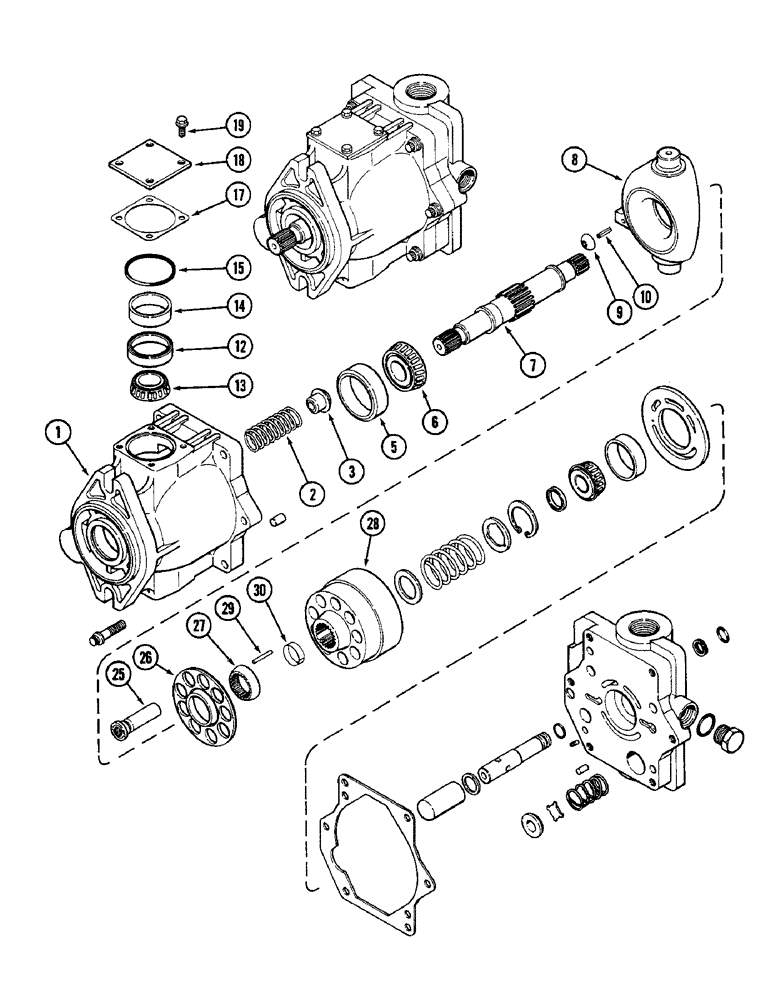

Запчасти Case IH 2096 (8-270) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A166504
PUMP
ASSEMBLY - hydraulic, complete, Includes: Ref. 1 - 30 in this figure and parts in Figures 8-268, 8-272 - 8-276
1шт.
1346425C1
REMAN-HYD PUMP
2096 (PRIOR TO S/N 17897500) (1/84-12/86)
1шт.
1346426C1
CORE-HYDRAULIC PUMP
Return Number
1шт.
1
A47278
HOUSING
- piston pump
1шт.
2
A47281
SPRING
- housing
1шт.
3
A47282
PLUG
SEAT - spring
1шт.
5
D59595
TAPERED BEARING
CUP - bearing
1шт.
6
A31272
ROLLER BEARING,1" ID x 0.8125"
CONE - bearing, 1 inch ID (25 MM)
1шт.
7
A47289
SHAFT
- drive, piston pump
1шт.
8
A47284
YOKE
- swing
1шт.
9
A47283
SEAT
- spherical
1шт.
10
138-88
LOCK PIN,3/16" x 1/2", Slotted
PIN, 3/16" x 1/2", Slotted
1шт.
12
D29267
BEARING CUP,1.98" OD x 0.42"
CUP - bearing, 1-63/64 inch O.D. (50 MM)
1шт.
13
D53168
TAPERED BEARING
CONE - bearing
1шт.
14
A47286
SPACER
- yoke bearing
2шт.
15
S5730
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
- cover
2шт.
A47287
KIT
- yoke bearing shim, Includes: Ref. 17
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 0.003 inch (0.076 MM) (3 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 0.005 inch (0.127 MM) (2 in kit)
1шт.
17
NSS
NOT SOLD SEPARAT
SHIM - 0.010 inch (0.254 MM) (2 in kit)
1шт.
18
A47288
COVER
- housing
2шт.
19
121-3
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
8шт.
25
A47334
PACKAGE
KIT - piston, Includes 9 pistons and 9 shoes
1шт.
26
A47292
PLATE
- shoe, piston pump
1шт.
Part of Block Kit, P/N N8303
1шт.
27
A47293
WASHER
- spherical
1шт.
Part of Block Kit, P/N N8303
1шт.
28
A47295
BLOCK
- cylinder
1шт.
Part of Block Kit, P/N N8303
1шт.
29
A47296
PIN
- cylinder block
3шт.
Part of Block Kit, P/N N8303
1шт.
30
A47297
SNAP RING,7.11mm Thk, Int
- pin
1шт.
Part of Block Kit, P/N N8303
1шт.
A47567
KIT
- seal and gasket, complete pump (See Figure 8-268)
1шт.
N8303
KIT
BLOCK KIT - rotating, Includes Refs. 26 through 30 in this figure and parts in Figure 8-272
1шт.
Выбрано товаров: 35
