Запчасти Case IH 2096 (1-016) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX

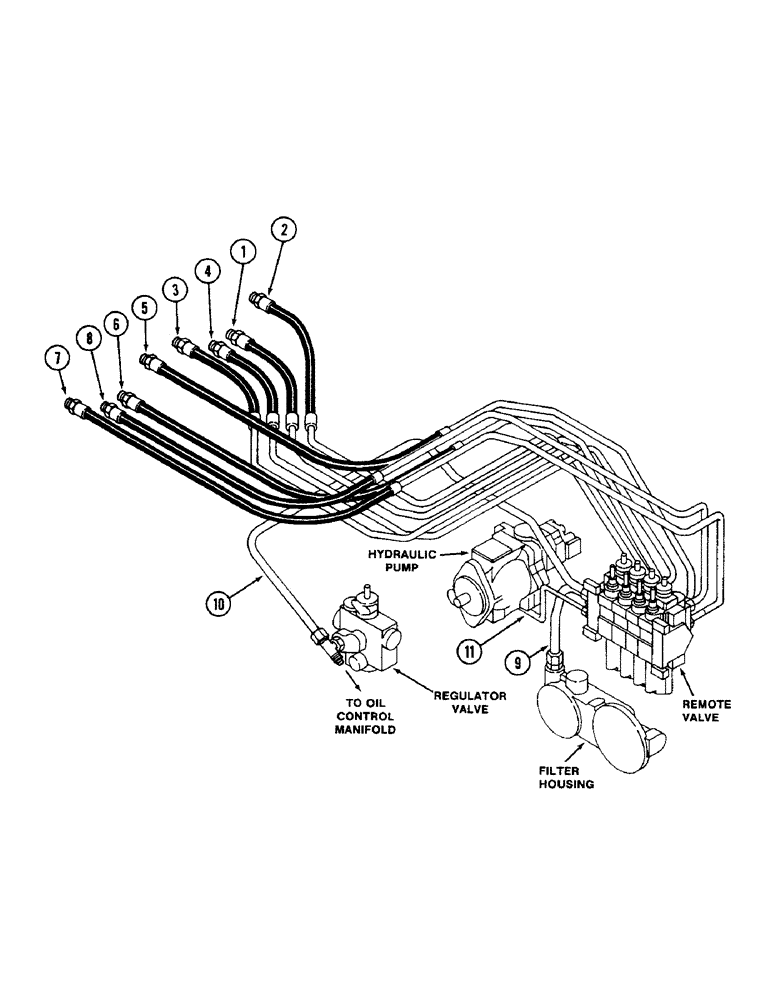

Схема запчастей Case IH 2096 - (1-016) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
1
11
3
9
2
6
7
5
10
4
8

Артикул

Название

Примечание

Количество

1

No. 1 remote coupling hose, Pages 8-282, 284

1шт.

2

No. 2 remote coupling hose, Pages 8-282, 284

1шт.

3

No. 3 remote coupling hose, Pages 8-282, 284

1шт.

4

No. 4 remote coupling hose, Pages 8-282, 284

1шт.

5

No. 5 remote coupling hose, Pages 8-288, 292

1шт.

6

No. 6 remote coupling hose, Pages 8-288, 292

1шт.

7

No. 7 remote coupling hose, Page 8-296

1шт.

8

No. 8 remote coupling hose, Page 8-296

1шт.

9

Remote valve to filter housing tube, Pages 8-282, 284

1шт.

10

Regulator valve to remote valve tube, Pages 8-282, 284

1шт.

11

Pump to remote valve tube, Page 8-256

1шт.

Выбрано товаров: 11
