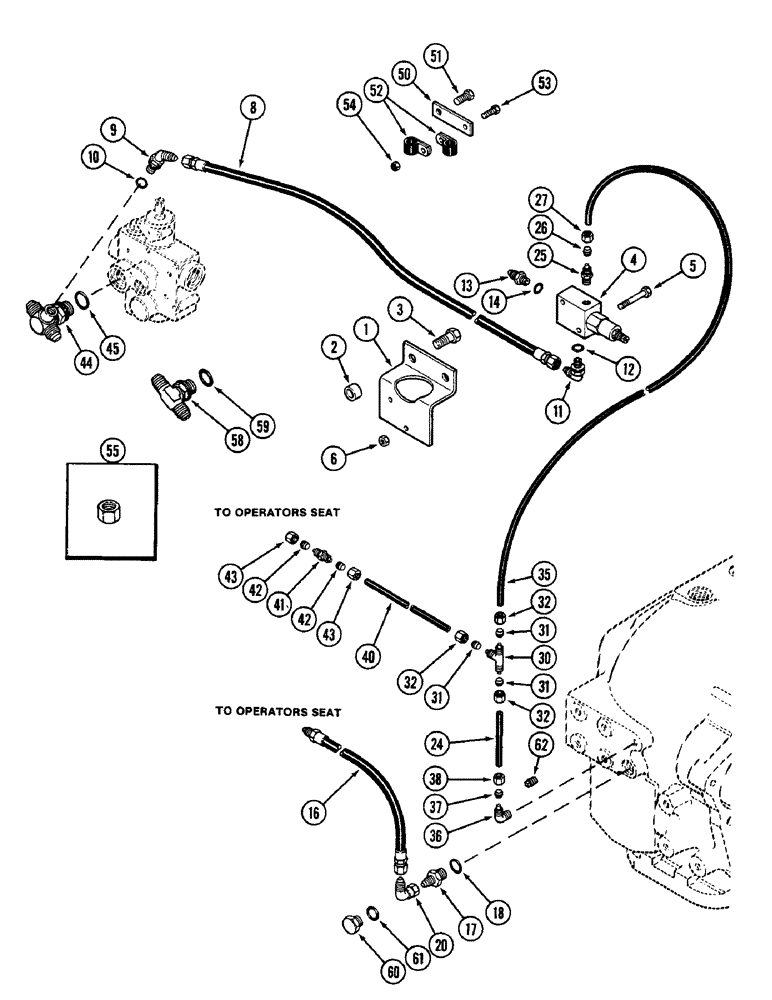

Запчасти Case IH 2096 (8-264) - HYDRAULICS, SEAT AIR/OIL SUSPENSION (08) - HYDRAULICS

1

A176174

BRACKET

PLATE - mounting, seat valve

1шт.

2

H142679

SPACER

- mounting plate

2шт.

3

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

- hex, 5/8 NC x 1-3/8 inch

2шт.

4

A169536

VALVE

ASSEMBLY - pressure regulator (See Figure 8-266)

1шт.

5

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

8

A176275

HOSE,6.35 mm ID x 1676.00 mm, SAE 100R1

- Valve supply 6.35 mm ID x 1676.00 mm, SAE 100R1

1шт.

REF: #8 HOSE - IF #8 IS A STEEL TUBE THE P/N IS THEN A181865. 23-MAY-96

1шт.

9

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 45 degree adjustable, 3/8 tube 9/16-18 inch thread, Includes: Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

11

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread, Incl. Ref. 12

1шт.

12

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 MM)

1шт.

13

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 thread x 1/4 tube 7/16-20 inch thread, Includes: Ref. 14

1шт.

14

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 MM)

1шт.

16

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

Extension, Seat Drain 6.35 mm ID x 533.40 mm, SAE 100R1

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR ASSEMBLY - straight, 3/8 tube 9/16-18 thread x 1/2 tube 3/4-16 inch thread, Includes: Ref. 18

1шт.

20

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 3/8 tube 9/16-18 inch thread

1шт.

24

A50961

NUT

TUBE - bypass (Order A167912 and, Serial Range: cut-length)

1шт.

25

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 26 and 27

1шт.

26

222-2611

SLEEVE

- 3/8 tube

1шт.

27

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

30

222-2751

HYD CONNECTOR

TEE ASSEMBLY - tube, 3/8 tube 17/32-24 inch thread, Includes: Ref. 31 and 32

1шт.

31

222-2611

SLEEVE

- 3/8 tube

3шт.

32

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

3шт.

35

A63670

TUBE

- nylon (Order A167912 and, Serial Range: cut-length)

1шт.

36

222-2646

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

ASSEMBLY - 90 degree, 3/8 tube 17/32-24 thread x 1/8 inch PT, Includes: Ref. 37 and 38

1шт.

37

222-2611

SLEEVE

- 3/8 tube

1шт.

38

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

1шт.

40

A176573

TUBE - nylon, seat drain (Order A167912 and, Serial Range: cut-length)

1шт.

41

222-2651

HYD CONNECTOR,17/32"-24

UNION ASSEMBLY - tube, 3/8 tube 17/32-24 inch thread, Includes: Ref. 42 and 43

1шт.

42

222-2611

SLEEVE

- 3/8 tube

2шт.

43

222-2601

NUT

NUT - hex, 3/8 tube 17/32-24 inch thread

2шт.

44

A176193

NIPPLE, LUBE

TEE ASSEMBLY - regulator valve, special, Includes: Ref. 45

1шт.

REF: #44 TEE ASSY - IF #8 IS A STEEL TUBE THIS TEE SHOULD BE P/N 218-5578. 23-MAY-96

1шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 MM)

1шт.

50

A176189

PLATE ASSY.

PLATE - clamp mounting

1шт.

51

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

52

49768

CLIP

- tube

2шт.

53

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

1шт.

55

218-335

CAP,37 Degree, 1 1/16"-12

NUT - hex cap, 3/4 tube 1-1/16-12 inch thread

1шт.

58

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - adjustable branch, 3/4 tube 1-1/16-12 inch thread (Without air/oil seat), Includes: Ref. 59

1шт.

59

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 MM)

1шт.

60

214389

PLUG,3/4" - 16 ORB

Assy, 1/2 tube (Without air/oil seat), Includes Ref. 61 Hex Hd, 3/4"-16 ORB

1шт.

62

221-11

PLUG,Sq Hd, 1/8"-27

- square head pipe, 1/8 inch PT (Without air/oil seat)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.

61

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.
