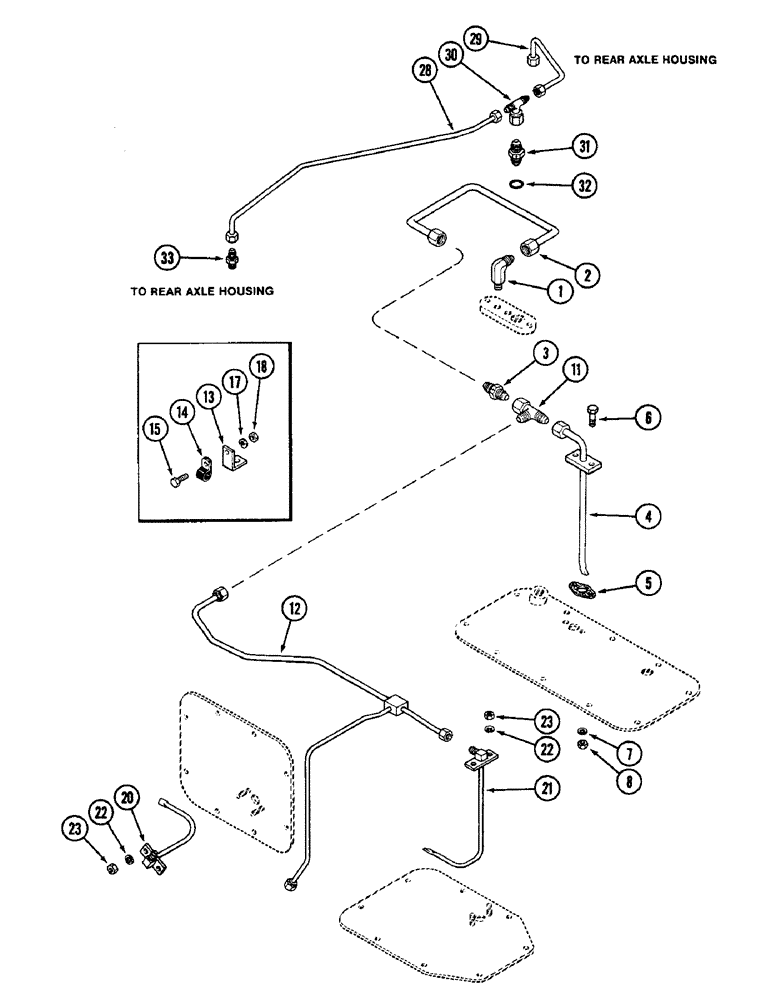

Запчасти Case IH 2096 (8-262) - HYDRAULICS, TRANSMISSION LUBRICATION (08) - HYDRAULICS

1

218-1084

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-12 NPTF, XLG

- 90 degree, 1/2 tube 3/4-16 thread x 1/4 inch PT

1шт.

2

A167843

TUBE

- supply, spiral bevel

1шт.

3

A160216

FITTING

VALVE - check, lubrication tube

1шт.

4

A165324

PIPE

TUBE - spiral bevel lubrication

1шт.

5

A38212

GASKET

- lubrication tube

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 1/2 tube 3/4-16 inch thread

1шт.

12

A177203

TUBE

- lubrication, transmission gear

1шт.

13

A162527

BRACKET

- clamp, tube retaining

2шт.

14

49838

CLAMP

- retaining, tube

2шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

20

A179070

PIPE

TUBE - lubrication, second and third gear

1шт.

21

A168919

PIPE

TUBE - lubrication, transfer gear

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

28

A180575

TUBE

- planetary lubrication, right hand (Transmission serial no. 16246636 and after)

1шт.

29

A180574

TUBE

- planetary lubrication, left hand (Transmission serial no. 16246636 and after)

1шт.

30

218-856

TEE,37 Degree, 9/16"-18, x 3/4"-16, Fem Sw Br

ASSEMBLY - swivel branch, 3/8 x 3/8 tube 9/16-18 thread x 1/2 tube 3/4-16 inch thread

1шт.

31

A160216

FITTING

VALVE ASSEMBLY - check (Transmission serial no. 16246636 and after)

1шт.

33

A149515

CONNECTOR, ELEC

CONNECTOR - straight (Transmission serial no. 16246636 and after)

2шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.
