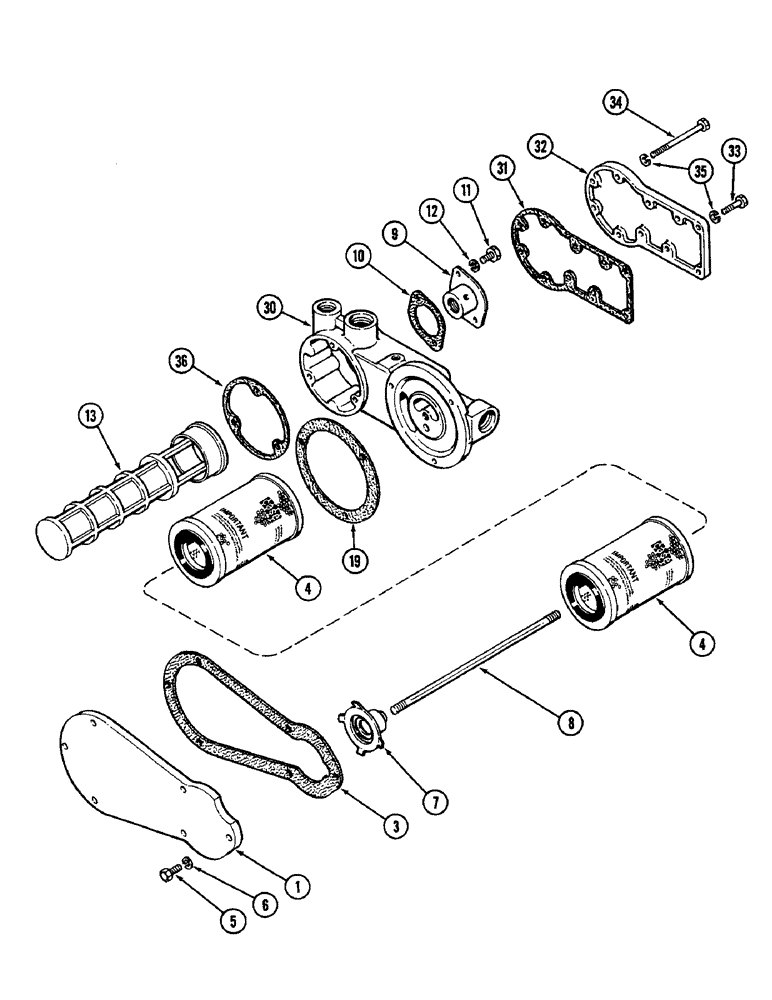

Запчасти Case IH 2096 (8-258) - HYDRAULICS, OIL FILTER AND SCREEN (08) - HYDRAULICS

1

A141407

GASKET

COVER - right side

1шт.

3

A141408

GASKET

- cover

1шт.

4

A176593

HYDRAULIC OIL FILTER

KIT - filter element (Set of 2)

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

7

A164424

VALVE

- by-pass

1шт.

8

H237750

CONTROL BLOCK

STUD - filter element, 1/2 NC x 14-1/4 inch

1шт.

9

A63343

REGULATOR

ASSEMBLY - pressure, filter oil

1шт.

10

A147062

GASKET

-, Serial Range: regulator-housing

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

A142025

SCREEN

- inlet, oil

1шт.

REF: #13 A142025 SCREEN IS NOT SHIELDED. A SHIELDED SCREEN IS P/N A68001. 23-MAY-96

1шт.

19

A149986

GASKET

- housing

1шт.

30

A167841

HOUSING

- filter cover, left side

1шт.

31

A161436

GASKET

- housing cover

1шт.

32

A161437

COVER

- filter housing

1шт.

33

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

8шт.

34

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

4шт.

35

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

12шт.

36

A149985

GASKET

- housing

1шт.
