Запчасти Case IH 2096 (7-246) - PARKING HAND BRAKE (07) - BRAKES

1

REF

INSTRUCTION

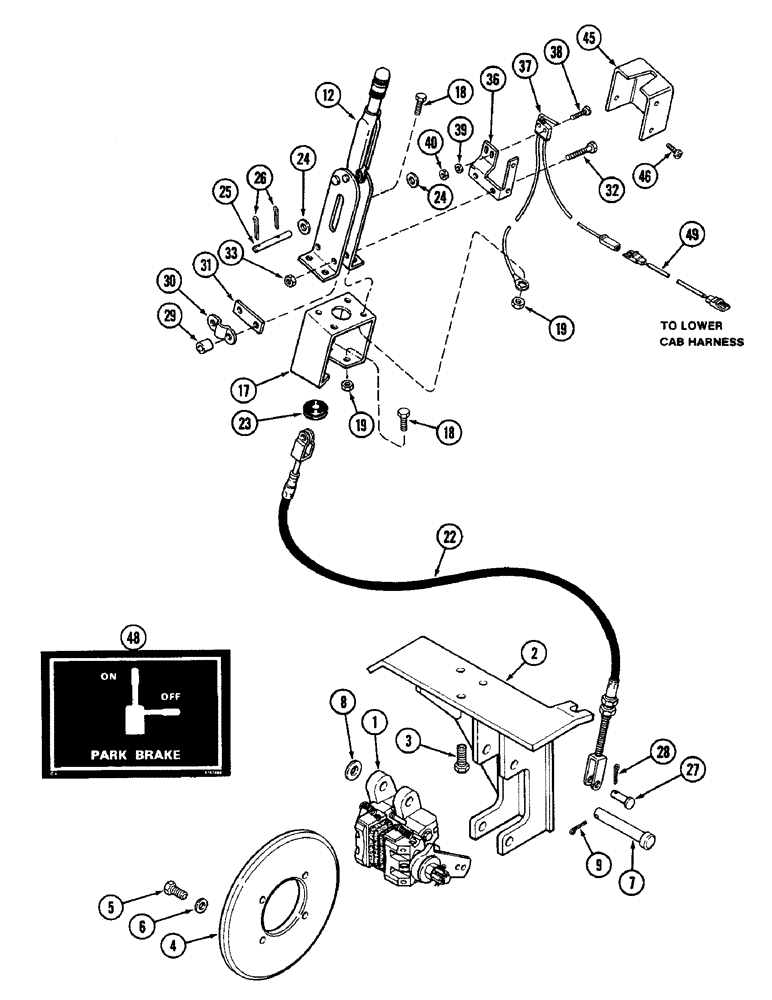

BRAKE ASSEMBLY - mechanical caliper disc (See Figure 7-248)

1шт.

2

A158625

BRACKET

- disc brake

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

4

A156871

DISC

- parking brake

1шт.

5

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

4шт.

6

A50820

WASHER

- mounting bolt

4шт.

7

A158671

PIN

- clevis, brake support

2шт.

8

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 MM)

2шт.

12

A75744

LEVER

ASSEMBLY - hand brake

1шт.

17

A176453

SUPPORT

- hand brake

1шт.

18

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

8шт.

22

A176991

CABLE

- hand brake

1шт.

23

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- control cable

1шт.

24

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 MM)

2шт.

25

A176410

PIN

- clevis

1шт.

26

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

27

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

28

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

29

A31238

BUSHING

SPACER - clamp, cable

2шт.

30

A76109

CLAMP

- cable

1шт.

31

A75745

BUSHING

SHIM - clamp, cable

1шт.

32

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

33

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

2шт.

36

A176408

BRACKET

- switch, hand brake

1шт.

37

A176460

IGNITION SWITCH

SWITCH - hand brake

1шт.

38

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

- slotted pan head, no. 6 x 1 inch

2шт.

39

195-507

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch (4 x 10 x 1 MM)

2шт.

40

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

2шт.

45

A176409

COVER

- switch, brake light

1шт.

46

187-1333

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head Phillips, no. 10-16 x 3/4 inch

3шт.

48

A167688

DECAL

- brake cover

1шт.

49

A176459

ELECTRICAL WIRE

WIRE - hand brake

1шт.

9

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

PIN - cotter, 1/8 x 1-1/8 inch

2шт.
