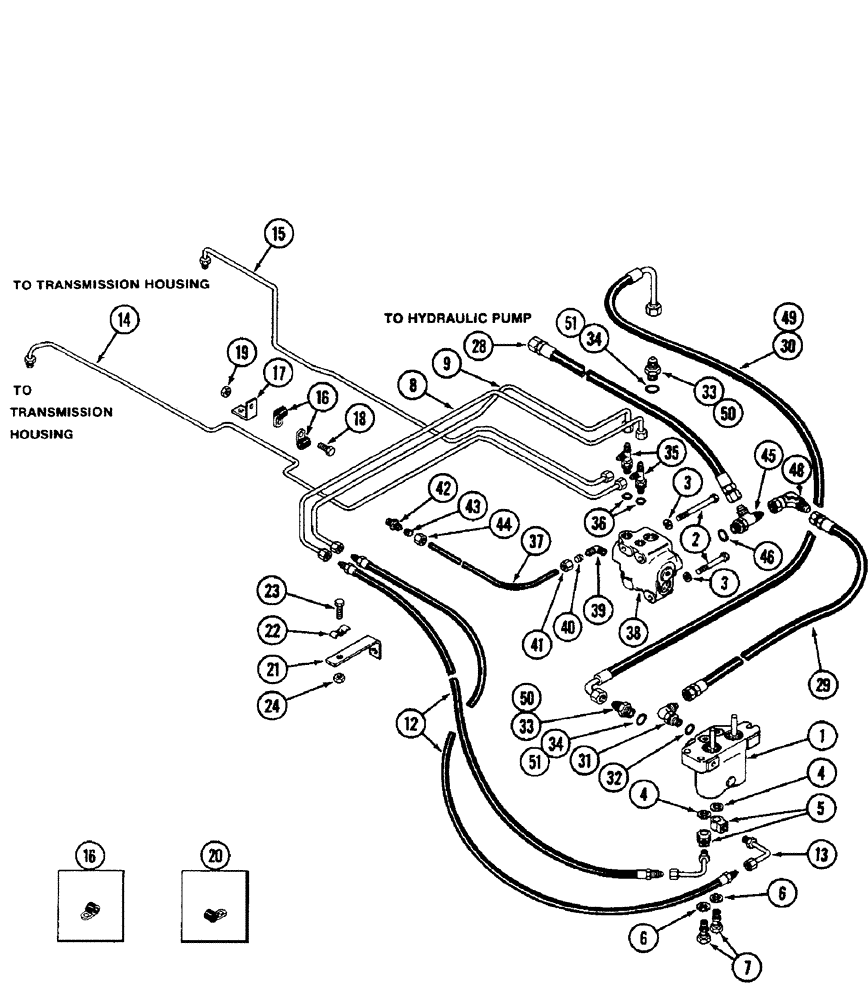

Запчасти Case IH 2096 (7-234) - BRAKE VALVE, HOSES AND TUBES (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - power brake, master, see Figure 7-240 or 7-242)
1шт.
6
51200242
SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk
- outer, 19/32 x 13/16 x 1/32 inch (15 x 21 x 1 MM)
2шт.
12
A164950
HYDRAULIC HOSE,0.25" ID x 15.50", SAE 100R1 per SAE J517
- Brake, Front 0.25" ID x 15.50", SAE 100R1 per SAE J517
2шт.
28
A166607
HYDRAULIC HOSE,0.50" ID x 37.00", SAE 100R2 Type A per SAE J517
- Hydraulic pump to valve 0.50" ID x 37.00", SAE 100R2 Type A per SAE J517
1шт.
29
A180958
HOSE,0.25" ID x 28.00", SAE J516, SAE 100R1, SAE J343, SAE J517
- inlet, master cylinder (Replaces A166601) (See ref 48) 0.25" ID x 28.00", SAE J516, SAE 100R1, SAE J343, SAE J517
1шт.
30
A169730
HOSE ASSY.,0.50" ID x 20.00", SAE 100R3 per SAE J517
HOSE ASSY - Drain, Master cylinder (Prior to tractor S/N. 9938100, order Ref. 49 and 50) 0.50" ID x 20.00", SAE 100R3 per SAE J517
1шт.
31
218-5280
ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring
ASSEMBLY - 90 degree adjustable, 1/2 tube 3/4-16 thread x 3/8 tube 9/16-18 inch thread, Includes: Ref. 32
1шт.
33
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread (Prior to tractor serial no. 9938100, order ref 49 and 50), Incl. Ref 34
2шт.
35
218-5289
TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
ASSEMBLY - adjustable, 1/4 tube 7/16-20 inch thread, Includes: Ref. 36
2шт.
36
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 MM)
1шт.
39
222-2641
ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp
ASSEMBLY - 90 degree, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 40 and 41
1шт.
42
222-2626
FITTING,17/32"-24 x 1/4" NPT, Comp
CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 43 and 44
1шт.
45
218-5242
TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
ASSEMBLY - adjustable, 1/2 tube 3/4-16 inch thread, Includes: Ref. 46
1шт.
48
218-5230
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
ASSEMBLY - 90 degree swivel, 1/2 tube 3/4-16 inch thread
1шт.
49
A177847
HOSE
- drain, master cylinder (Tractor serial no. 9938100 and after)
1шт.
50
218-5359
HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring
CONNECTOR ASSEMBLY - straight, 1/4 tube 7/16-20 thread x 1/2 tube 3/4-16 inch thread (Tractor serial no. 9938100 and after), Includes: Ref. 51
2шт.
32
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 x 3/32 inch (13 x 16 x 2 MM)
1шт.
34
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 x 3/32 inch (13 x 16 x 2 MM)
1шт.
46
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 x 3/32 inch (13 x 16 x 2 MM)
1шт.
51
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 x 3/32 inch (13 x 16 x 2 MM)
1шт.
