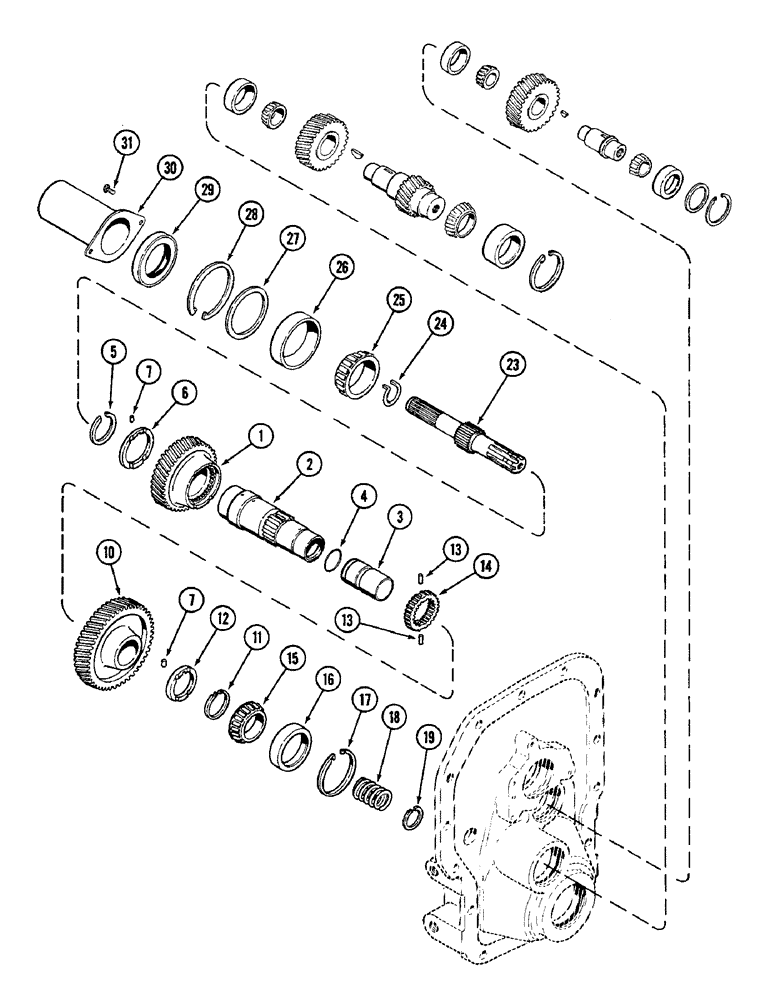

Запчасти Case IH 2096 (6-230) - PTO OUTPUT SHAFT, DUAL SPEED, 540 - 1000 RPM (06) - POWER TRAIN

1

A152182

GEAR

- output, 1000 RPM (40 teeth)

1шт.

2

A142886

SPLINED COUPLING

SLEEVE - output gear, outer

1шт.

3

A142887

SLEEVE

- output gear, inner

1шт.

4

A59001

O-RING,1.612" ID x 1.818" OD

- 1-13/16 inch (46 MM)

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

5

A27233

RING

- snap, thrust washer

1шт.

6

A64309

WASHER,70.28mm ID x 88.9mm OD x 5.59mm Thk

- thrust, rear

1шт.

7

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

2шт.

10

A152183

GEAR

- output, 540 RPM (49 teeth)

1шт.

11

A150145

RING

- snap, output shaft

1шт.

12

A64308

WASHER,58.95mm ID x 76.2mm OD x 5.59mm Thk

- thrust, front

1шт.

13

A62026

PIN

- collar, 5/16 x 23/32 inch

2шт.

14

A58210

COLLAR

- shift

1шт.

15

A150146

ROLLER BEARING,57.163 mm ID x 22.022 mm

CONE - front bearing, 2-1/4 inch ID (57 MM)

1шт.

16

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

CUP - front bearing, 3-7/8 inch OD (98 MM)

1шт.

17

A151609

RING

- snap, spacer, 0.062 inch (1.55 MM)

1шт.

17

A151608

RING

- snap, spacer, 0.067 inch (1.60 MM)

1шт.

17

A151607

RING

- snap, spacer, 0.072 inch (1.80 MM)

1шт.

17

A151606

RING

- snap, spacer, 0.077 inch (1.97 MM)

1шт.

17

A152252

RING

- snap, spacer, 0.082 inch (2.09 MM)

1шт.

17

A152251

RING

- snap, spacer, 0.087 inch (2.21 MM)

1шт.

17

A152250

RING

- snap, spacer, 0.092 inch (2.34 MM)

1шт.

17

A152249

RING

- snap, spacer, 0.097 inch (2.46 MM)

1шт.

17

A152248

RING

- snap, spacer, 0.103 inch (2.62 MM)

1шт.

18

A58213

SPRING

- shift collar, 2-23/64 inch (60 MM) Free length

1шт.

19

A58212

RING

- snap, spring retaining

1шт.

23

A140655

SHAFT

- output, dual speed

1шт.

24

A61029

SNAP RING,3.48mm Thk, Int

- snap, output shaft

1шт.

25

R32215

ROLLER BEARING,2.7559" ID x 4.3307" OD x 1.02363"

CONE - rear bearing, 2-3/4 inch ID (70 MM)

1шт.

26

R32214

CUP

- rear bearing, 4-11/32 inch OD (110 MM)

1шт.

27

A152659

SPACER

- bearing, rear

1шт.

28

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , rear brg 4.331", Int, #433

1шт.

29

A140930

OIL SEAL

- oil

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49420

1шт.

30

A142425

GUARD

- output shaft

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

A49420

SEAL

KIT, PTO clutch and brake seal, Includes: Ref. 4 and 29 in this figure and parts in Figure 6-226

1шт.
