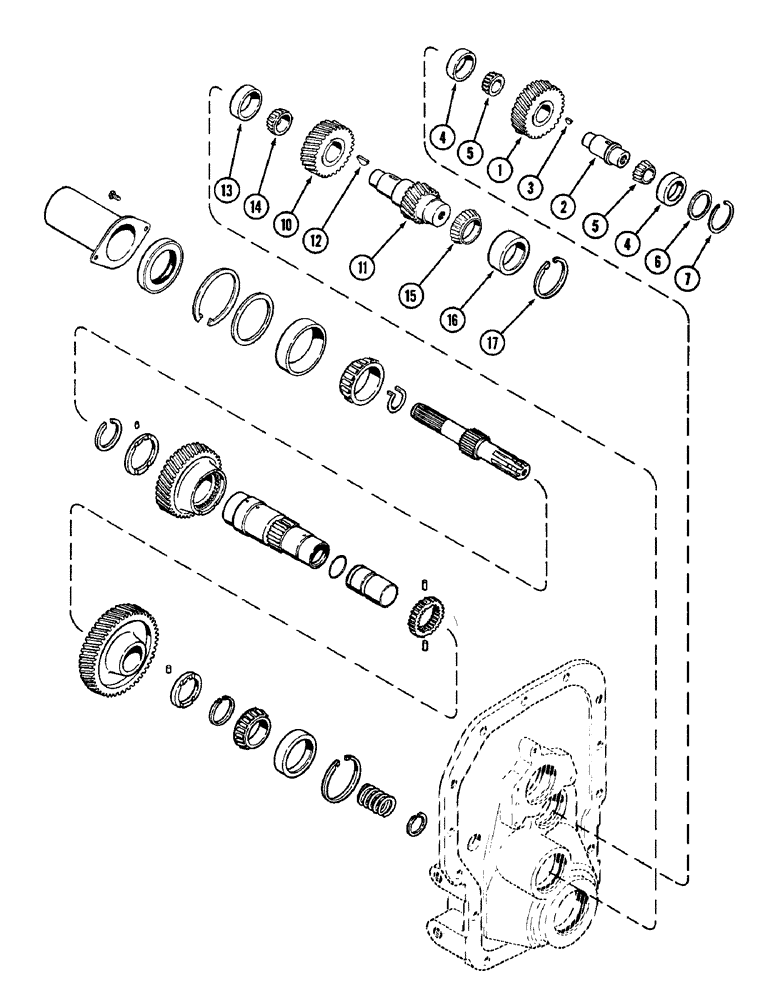

Запчасти Case IH 2096 (6-228) - PTO IDLER GEARS AND SHAFTS, DUAL SPEED, 540 - 1000 RPM (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A150952
GEAR
- idler, first (29 teeth)
1шт.
2
A142872
SHAFT
- first idler gear
1шт.
3
126-115
WOODRUFF KEY,#8, 5/32" x 3/4", HT
1шт.
4
D31948
BEARING CUP,2.5312" OD x 0.6563"
CUP - bearing, first idler, 2-17/32 inch OD (64 MM)
2шт.
5
D31949
ROLLER BEARING,30.175 mm ID x 21.636 mm
CONE - bearing, first idler, 1-3/16 inch ID (30 MM)
2шт.
6
A151692
BUSHING
SPACER - first idler gear, 0.045 inch (1.16 MM)
1шт.
6
A151691
BUSHING
SPACER - first idler gear, 0.050 inch (1.27 MM)
1шт.
6
A151346
BUSHING
SPACER - first idler gear, 0.055 inch (1.39 MM)
1шт.
6
A151345
BUSHING
SPACER - first idler gear, 0.060 inch (1.52 MM)
1шт.
6
A151344
BUSHING
SPACER - first idler gear, 0.065 inch (1.65 MM)
1шт.
6
A151343
BUSHING
SPACER - first idler gear, 0.070 inch (1.78 MM)
1шт.
6
A151342
BUSHING
SPACER - first idler gear, 0.075 inch (1.93 MM)
1шт.
6
A151341
BUSHING
SPACER - first idler gear, 0.080 inch (2.03 MM)
1шт.
7
A140746
SNAP RING,#253, 2.706", Int
RING - snap, first idler gear
1шт.
10
A155613
GEAR
- idler, second (29 teeth)
1шт.
11
A155612
SHAFT
- second idler gear
1шт.
12
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
13
A27631
CUP
- outer bearing, second idler, 2-7/8 inch OD (73 MM)
1шт.
14
A29465
ROLLER BEARING,34.938 mm ID x 24.684 mm
CONE - outer bearing, second idler, 1-3/8 inch ID (35 MM)
1шт.
15
R32217
ROLLER BEARING,50 mm ID x 21.5 mm
CONE - outer bearing, second idler, 1-31/32 inch ID (50 MM)
1шт.
16
R32216
BEARING CUP,82 mm OD x 17 mm
CUP - inner bearing, second idler, 3-15/64 inch OD (82 MM)
1шт.
17
A151678
RING
- snap, spacer, 0.070 inch (1.78 MM)
1шт.
17
A151677
RING
- snap, spacer, 0.076 inch (1.90 MM)
1шт.
17
A151676
RING
- snap, spacer, 0.081 inch (2.04 MM)
1шт.
17
A151675
RING
- snap, spacer, 0.086 inch (2.17 MM)
1шт.
17
A152246
RING
- snap, spacer, 0.091 inch (2.31 MM)
1шт.
17
A152245
RING
- snap, spacer, 0.096 inch (2.44 MM)
1шт.
17
A152244
RING
- snap, spacer, 0.101 inch (2.57 MM)
1шт.
Выбрано товаров: 28
