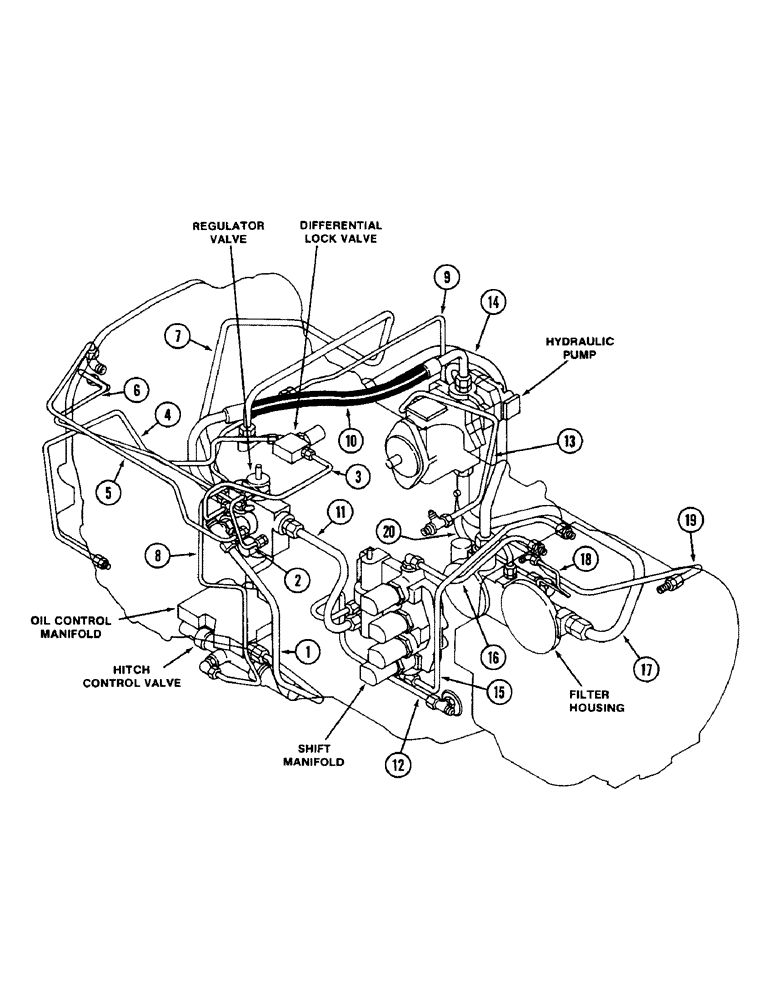

Запчасти Case IH 2096 (1-012) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Regular valve to manifold tube, Page 8-252

1шт.

2

PTO brake drain tube, Page 8-250

1шт.

3

Regulator valve to differential lock valve tube, Page 7-244

1шт.

4

Differential lock valve to transmission tube, Page 7-244

1шт.

5

Regulator valve to PTO clutch tube, Page 8-250

1шт.

6

Regulator valve to PTO brake tube, Page 8-250

1шт.

7

Manifold to lift cylinder tube, Page 8-328

1шт.

8

Right hitch valve pilot tube, Page 8-256

1шт.

9

Left hitch valve pilot tube, Page 8-256

1шт.

10

Pump to regulator valve hose, Page 8-250

1шт.

11

Regulator valve to shift manifold supply tube, Page 8-252

1шт.

12

Control valve to shift manifold tube, Page 8-252

1шт.

13

Hydraulic pump drain tube, Page 8-256

1шт.

14

Transmission charge pump tube, Page 8-260

1шт.

15

C1 clutch fill tube, Page 8-252

1шт.

16

C4 clutch fill tube, Page 8-252

1шт.

17

Filter housing to pump suction tube, Page 8-256

1шт.

18

Transmission countershaft lubrication tube, Page 8-260

1шт.

19

C1 clutch lubrication tube, Page 8-260

1шт.

20

Steering suction tube, Page 8-256

1шт.
