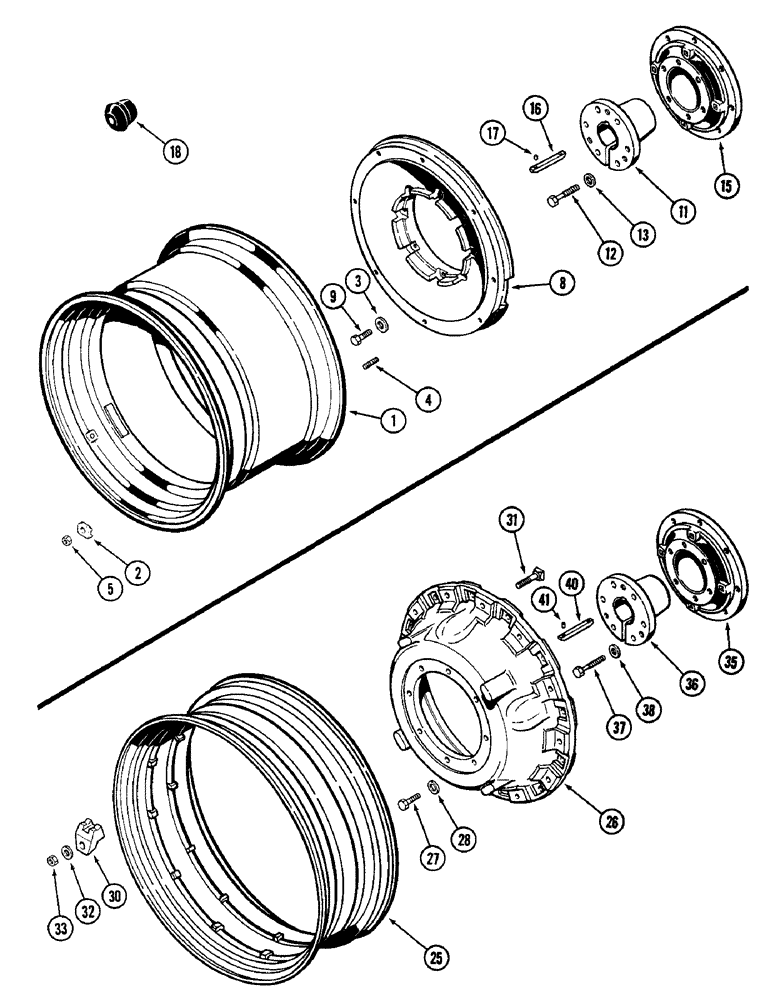

Запчасти Case IH 2096 (6-212) - CAST DUAL REAR WHEELS, WITH 34 INCH (864 MM) RIMS (06) - POWER TRAIN

1

A33460

RIM

- wheel (For 23.1 x 34 tire)

2шт.

2

A166501

CLAMP

- rim, wheel

16шт.

3

A64303

WASHER

- hardened

16шт.

4

A60047

STUD

- rim, wheel

16шт.

5

A27183

NUT

- rim, wheel

16шт.

8

A57686

WHEEL

- cast

2шт.

9

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch

16шт.

11

A59792

HUB

BUSHING - wheel hub

2шт.

12

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing, hub

2шт.

13

D31328

WASHER

- 1-5/8 inch (41 MM)

12шт.

15

A59791

HUB

- cast wheel

2шт.

16

A63219

KEY

- axle shaft

2шт.

17

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

18

A145052

PLUG

- rim

1шт.

25

A160972

RIM

- wheel (For 20.8 x 38 tire), 38 inch (965 mm)

2шт.

25

A160971

RIM

- wheel (For 18.4 x 38 tire), 38 inch (965 mm)

2шт.

26

A145464

WHEEL

- rear, cast, with 38 inch (965 mm) rims

2шт.

27

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, with 38 inch (965 mm) rims

16шт.

28

D31328

WASHER

- flat, wheel to hub, with 38 inch (965 mm) rims

16шт.

30

A57654

CLAMP

- double ramp, with 38 inch (965 mm) rims

24шт.

31

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, with 38 inch (965 mm) rims

24шт.

32

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp bolt, with 38 inch (965 mm) rims

24шт.

33

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy hex, 3/4 inch NC, with 38 inch (965 mm) rims

24шт.

35

A145321

HUB CAP

HUB - universal, used with 3-1/2 inch (89 MM) OD axle, with 38 inch (965 mm) rims

2шт.

35

A145322

HUB

- universal, used with 3-7/8 inch (98 MM) OD axle, with 38 inch (965 mm) rims

2шт.

36

A59792

HUB

BUSHING - wheel hub, used with 3-1/2 inch (89 MM) OD axle, with 38 inch (965 mm) rims

2шт.

36

A63805

BUSHING

- wheel hub, used with 3-7/8 inch (89 MM) OD axle, with 38 inch (965 mm) rims

2шт.

37

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing, hub, with 38 inch (965 mm) rims

12шт.

38

D31328

WASHER

- bushing bolt, with 38 inch (965 mm) rims

12шт.

40

A63219

KEY

- axle shaft, with 38 inch (965 mm) rims

2шт.

41

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , with 38 inch (965 mm) rims 1/4" x 1/2", Slotted

2шт.
