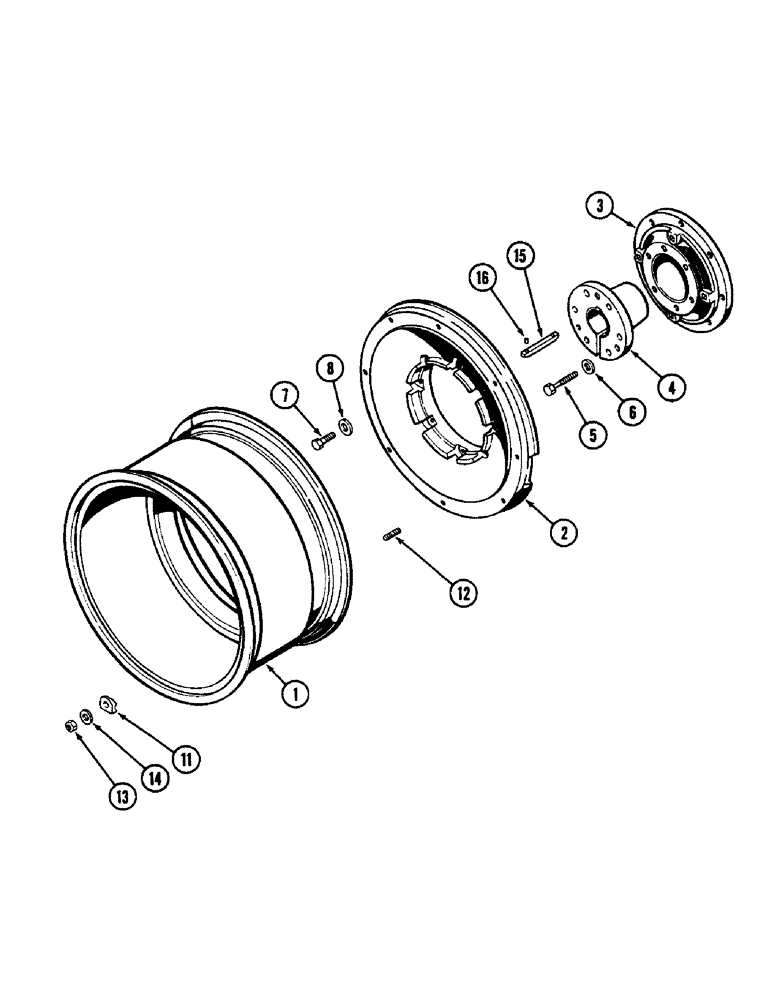

Запчасти Case IH 2096 (6-204) - REAR WHEELS, WITH 30 INCH (762 MM) RIMS (06) - POWER TRAIN

1

A33176

RIM

- wheel (Takes 23.1 x 30 tire)

2шт.

2

A33175

WHEEL

- rear, universal hub

2шт.

3

A59791

HUB

- universal, used with 3-1/2 inch (89 MM) OD axle

2шт.

3

A63804

HUB

- universal, used with 3-7/8 inch (98 MM) OD axle

2шт.

4

A59792

HUB

BUSHING - hub, rear wheel, used with 3-1/2 inch (89 MM) OD axle

2шт.

4

A63805

BUSHING

- rear wheel hub, used with 3-7/8 inch (98 MM) OD axle

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

6

D31328

WASHER

- 1-5/8 inch (41 MM)

12шт.

7

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch

16шт.

8

A64303

WASHER

- hardened

16шт.

11

A166501

CLAMP

-, Serial Range: rim-wheel

12шт.

12

A60047

STUD

- 5/8 NC x 2-7/16 inch

12шт.

13

A27183

NUT

- hex special, 5/8 inch NC

12шт.

14

A64303

WASHER

- hardened

16шт.

15

A63219

KEY

-, Serial Range: bushing-axle

2шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
