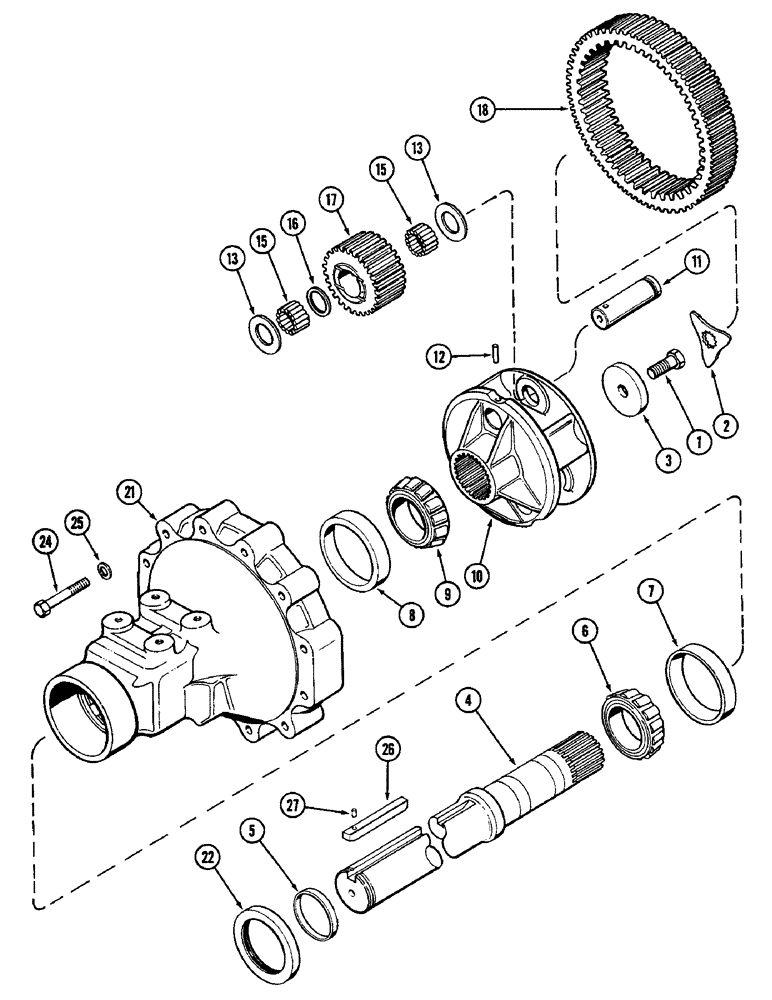

Запчасти Case IH 2096 (6-200) - REAR AXLE, HOUSING AND PLANETARY GEARS, 120 INCH (3048 MM) LONG AXLE, 3-1/2 INCH (89 MM) DIAMETER, (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch (Grade 8)

2шт.

2

A63221

PLATE

- lock, bearing

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A155225

SHAFT

- rear axle, with identification groove, 44-9/16 inch (1132 MM), Includes: Ref. 5

2шт.

5

A67368

RING

- wear, outer oil seal

1шт.

6

A34340

ROLLER BEARING

CONE - bearing, outer, 3-11/32 inch ID (85 MM)

2шт.

7

A34343

BEARING CUP

CUP - bearing, outer, 5-57/64 inch OD (150 MM)

2шт.

8

A50324

BEARING CUP

CUP - bearing, inner, 5-1/4 inch OD (133 MM)

2шт.

9

A34339

BEARING

CONE - bearing, inner, 3-1/4 inch ID (83 MM)

2шт.

10

A168153

CARRIER

- planetary gear

2шт.

11

A168244

PIN,41.94mm OD x 138.2mm L

- planetary gear

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A67116

WASHER

- planetary pin roller, 3 x inch (76 MM)

12шт.

15

A47252

ROLLER BEARING

BEARING KIT - roller, planetary gear (Pack of 38)

1шт.

16

A67117

SPACER

- roller bearing separator, 2-13/64 inch (56 MM)

6шт.

17

A168175

GEAR

- planetary, rear axle

6шт.

18

A151934

GEAR

- planetary ring

2шт.

21

A168511

HOUSING

- rear axle

2шт.

22

A154957

OIL SEAL

- oil, rear axle

2шт.

24

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- 5/8 NC x 4-1/2 inch hex (Grade 8)

24шт.

25

A64303

WASHER

- 1-1/16 inch (27 MM)

24шт.

26

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: wheel-shaft

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
