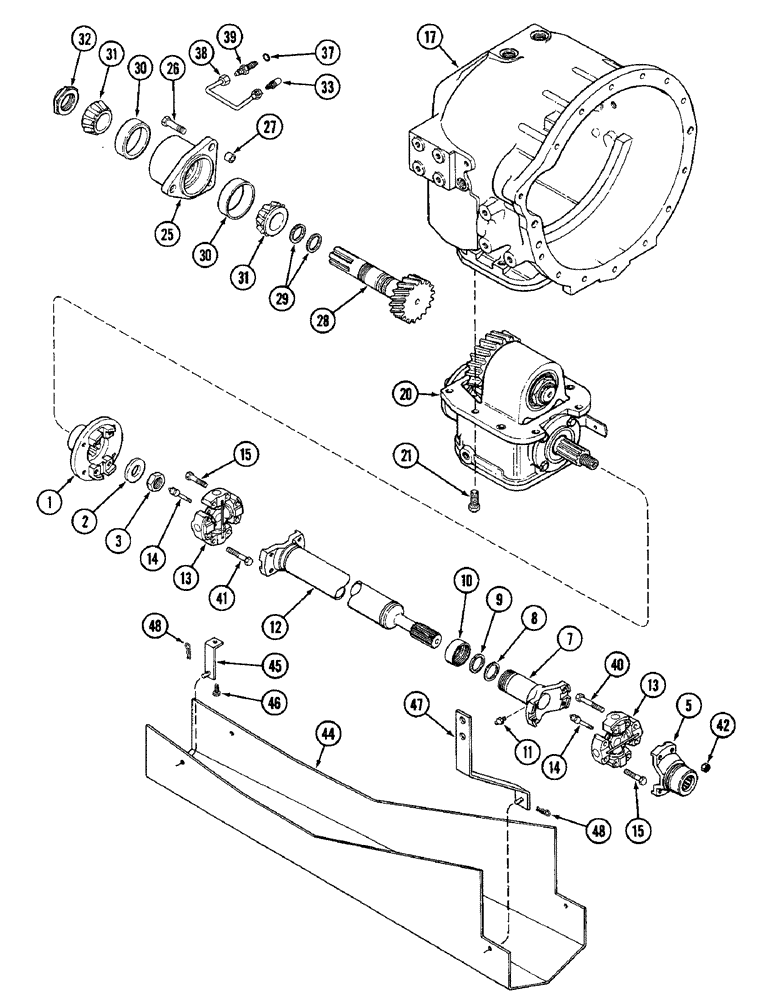

Запчасти Case IH 2096 (6-182) - POWER TRAIN, MFD TRACTORS (06) - POWER TRAIN

1

A156593

YOKE

- output shaft, brake

1шт.

2

A75138

WASHER

- retaining, yoke

1шт.

3

131-584

LOCK NUT,1 1/8"-12

NUT - hex lock, 1-1/8 inch NF

1шт.

5

REF

INSTRUCTION

YOKE - front axle (See page 5-128)

1шт.

A168482

SHAFT

ASSEMBLY - drive, Includes: Ref. 7 - 15

1шт.

7

A47519

YOKE

ASSEMBLY - slip, Includes: Ref. 8 - 11

1шт.

8

A47521

WASHER

- seal

1шт.

9

A18390

WASHER

- split felt

1шт.

10

A18388

CAP

- seal

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

12

A48921

TUBE

- shaft

1шт.

13

A45595

SPIDER ,U-JOINT

BEARING ASSEMBLY - drive shaft, Includes: Ref. 14

2шт.

14

A48953

FITTING

- lube, straight 1-5/8 x 1/4 inch PT

1шт.

15

A17298

BOLT,Hex, 3/8" x 1 11/16"

-, Serial Range: bearing-shaft

8шт.

17

REF

INSTRUCTION

HOUSING - clutch, see Figure 6-142

1шт.

20

REF

INSTRUCTION

GEARBOX - transfer, see Figure 6-184

1шт.

21

813-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, M14 x 35 MM (Carraro no. 20967)

8шт.

25

A168057

HOUSING

- support, input shaft

1шт.

26

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

Hex, M14 x 50, 8.8 (Carraro no. 20971) (Order 826-14060 bolt and 196-20 washer)

3шт.

27

A156567

PIN

RING - dowel (Carraro no. 97191)

2шт.

28

A168846

SHAFT

- input

1шт.

29

A156564

RING

- seal (Carraro no. 112999)

2шт.

30

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - input shaft

2шт.

31

D71240

ROLLER BEARING,1.75" ID x 3.5" OD x 1.1875"

CONE - input shaft

2шт.

32

A156565

NUT

- adjusting (Carraro no. 112997)

1шт.

33

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 1/4 tube 7/16-20 thread x 1/8 inch PT

1шт.

37

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 1 MM)

1шт.

38

A157297

TUBE

- countershaft lube, internal

1шт.

39

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 1/4 tube 7/16-20 inch thread

1шт.

40

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex, 3/8 NF x 2 inch

4шт.

41

28-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch

4шт.

42

129-524

NUT,3/8"-24, G8

4шт.

A181131

SHIELD

KIT - driveline, MFD, Includes: Ref. 44 - 48

1шт.

44

A181257

GUARD

SHIELD - driveline

1шт.

45

A180770

SUPPORT

- rear, shield

2шт.

46

814-8014

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, M8 x 14 MM

2шт.

47

A180772

SUPPORT

- front, shield

2шт.

48

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair type, 2-25/32 inch internal

4шт.
