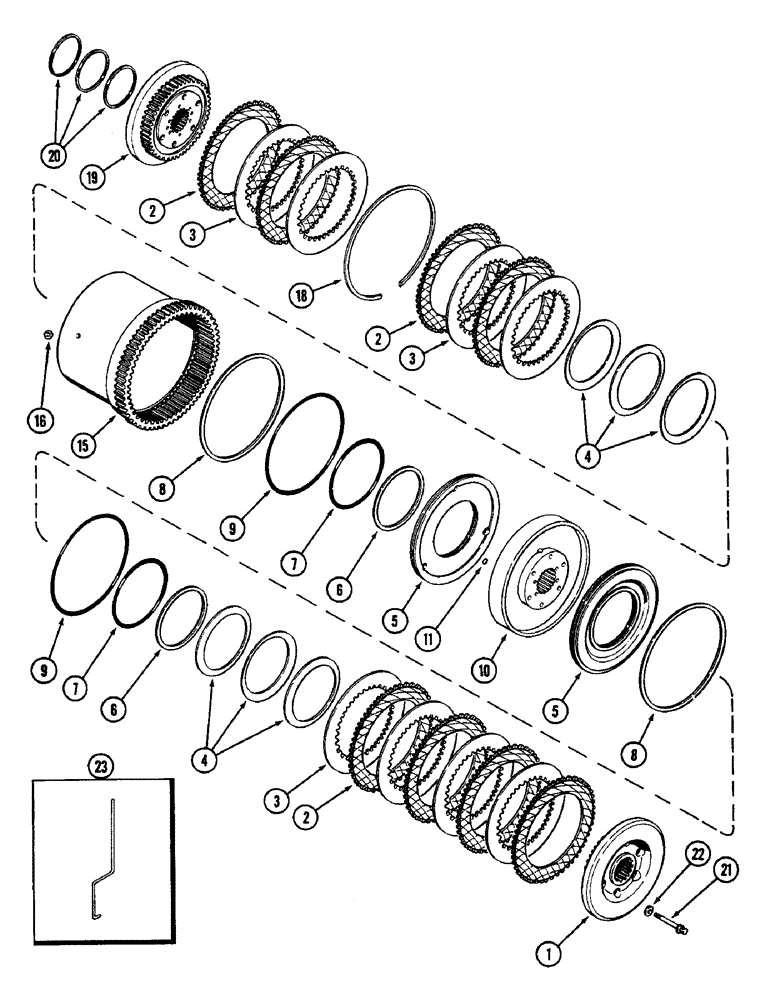

Запчасти Case IH 2096 (6-172) - POWER SHIFT TRANSMISSION, (C2) AND (C3) CLUTCHES, PRIOR TO TRANSMISSION SERIAL NUMBER 16264559 (06) - POWER TRAIN

1

A153336

HUB

- (C2) Clutch

1шт.

2

A61981

PLATE

- clutch, sintered

8шт.

3

A155461

PLATE

- clutch

8шт.

4

A58094

SPRING

- clutch return

6шт.

5

A146670

PISTON

- (C2) and (C3)

2шт.

6

A146683

RING

- seal, internal, 4-15/32 inch ID (114 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

7

A150754

O-RING,4.718" ID x 0.107"

RING - internal seal, 11/16 inch ID (119 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

8

A146682

RING

- seal, external, 8-9/32 inch OD (210 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

9

A150753

O-RING,7.84" ID x 0.107"

RING - external seal, 7-7/8 inch OD (200 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

10

A150105

CARRIER

- (C2) and (C3)

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 7/16 inch (11 MM)

4шт.

Part of Seal Kit, P/N A46286

1шт.

15

A63101

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, clutch retaining ring gear

1шт.

19

A155804

HUB

- (C3) Clutch

1шт.

20

A58384

RING

- piston, oil distributor

3шт.

21

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 12 point, 1/2 NC x 3-1/4 inch

6шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- hardened

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Ref. 6, 7, 8, 9 and 11 in this figure and parts in Figure 6- 166

1шт.
