Запчасти Case IH 2094 (6-164) - POWER SHIFT TRANSMISSION, POWER SHIFT LINKAGE (06) - POWER TRAIN

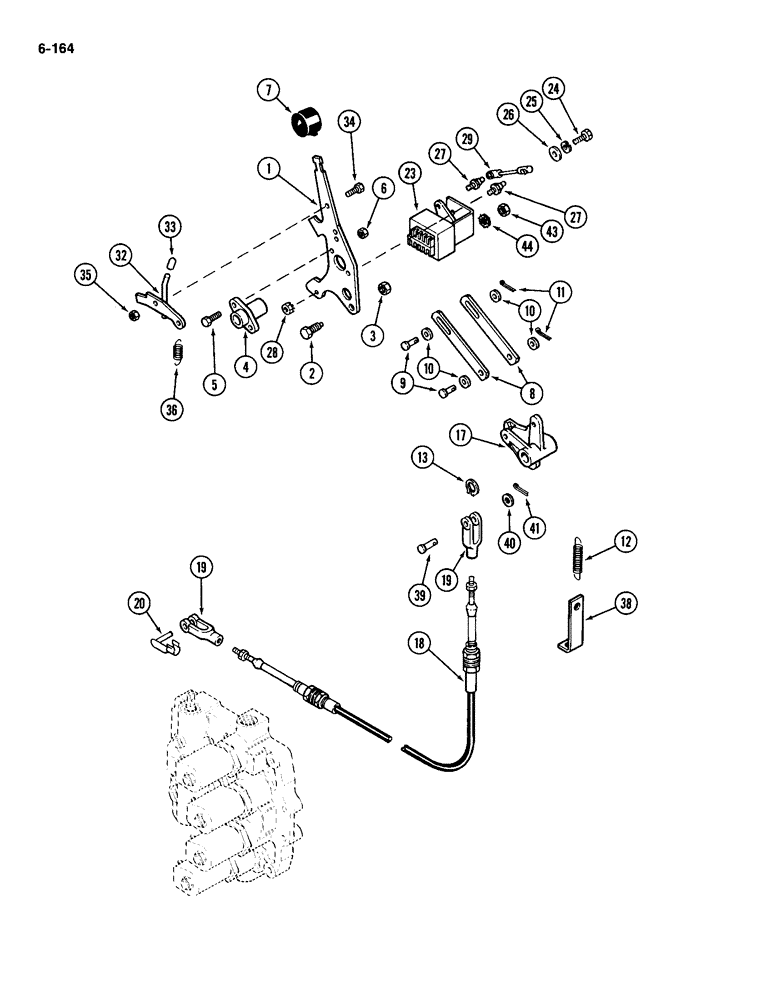

Схема запчастей Case IH 2094 - (6-164) - POWER SHIFT TRANSMISSION, POWER SHIFT LINKAGE (06) - POWER TRAIN
1
26
4
7
44
24
12
23
43
8
25
5
29
28
33
9
27
39
13
41
32
19
40
17
36
18
19
10
3
11
34
6
2
38
35
27
10
20

Артикул

Название

Примечание

Количество

1

A176861

LEVER

- power shift range (Replaces A165025)

1шт.

2

A161797

SCREW,3/8" - 16, Gr 8

- lever stop

1шт.

3

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex jam, 3/8 inch NC

1шт.

4

A160860

BUSHING

BEARING - control lever, Includes: Ref. 5

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

7

A167955

KNOB

- shift lever (Red)(Order A177441)

1шт.

8

A177185

LINK

- lever return (Replaces A149879)

2шт.

Part of Range Interlock System, P/N A180125

1шт.

9

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch

1шт.

10

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm), Includes: Ref. 11

3шт.

11

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

12

A164415

SPRING

- lever return (Replaces A163012)

1шт.

Part of Range Interlock System, P/N A180125

1шт.

13

D32101

SNAP RING,#62, Ext

Ring, Snap, , lever #62, Ext

1шт.

17

A176545

LEVER

- reverse interlock (Replaces A167223)

1шт.

18

A160981

CABLE

- reverse interlock

1шт.

19

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - cable , 1/4 inch

2шт.

20

A163098

PIN

- cable spring (If equipped)

2шт.

23

A164974

SWITCH

ASSEMBLY - power shift (Order A180201)

1шт.

24

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex self tapping, 1/4 x 1/2 inch

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

27

A161786

STUD

- ball joint

2шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- Keps, No. 10-32

1шт.

29

A161787

HOUSING

ROD ASSEMBLY - ball joint

1шт.

32

A176859

LATCH

- range lever

1шт.

33

A177232

CAP

- latch

1шт.

34

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

35

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

36

A163012

SPRING

- lock retaining

1шт.

38

A146252

BRACKET

- retaining

1шт.

Part of Range Interlock System, P/N A180125

1шт.

39

A8823

PIN,6.29mm OD x 26.99mm L

- clevis

1шт.

Part of Range Interlock System, P/N A180125

1шт.

40

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

Part of Range Interlock System, P/N A180125

1шт.

41

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

Part of Range Interlock System, P/N A180125

1шт.

A180125

KIT

- range interlock, Includes: Refs. 8, 12, 38, 39, 40, and 41

1шт.

Выбрано товаров: 40
