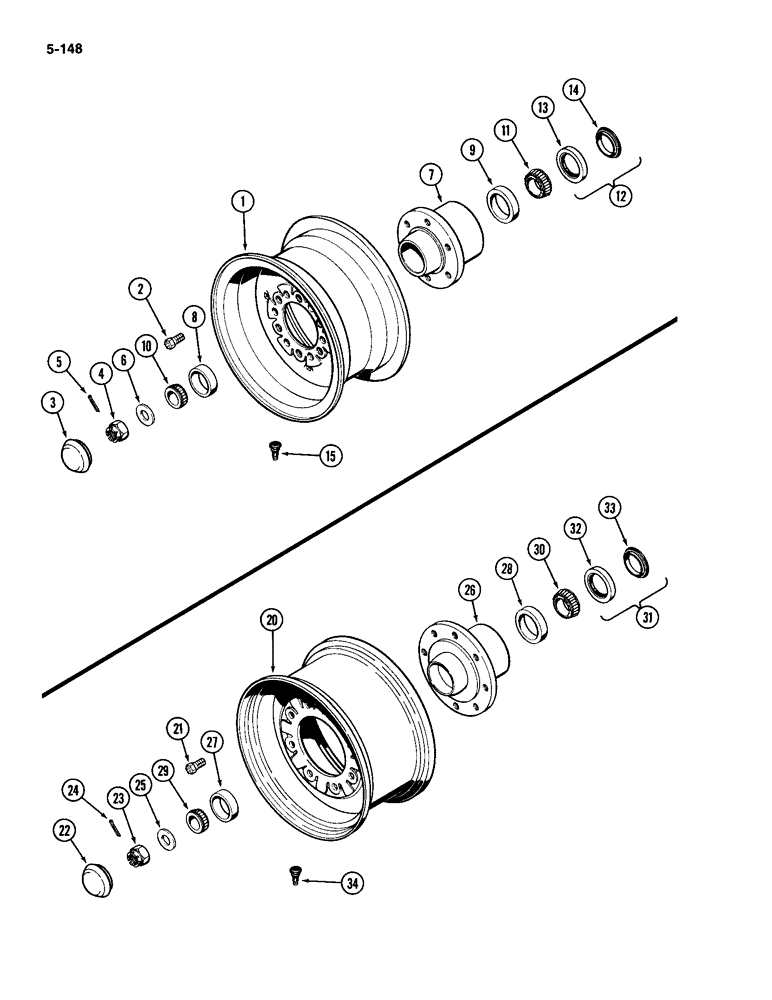

Запчасти Case IH 2094 (5-148) - FRONT WHEEL AND HUB, 6 BOLT HUB (05) - STEERING

1

A60405

WHEEL

- front (for 10.00 x 16 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT - wheel to hub, 9/16-18 x 1-3/32 inch

12шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle, hex slotted, 1-1/8 inch NF

2шт.

5

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut

2шт.

7

A57336

HUB

ASSEMBLY - wheel, Includes: Refs. 8 and 9

2шт.

8

A27631

CUP

- bearing, outer, 2-7/8 inch O.D. (73 mm)

1шт.

9

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch O.D. (83 mm)

1шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, 1-3/8 inch ID (35 mm)

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (45 mm)

2шт.

12

A57250

OIL SEAL

OIL SEAL ASSEMBLY, Includes: Refs. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - outer (Reference No. A47247)

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - inner (Reference No. A57246)

1шт.

15

A38261

VALVE

- tubeless tire

2шт.

20

A62132

WHEEL

- front (for 14 L x 16.1 tire), 8 bolt hub

2шт.

20

A61570

WHEEL

- front (for 11.00 x 16 tire), 8 bolt hub

2шт.

21

A62567

WHEEL BOLT

BOLT - wheel to hub, hex special, 5/8 NF x 2 inch, 8 bolt hub

16шт.

22

A29425

CAP

- hub, 8 bolt

2шт.

23

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle, hex slotted, 1-1/8 inch NF, 8 bolt hub

2шт.

24

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), , 8 bolt hub 3/16" x 2"

2шт.

25

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut, 8 bolt hub

2шт.

26

A51157

HUB

- wheel, 8 bolt

2шт.

27

A27631

CUP

- bearing, outer, 2-7/8 inch O.D. (73 mm), 8 bolt hub

2шт.

28

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch O.D. (86 mm), 8 bolt hub

2шт.

29

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, 1-3/8 inch ID (35 mm), 8 bolt hub

2шт.

30

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (45 mm), 8 bolt hub

2шт.

31

A57250

OIL SEAL

OIL SEAL ASSEMBLY, 8 bolt hub, Includes: Refs. 32 - 34

2шт.

32

NSS

NOT SOLD SEPARAT

SEAL - outer (Reference No. A57247), 8 bolt hub

2шт.

33

NSS

NOT SOLD SEPARAT

SEAL - inner (Reference No. A57246), 8 bolt hub

1шт.

34

A38261

VALVE

- tubeless tire, 8 bolt hub

2шт.
