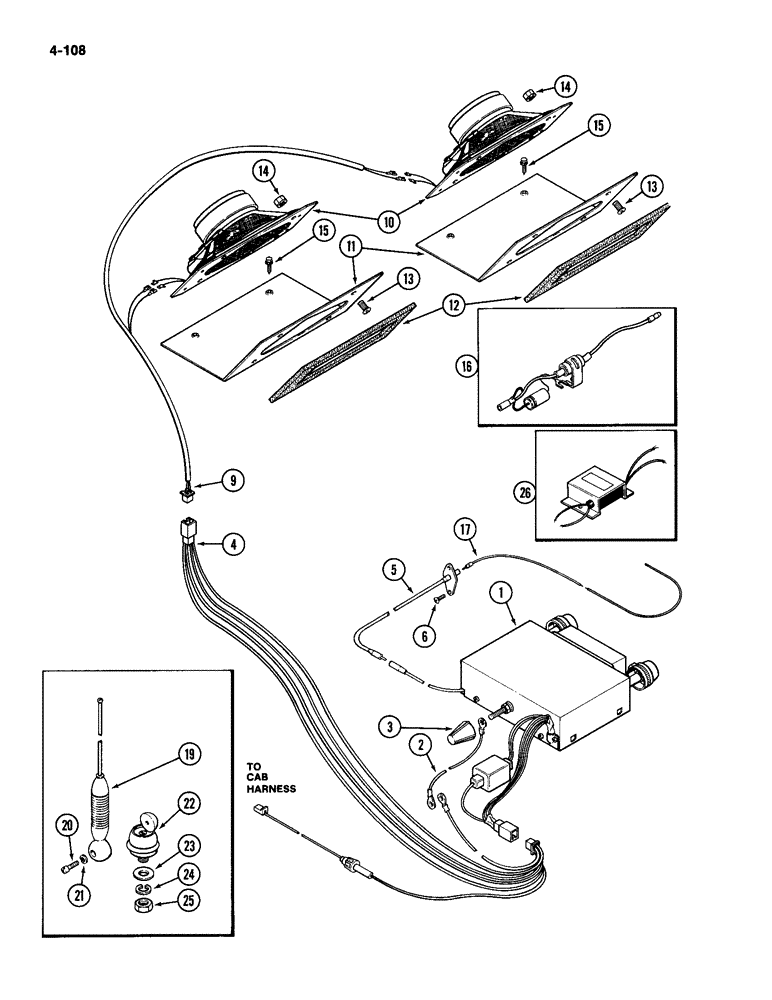

Запчасти Case IH 2094 (4-108) - HEADLINER MOUNTED RADIO AND SPEAKERS, FENDER MOUNTED RADIO (04) - ELECTRICAL SYSTEMS

1

A167180

RADIO

KIT - AM

1шт.

1

A167181

RADIO

KIT - AM-FM stereo

1шт.

1

A167182

RADIO

KIT - AM-FM with eight track tape player

1шт.

1

A167183

RADIO

KIT - AM-FM wtih cassette tape player, Includes: Refs. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - radio ground (Order kit)

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - retaining (Order kit)

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS - radio wire (Order kit)

1шт.

5

F64799

CABLE

- antenna

1шт.

6

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - round head, No. 10-16 x 1/2 inch

2шт.

9

F64727

HARNESS

- speaker lead

1шт.

10

F66124

HARNESS

SPEAKER - radio (Replaces F64847)

2.шт.

11

F64667

PLATE

- speaker

2шт.

12

F64793

SEAL

GASKET - speaker sealing

2шт.

13

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10-24 x 3/4 inch

8шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

15

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self tapping, No. 10

4шт.

16

F64184

CAPACITOR

SUPPRESSOR - noise (Mounted on blower motor)

1шт.

17

F64182

CABLE

- antenna

1шт.

A177631

ANTENNA

- whip type (Machinery Item), Includes: Refs. 19 - 22

1шт.

19

A177752

ANTENNA

- radio (Order A177631)

1шт.

20

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- slotted head, No. 10-32 x 5/8 inch

1шт.

21

192-149

WASHER

- lock, 3/16

1шт.

22

A177751

BASE - antenna

1шт.

23

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 7/64") (13 x 27 x 3 mm) 1/2", SAE

1шт.

24

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2 inch

1шт.

25

129-125

NUT,1/2"-20, G5

1шт.

26

A180120

FILTER

- noise

1шт.

A164225

RADIO

- AM-FM, fender mounted with antenna (Not Shown)

1шт.
