Запчасти Case IH 2094 (4-104) - FLASHER AND FLOOD LAMP KIT, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

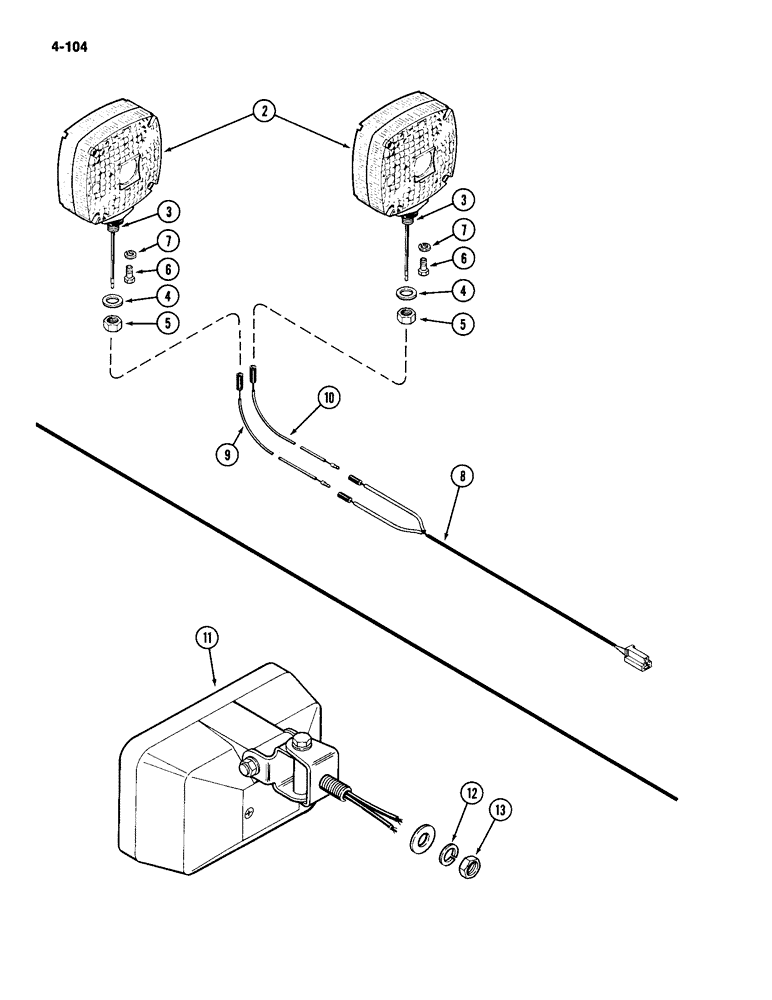

Схема запчастей Case IH 2094 - (4-104) - FLASHER AND FLOOD LAMP KIT, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS
3
8
2
13
5
6
4
3
10
5
11
7
12
7
6
4
9

Артикул

Название

Примечание

Количество

A176163

KIT - light (Machinery Item), Includes: Refs. 2 - 13

1шт.

2

REF

INSTRUCTION

LIGHT - flasher warning, See Figure 4-96

2шт.

3

A45118

STUD

- light mounting

2шт.

4

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 mm)

2шт.

5

129-125

NUT,1/2"-20, G5

2шт.

6

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

A169888

HARNESS

- flasher

1шт.

9

A160292

ELECTRICAL WIRE

WIRE - flasher, right

1шт.

10

A160293

ELECTRICAL WIRE

WIRE - flasher, left

1шт.

11

A165347

LAMP

- flood, Order A177347, See Figure 4-98)

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

Выбрано товаров: 13
