Запчасти Case IH 2094 (4-102) - FLOOD LAMP, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

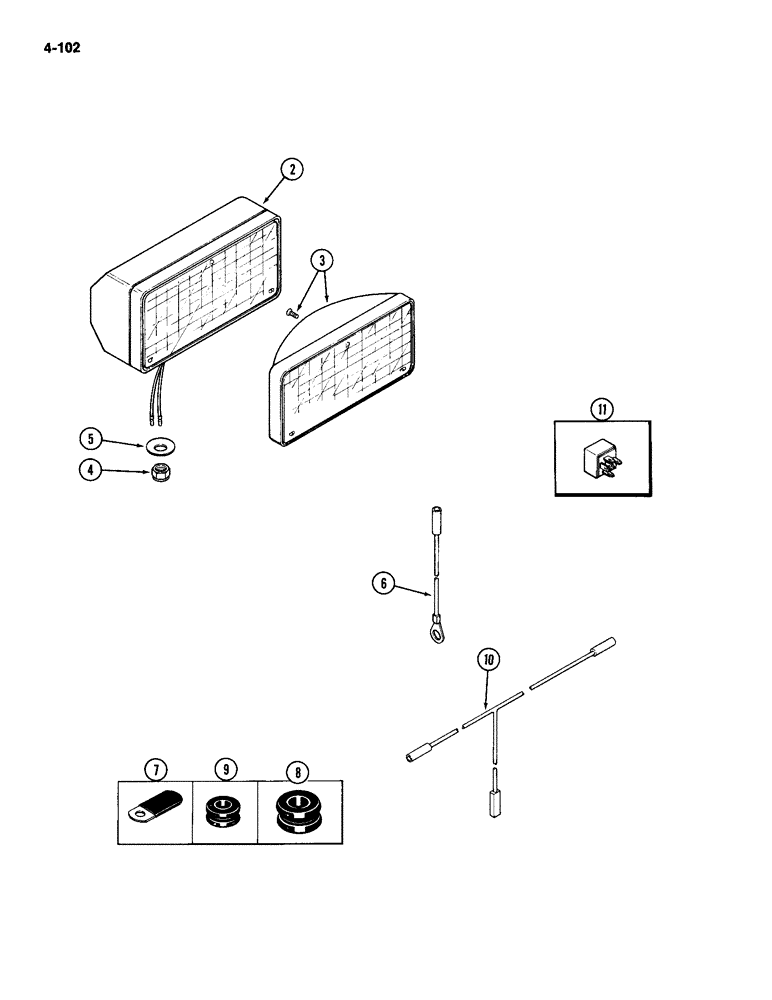

Схема запчастей Case IH 2094 - (4-102) - FLOOD LAMP, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS
2
9
4
7
6
8
3
10
11
5

Артикул

Название

Примечание

Количество

A165459

ATTACHMENT

- flood lamp, white, Includes: Refs. 2 - 11

1шт.

2

A165192

LAMP

ASSEMBLY - flood, Includes: Ref. 3

1шт.

3

A48265

LAMP

- seal beam (Includes mounting screws)

1шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

5

D37049

WASHER

- pivot

1шт.

6

A147344

ELECTRICAL WIRE

WIRE - ground, 1/2 inch eyelet (13 mm)

1шт.

6

A147343

ELECTRICAL WIRE

WIRE - ground, 3/8 inch eyelet (10 mm)

1шт.

7

A22880

CLIP

CLAMP - wire

1шт.

8

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- wire, 1/2 inch ID (13 mm)

1шт.

9

L13765

GROMMET

- wire, 3.8 inch ID (10 mm)

1шт.

10

A142935

HARNESS

- front lamp

1шт.

11

A147176

RELAY

- lamp

1шт.

Выбрано товаров: 12
