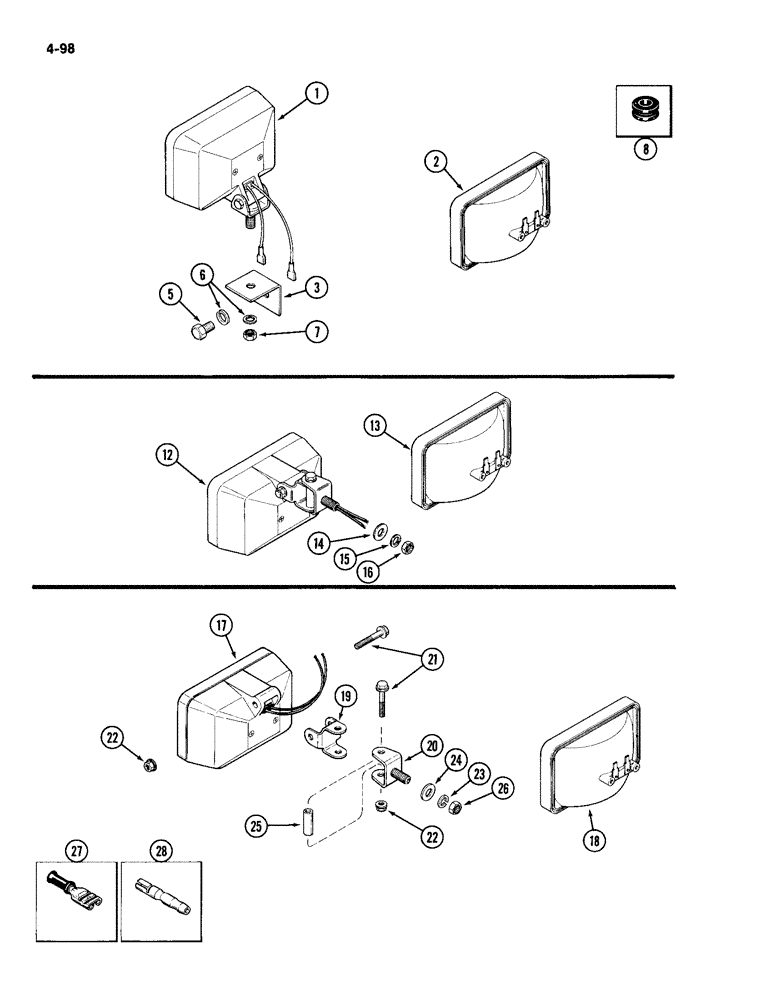

Запчасти Case IH 2094 (4-098) - FLOOD LAMP ATTACHMENTS, UPPER REAR (04) - ELECTRICAL SYSTEMS

A166652

LAMP

ATTACHMENTS - upper flood lamp, 4 Post ROPS (Set of 2) (Order components), Includes: Refs. 1 - 6

1шт.

1

A165347

LAMP

ASSEMBLY - flood (Order A177347)

1шт.

2

A48265

LAMP

BULB - sealed beam

1шт.

3

A166585

BRACKET

- mounting

1шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

8

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- flood lamp

1шт.

12

A165065

LAMP

ASSEMBLY - upper flood lamp, cab (Order A177347), Includes: Refs. 13 - 16

1шт.

13

A48265

LAMP

BULB - sealed beam (Includes screws)

1шт.

14

195-533

WASHER,1/2", SAE

(17/32 x 1-1/6 x 3/32") (14 x 27 x 2 mm) 1/2", SAE

1шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

A177347

LAMP

KIT, Includes: Refs. 17 - 28

1шт.

17

A52214

LAMP

ASSEMBLY - flood (Order A177347), Includes: Ref. 18

1шт.

18

A48265

LAMP

BULB - sealed beam

1шт.

19

A52215

SUPPORT

BRACKET - adjusting

1шт.

20

A52216

SUPPORT

BRACKET - stud

1шт.

21

A52217

BOLT

- washer head, 5/16 NC x 2 inch

2шт.

22

A52218

NUT

- flange, 5/16 inch NC

2шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

25

A52219

SPACER

1шт.

26

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

27

A177332

SPADE TERMINAL,Female

TERMINAL - blade (If required) Female

2шт.

28

A52220

TERMINAL CONNECTOR,Male

TERMINAL - bullet (If required) Male

2шт.
