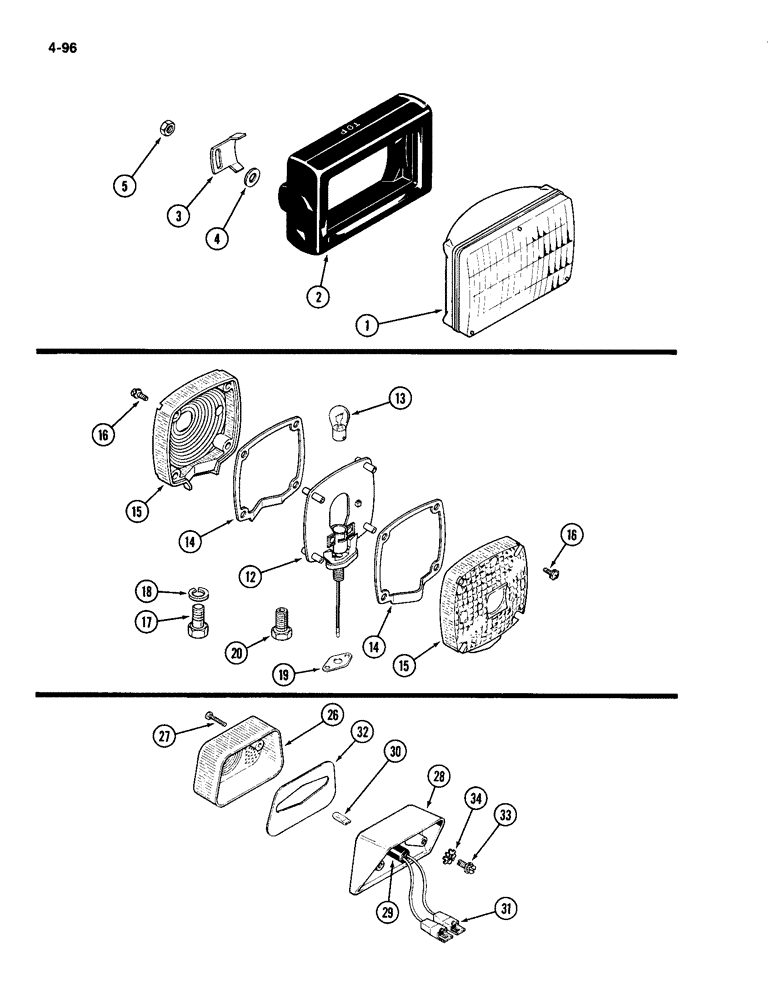

Запчасти Case IH 2094 (4-096) - HEAD LIGHTS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A139458
LAMP
LIGHT - head, sealed unit (No. 4652)
2шт.
2
A146354
MOUNTING PARTS
MOUNT - rubber
2шт.
3
A146355
CLAMP
CLIP - mounting
4шт.
4
195-518
WASHER,1/4", SAE
- 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)
4шт.
5
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
4шт.
6
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
A44201
LIGHT ASSY.
KIT - replacements, flasher light, Includes: Refs. 12 - 16
2шт.
12
NSS
NOT SOLD SEPARAT
BODY - lamp, flasher light
1шт.
13
A41264
BULB,#1156, 12V
Lamp, Flasher light #1156, 12V
1шт.
14
A43731
GASKET
- lens, flasher light
2шт.
A44202
KIT
- lens replacement, flasher light
1шт.
15
NSS
NOT SOLD SEPARAT
LENS, flasher light
2шт.
16
187-1083
SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"
SCREW - round head Phillips, No. 8-32 x 3/4 inch, flasher light
8шт.
17
113-38
BOLT,Hex, 1/4" - 20 x 5/8", Gr 2
- hex, 1/4 NC x 5/8 inch, flasher light
2шт.
18
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, , Flasher light, Includes: Refs. 19 and 20 1/4"
2шт.
19
F63435
GASKET
- lamp base, flasher light
1шт.
20
NSS
NOT SOLD SEPARAT
STUD - (Not used this application), flasher light
1шт.
A143925
LAMP
TAIL LIGHT ASSEMBLY, Includes: Refs. 26 - 32
2шт.
26
A47056
LENS
- red, tail light
1шт.
27
187-829
SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"
SCREW - pan head slotted, No. 8-18 x 1 inch, tail light
2шт.
28
A47052
BASE
- lamp, tail light
1шт.
29
A47054
SOCKET/RECEPTACLE
SOCKET ASSEMBLY - (Included terminal), tail light
1шт.
30
D71346
TAIL LAMP,12V
BULB - lamp (No. 168), tail light
1шт.
31
223-166
CONNECTOR, ELEC
CONNECTOR - body, tail light
2шт.
32
A47055
GASKET
- taillight
1шт.
33
187-1073
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"
SCREW - hex self-tapping, 1/4 x 5/8 inch, tail light
4шт.
34
193-73
LOCK WASHER,Ext-Int Tooth, 1/4"
WASHER - internal, external, shakeproof, 1/4 inch, tail light
4шт.
Выбрано товаров: 27
